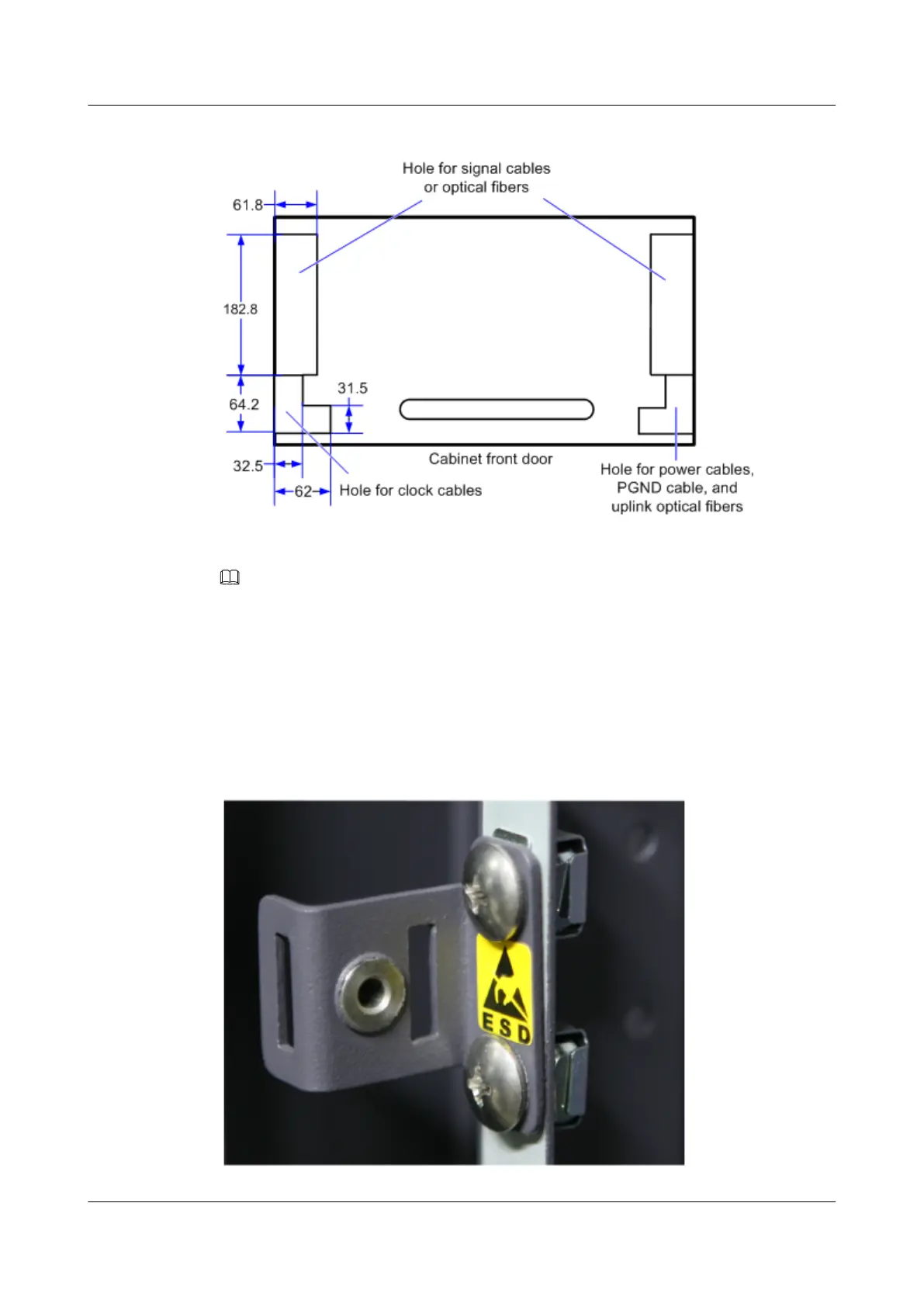

Figure 1-10 Cable holes at the bottom of the cabinet (top view)
NOTE
The unit for figures in this topic is mm, unless otherwise stated.
1.1.6 ESD Jack
The ESD jack of the N63E-22 cabinet is on the middle of the left mounting angle, which is
used to connect the ESD wrist strap to prevent device damage caused by electrostatic
discharge.
The position of the N63E-22 cabinet ESD jack, as shown in Figure 1-11.
Figure 1-11 ESD jack of the N63E-22 cabinet
SmartAX MA5600T/MA5603T/MA5608T Multi-service
Access Module
Hardware Description
1 Cabinet
