3.17.3 H802OPGD Board Description
The H802OPGD board is a 48-port GE/FE Optical interface board, providing Ethernet optical
access and cascading. It supports up to 48 channels of GE/FE P2P access services.
Functional Specifications
Please refer to "P2P Interface Board Comparison".
Technical Specifications
Please refer to "Power Consumption and Maximum Frame Size of Boards".
Working Principle

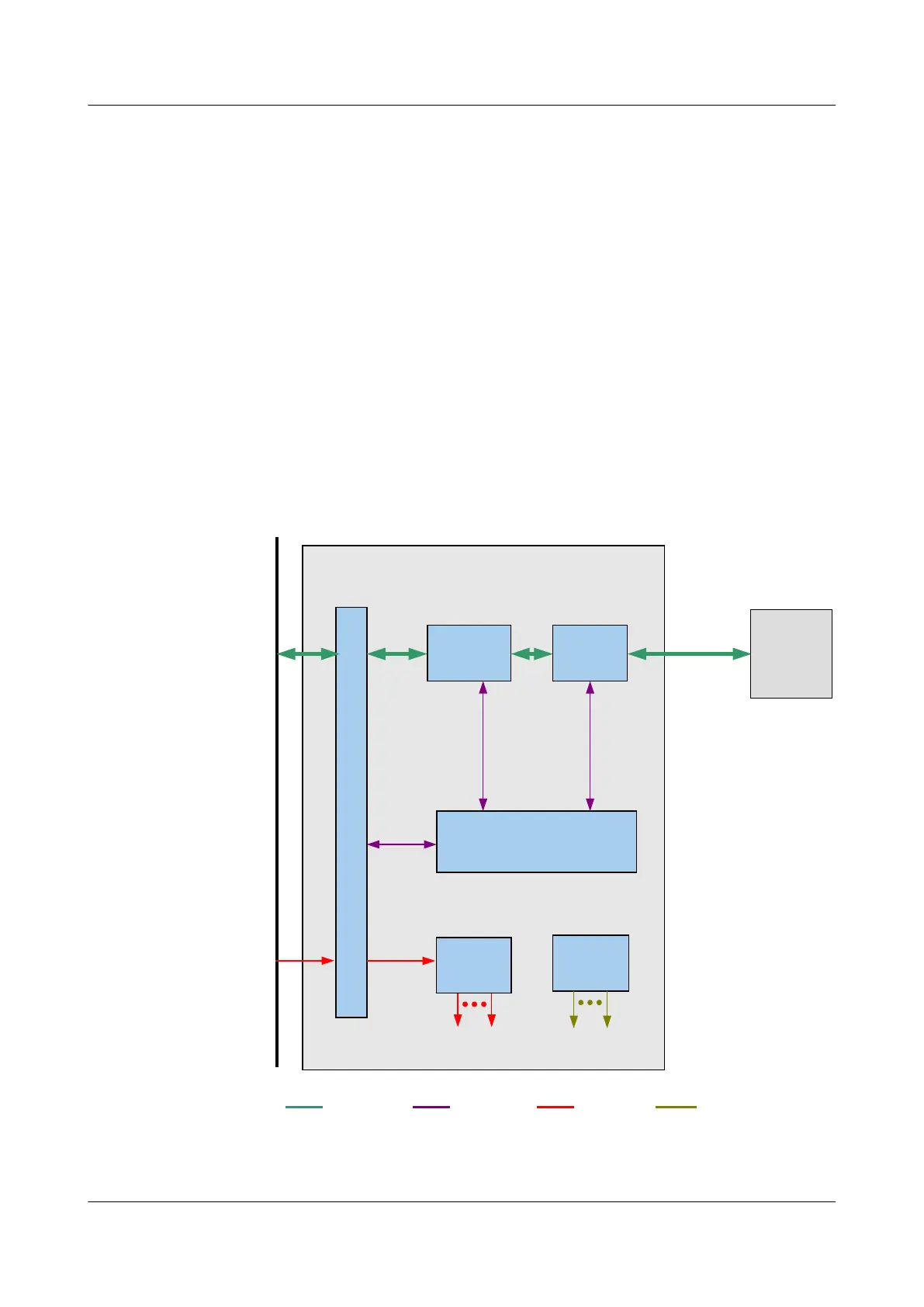

Figure 3-77 Working principle of the H802OPGD board
B
a
c
k
p
l
a
n
e
C
o
n
n
e
c
t
o
r
Control
board
-48V
DC
power
Switching
module
Backplane User side
10GE
Control board
Interface
module
Service
signal
Control
signal
Power
signal
Clock
signal
Power
module
Voltage required
by the board
Clock
module
Clock required
by the board
H802OPGD
48*GE/FE
Optical port
ONU
SmartAX MA5600T/MA5603T/MA5608T Multi-service
Access Module
Hardware Description
3 Board
Issue 24 (2018-07-30) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
408
