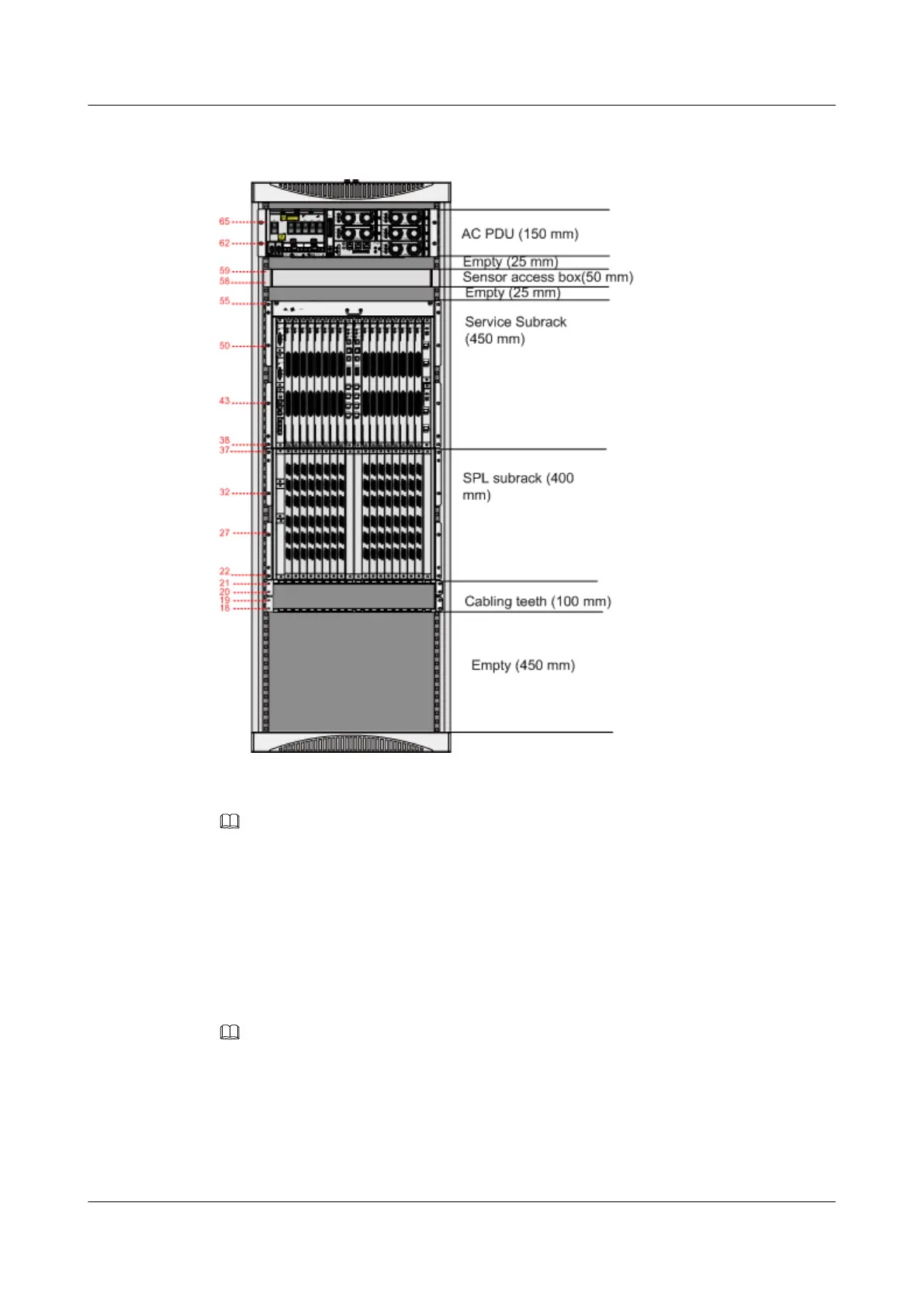

Figure 1-31 Configuration of the N66E-18 cabinet installed with one ETSI subrack and one
SPL subrack
NOTE
l In Figure 1-31, the filled holes are for floating nuts to fasten subracks.
l Two power cables are configured for the ETSI subrack by default.
l Cabinet installation against the wall or back-to-back cabinet installation is not supported.
1.2.4 Configuration (MA5603T)
The N66E-18 dual-standard cabinet uses AC or DC power supply. This topic describes the
configurations of MA5603T in the cabinet.
NOTE
the MA5603T chassis is installed on the IEC side of the cabinet.
DC-powered Cabinet with Two MA5603T Chassis
Figure 1-32 shows the configuration of the N66E-18 cabinet installed with two MA5603T
chassis.
SmartAX MA5600T/MA5603T/MA5608T Multi-service
Access Module
Hardware Description
1 Cabinet
Issue 24 (2018-07-30) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
39
