TIBURON(GK) > 2003 > G 2.7 V6 DOHC > Suspension System > Rear Suspension System > Rear Strut
Assembly > Repair procedures, TIBURON(GK) > 2003 > G 2.7 V6 DOHC > Suspension System > Rear
Suspension System > Rear Strut Assembly > Repair procedures

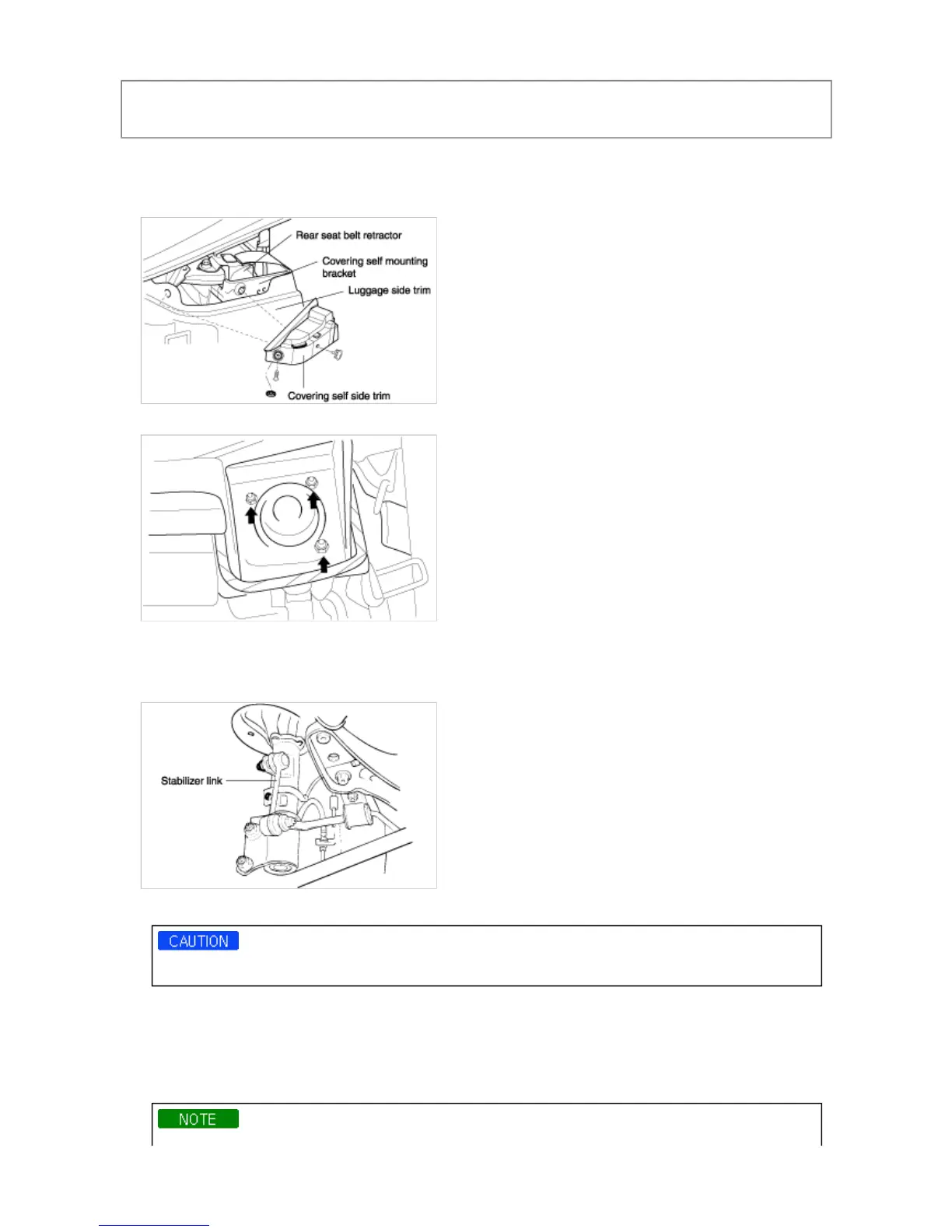

REMOVAL
1. Remove the covering self side trim, rear seat belt retractor, luggage side trim and covering self mounting
bracket.
2. Remove the rear strut upper mounting nuts (3).
3. Remove the wheel and tire.
4. Disconnect the brake hose and wheel speed sensor wiring from the rear strut.
5. Remove the stabilizer bar link.
6. Remove the strut and carrier mounting bolts(2).
Be careful not to drop the rear strut.
7. Remove the rear strut assembly.
DISASSEMBLY
1. Using the special tools (09546-
26000 or J38402), compress the coil spring until there is only a little tension on
the strut.
