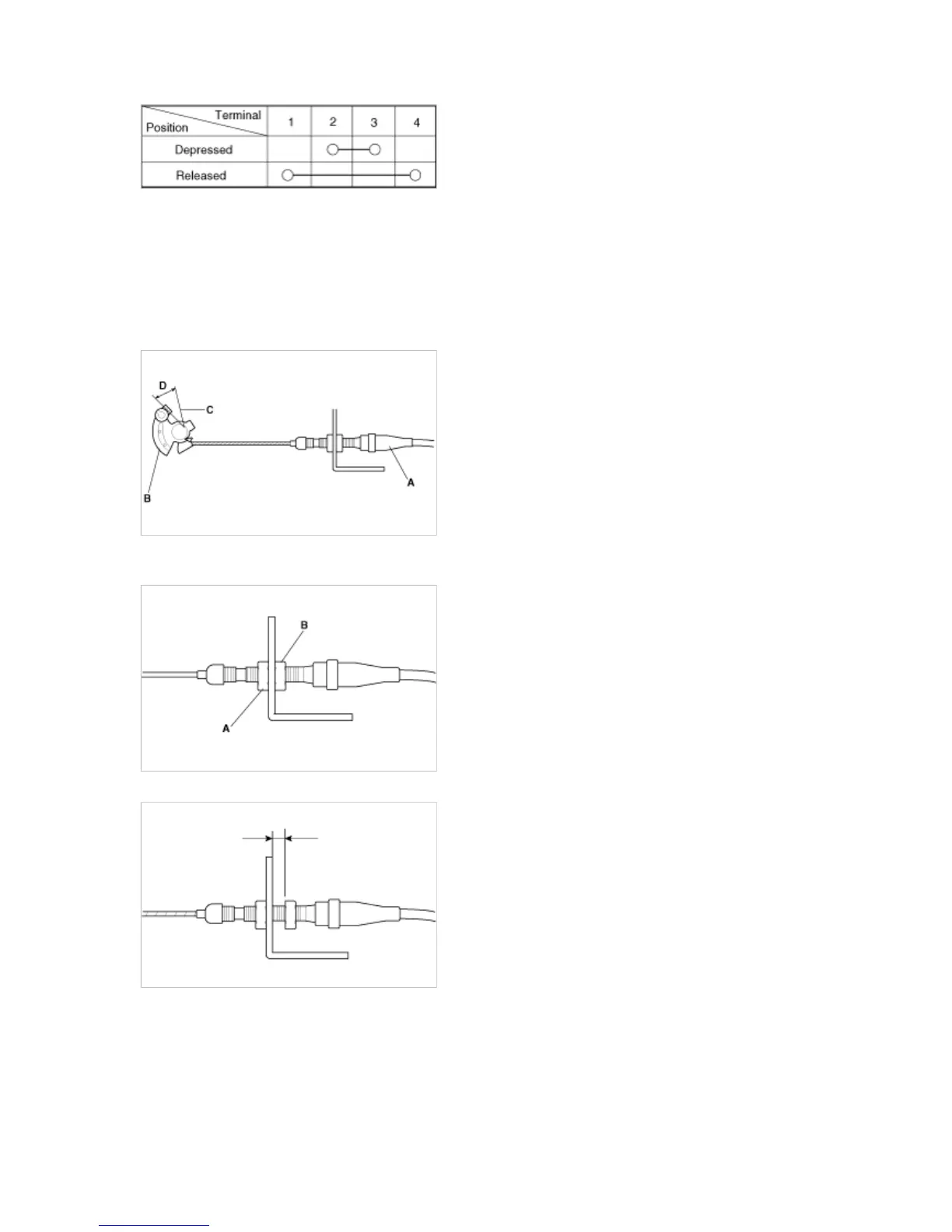

3. Check for continuity between the terminals according to the table.
4. If necessary, replace the switch or adjust the pedal height.
1. Check that the actuator cable (A) moves smoothly with no binding or sticking.
2. position, M/T in neutral) until the radiator fan comes on, then let it idle.
3. Measure the amount of movement of the output linkage (B) until the engine speed starts to increase.
At first, the output linkage should be located at the fully closed position (C).
4. If the free play is not within specs, move the cable to the point where the engine speed starts to increase, and
tighten the locknut (A) and adjusting nut (B).
5. Turn the adjusting nut (A) until it is 3.75±0.5 mm (0.15±0.02 in.) away from the bracket (B).
6. Pull the cable assembly so that the adjusting nut (A) touches the bracket, and tighten the locknut (B).
