TIBURON(GK) > 2003 > G 2.7 V6 DOHC > Suspension System > Rear Suspension System > Trailing
Arm > Repair procedures, TIBURON(GK) > 2003 > G 2.7 V6 DOHC > Suspension System > Rear
Suspension System > Trailing Arm > Repair procedures

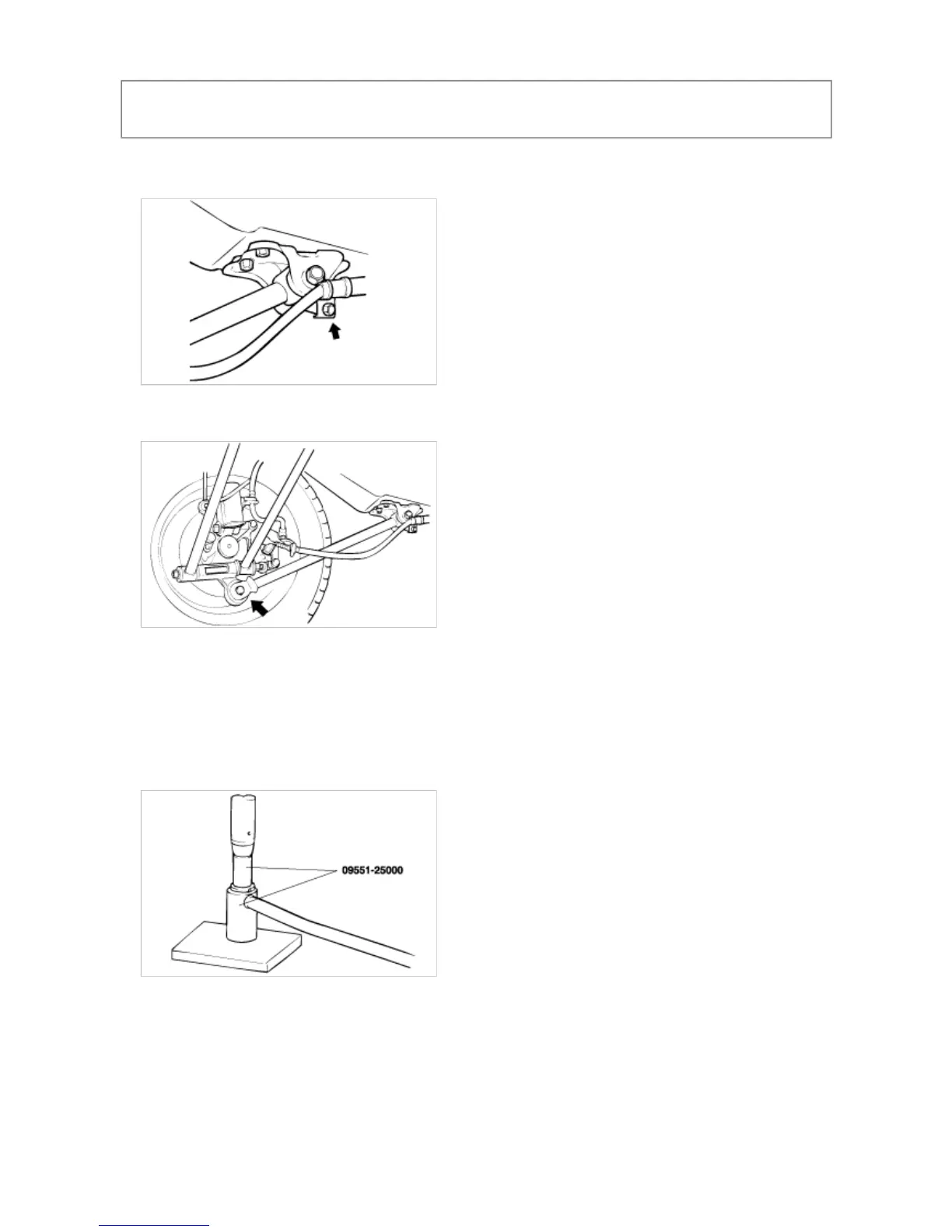

REMOVAL
1. Detach the parking brake cable from the rear trailing arm bracket.
2. After loosening the rear trailing arm mounting bolts, remove the trailing arm.
3. Remove the rear suspension arm mounting bolt from the rear axle carrier.
4. After supporting the center of the rear crossmember assembly with a jack, remove the rear crossmember
mounting bolts to the body.
5. Remove the rear crossmember and suspension arm.
REPLACEMENT
TRAILING ARM BUSHING
1. Install the special tool (09551 - 25000) on the trailing arm.
2. Remove the trailing arm bushing.
3. Using the special tool (09551 - 25000), press-fit the rear trailing arm bushing.
