TIBURON(GK) > 2003 > G 2.7 V6 DOHC > Body Electrical System > Daytime Running Lights > DRL
Control Module > Repair procedures, TIBURON(GK) > 2003 > G 2.7 V6 DOHC > Body Electrical System
> Daytime Running Lights > DRL Control Module > Repair procedures
INSPECTION

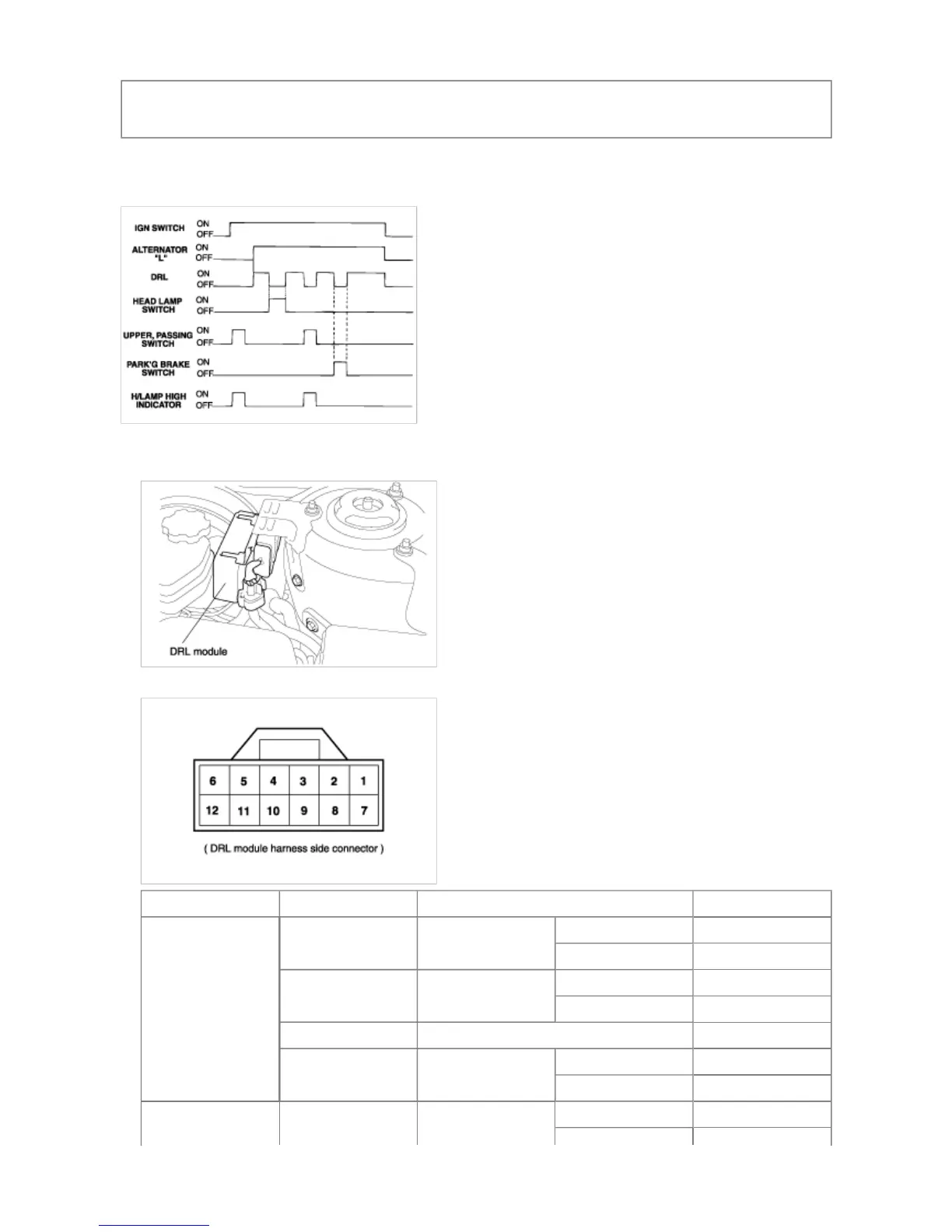

OPERATION CHECK
INSPECT CIRCUITS FOR DAYTIME RUNNING LIGHT SYSTEM
1. Disconnect the wire connector to DRL module from engine compartment.
2. Inspect the connector on wire harness side as shown.
Check For Test Connect Condition Test Specification
Continuity
4-Ground
Parking brake
switch
OFF (Released) No continuity
ON (Pull up) Continuity
5-Ground Head lamp switch
OFF No continuity
ON Continuity
6-Ground Constant Continuity
9-Ground
Dimmer&passing
switch
Head light ON Continuity
Head light OFF No continuity
9-Ground Ignition switch
ON Battery voltage
Page
1
of
2
