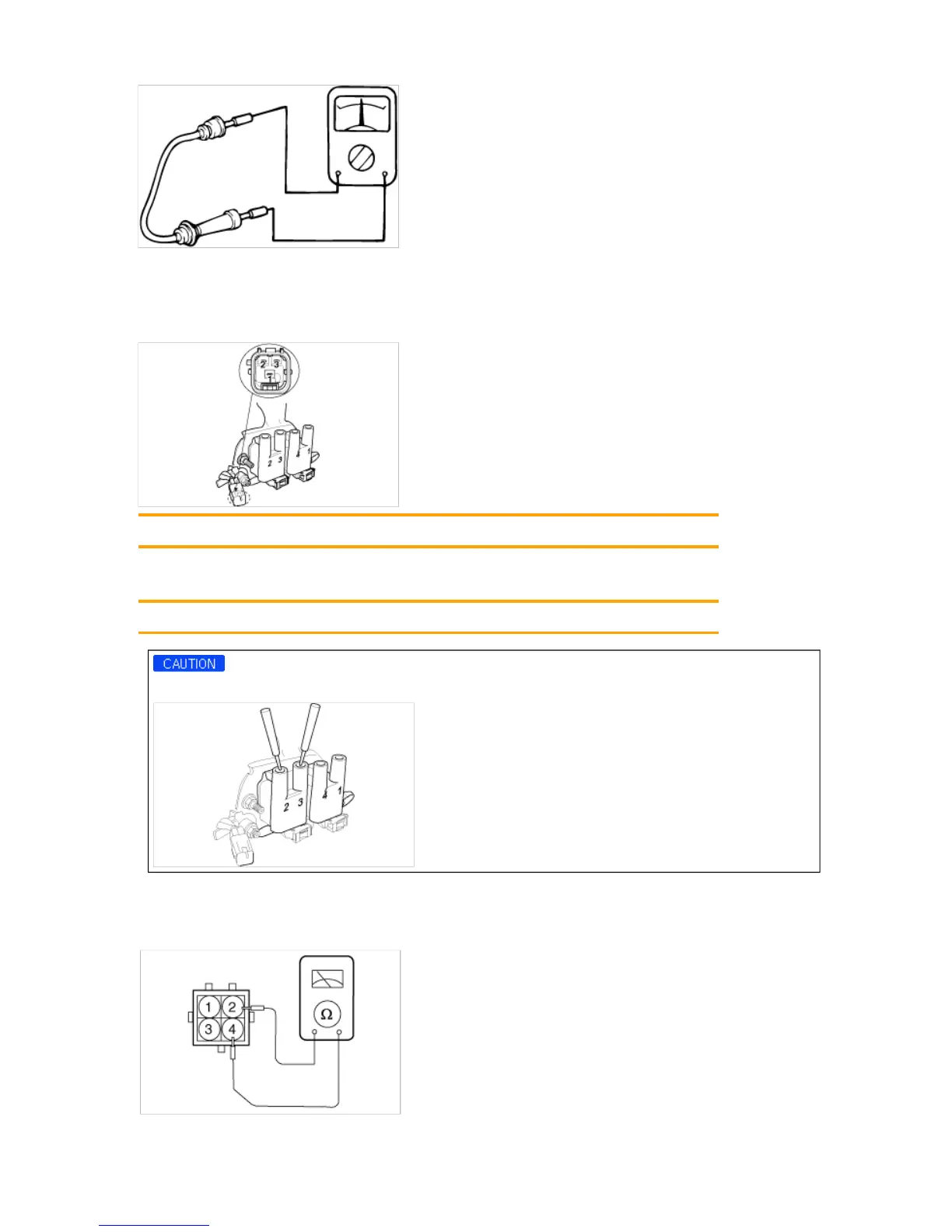

7. Resistance should not be higher than 2.6kΩ per meter of cable.
If resistance is higher, replace the cable.
1. Measure the primary coil resistance between terminals 1, 2 and 1,3.
Standard value : 0.58Ω ± 10%
2. Measure the secondary coil resistance between the high-voltage terminal for the No.1 and No.4 cylinders, and between the
high-voltage terminals for the No.2 and No.3 cylinders.
Standard value : 8.8kΩ ± 15%
Be sure, when measuring the resistnace of the secondary coil, to disconnect the connector of the ignition coil.
1. Measurement of the primary coil resistance
Measure the resistance between connector terminals 1 and 2 (the coils at the No.3 and No.6 cylinder sides) fo the ignition
coil, and between terminals 2 and 4 (the coils at the No.2 and No.5 cylinder sides), and between terminals 2 and 3 (the coils
at the No.1 and No. 4 cylinder sides).
2. Measurement of the secondary coil resistance
Measure the resistance between the high-voltage terminal for the No.3 and No.6 cylinders, between the high-voltage
