TIBURON(GK) > 2003 > G 2.7 V6 DOHC > Body (Interior and Exterior) > Sun Roof > Sunroof Relay >
Repair procedures, TIBURON(GK) > 2003 > G 2.7 V6 DOHC > Body (Interior and Exterior) > Sun Roof >
Sunroof Relay > Repair procedures
1. Pull down the rear headliner.
2. Disconnect the sunroof switch side connector from the sunroof controller.

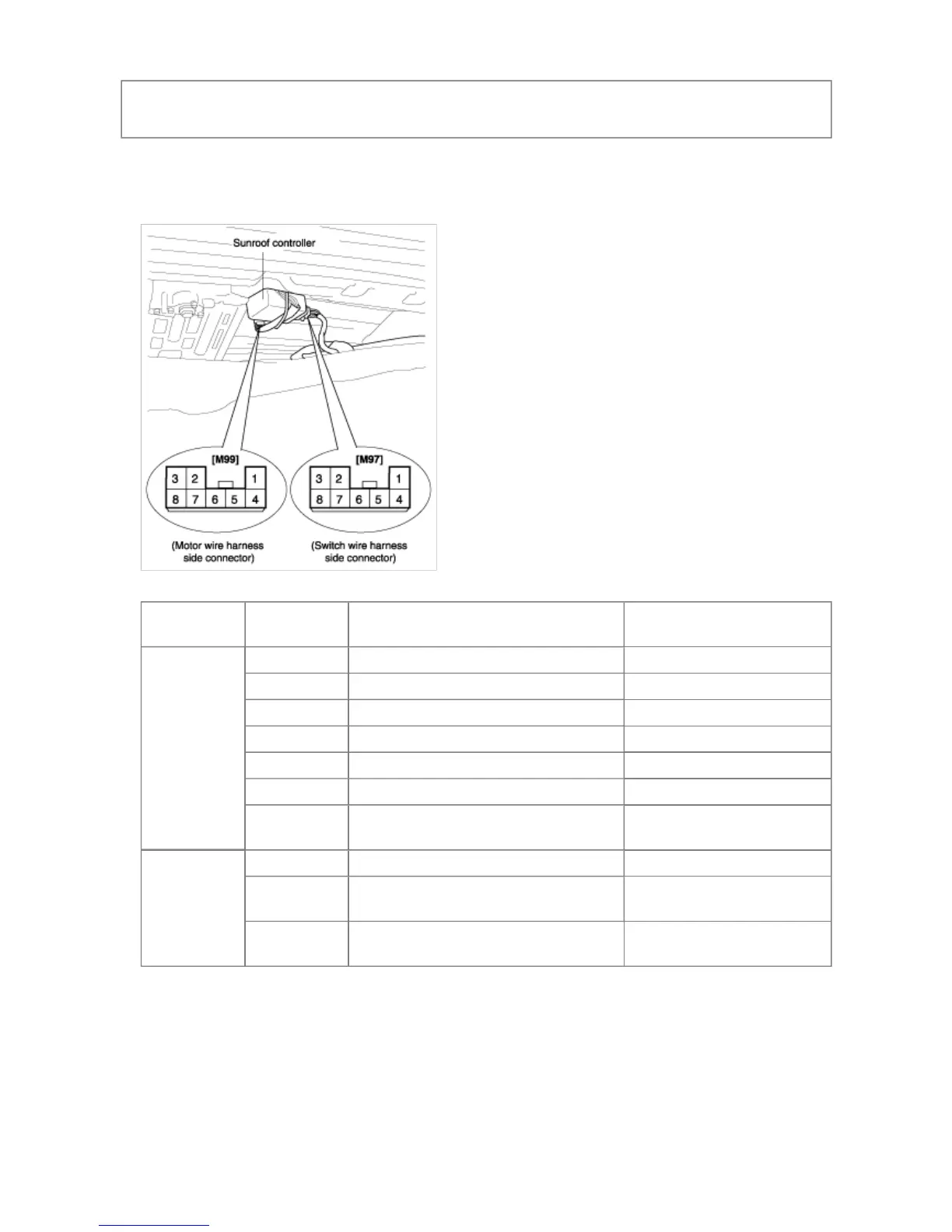

3. Inspect the connectors on the wire harness side from the controller, as shown in the table.
Connector
Tester
connection
Condition Specified condition
M97
1-Ground Constant Continuity
2-Ground Sunroof switch is in the close position Continuity
3-Ground Sunroof switch is in the open position Continuity
4-Ground Constant Battery voltage
6-Ground Ignition switch ON Battery voltage
7-Ground Sunroof switch is in the tilted up position Continuity
8-Ground
Sunroof switch is in the tilted down
position
Continuity
M99
3-Ground Constant Continuity
1(+) ~ 2(-)
Apply the battery voltage to the terminal
No.1 and ground to terminal No.2
Motor turns clockwise
1(-) ~ 2(+)
Apply the battery voltage to the terminal
No.2 and ground to terminal No.1
Motor turns counter-clockwise
To Next Page
