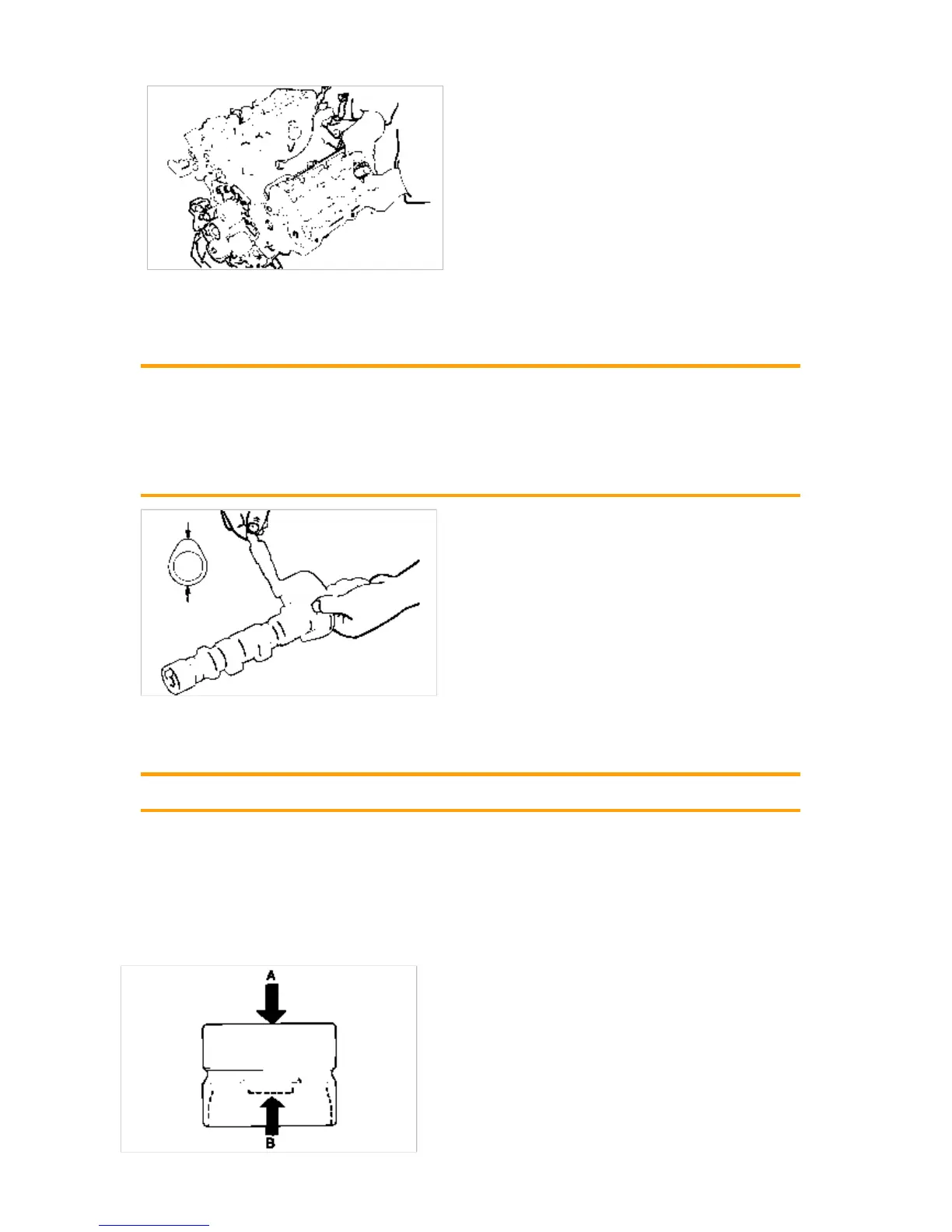

With the HLA filled with engine oil, hold A and press B by hand. If B moves, replace the HLA.
INSPECTION
1. Check the camshaft journals for wear. If the journals are badly worn out, replace the camshaft.
2. Check the cam lobes for damage. If the lobe is damaged or excessively worn out, replace the camshaft.
Cam height
[Standard]
Intake : 43.95 ~ 44.15mm (1.7303 ~ 1.7382in.)
Exhaust : 43.95 ~ 44.15mm (1.7303 ~ 1.7382in.)
[Limit]
Intake/Exhaust : 43.45mm (1.7106 in.)
3. Check the cam surface for abnormal wear or damage, and replace if necessary.
4. Check each bearing for damage. If the bearing surface is excessively damaged, replace the cylinder head
assembly or camshaft bearing cap, as necessary.
Camshaft end play : 0.1 ~ 0.15mm (0.0039 ~ 0.0059in.)
Oil Seal (Camshaft front)
1. Check the lips for wear. If lip threads are worn out, replace the oil seal with new one.
2. Check a contact surface of oil seal lip on camshaft. If there stratified wear, replace the camshaft.
HLA (Hydraulic Lash Adjuster)
