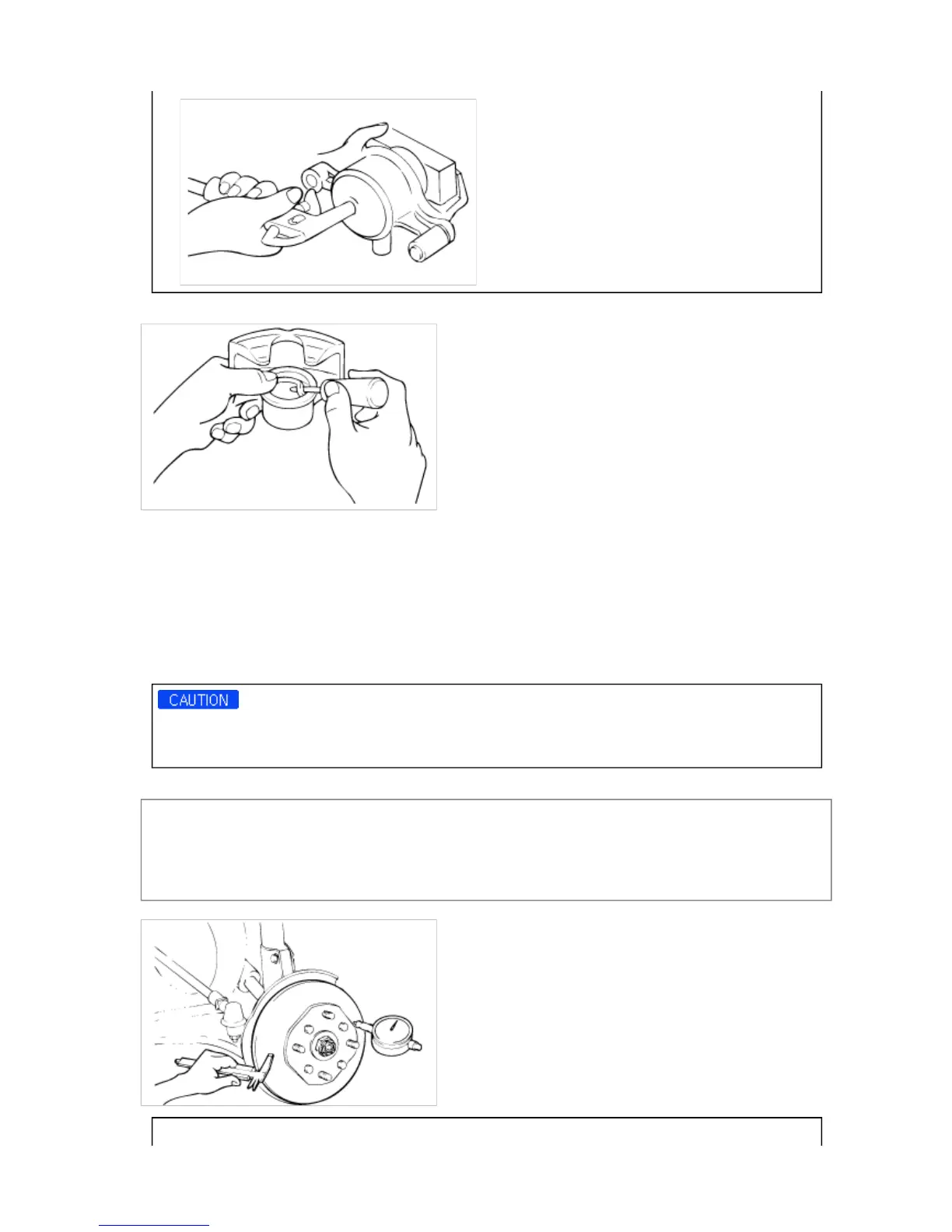

3. Remove the piston seal from the caliper by using a screwdriver.
INSPECTION
1. Check the caliper for wear, damage, cracks and dust.
2. Check the piston for dust, damage, cracks and wear on the outer surface.
3. Check the sleeve and pin for damage and dust.
4. Check the pad spring and boots for damage.
5. Check the carrier for damage, dust, wear and cracks.
1. Do not use sand paper on the piston surface.
2. All rubber parts must be replaced with new parts.
6. Inspect the disc by using a calipers and a dial gauge.
Thickness of disc mm (in.)
Standard value : 26 (1.024)
Service limit : 24.4 (0.961)
Runout of the disc mm (in.) : 0.08 (0.003)
Difference of thickness : 0.01mm (0.0004 in.)
