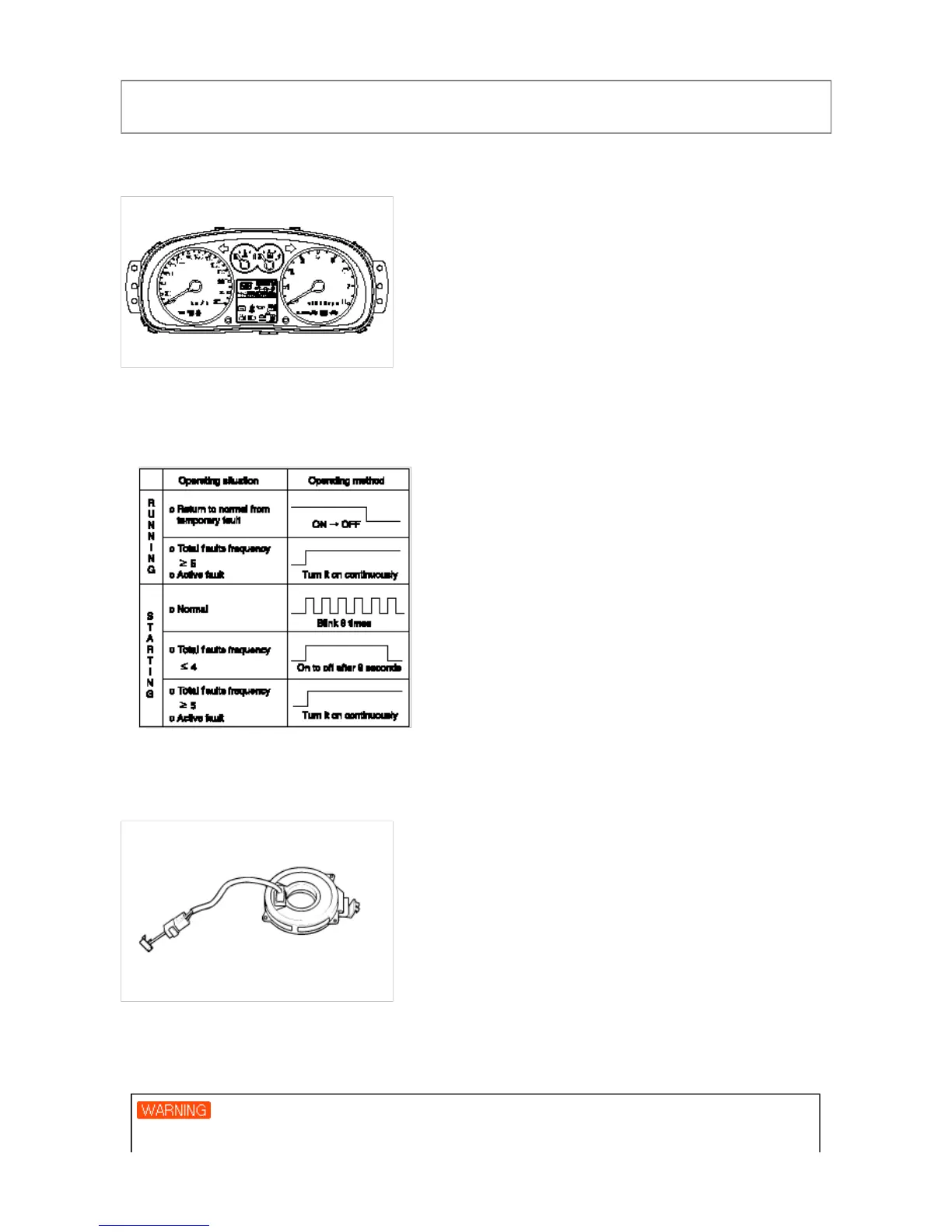

The clock spring (coil spring) consists of two current carrying coils. It is attached between the steering column and the
steering wheel. It allows rotation of the steering wheel while maintaining continuous contact of the deployment loop through
the inflator module.
The SRSCM is supported with the side airbag function by two satellites, which act as intelligent acceleration sensors and
as such back up the central airbag controller. Both the satellites continuously report the system statuson the left and right-
hand sides of the vehicle to the SRSCM.
TIBURON(GK) > 2003 > G 2.7 V6 DOHC > Restraint > Supplemental Restraint System Control Module (SRnodeM)
> Description and Operation, TIBURON(GK) > 2003 > G 2.7 V6 DOHC > Restraint > Supplemental Restraint
System Control Module (SRnodeM) > Description and Operation
SRSCM INDEPENDENT LAMP ACTIVATION
1. Loss of ignition voltage supply to the SRSCM : lamp turned on continuously.
2. Loss of internal operating voltage : lamp turned on continuously.
3. SRSCM not connected : lamp turned on through shorting bar in wiring harness connector.
When the ignition is ON, never cause a sudden shock around the installation area of the satellite sensor by a hammer,
