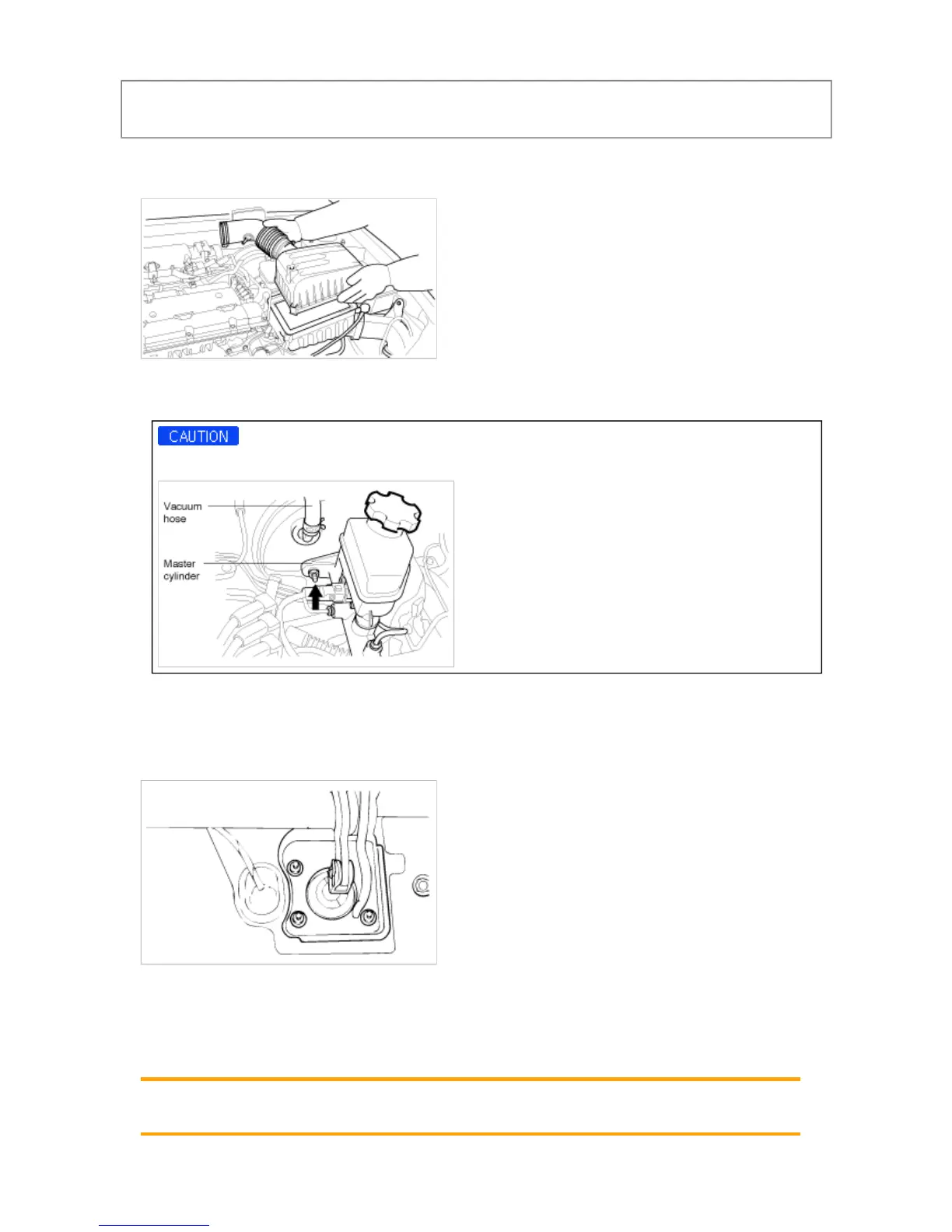

REMOVAL
1. Remove the air cleaner.
2. Disconnect the brake tube from the master cylinder.
3. Remove the master cylinder.
If there is any brake fluid on any painted surface, wash it off immediately.
4. Disconnect the vacuum hose from the booster.
5. Remove the operating rod from the brake pedal.
6. Loosen the booster mounting nuts.
7. Lift out the booster assembly.
INSTALLATION
1. When the booster assembly is installed, replace the packing at each end of the booster mounting holder, if
necessary.
2. Install the brake booster and tighten the mounting nuts.
Tightening torque:
13~16 Nm (130~160 kgf·cm, 9.6~11.8 lbf·ft)
