With the front fog lamps and battery normal condition, aim the front fog lamps by turning the adjusting gear.
TIBURON(GK) > 2003 > G 2.7 V6 DOHC > Body Electrical System > Lighting System > Head Lamps > Repair
procedures, TIBURON(GK) > 2003 > G 2.7 V6 DOHC > Body Electrical System > Lighting System > Head Lamps >
Repair procedures

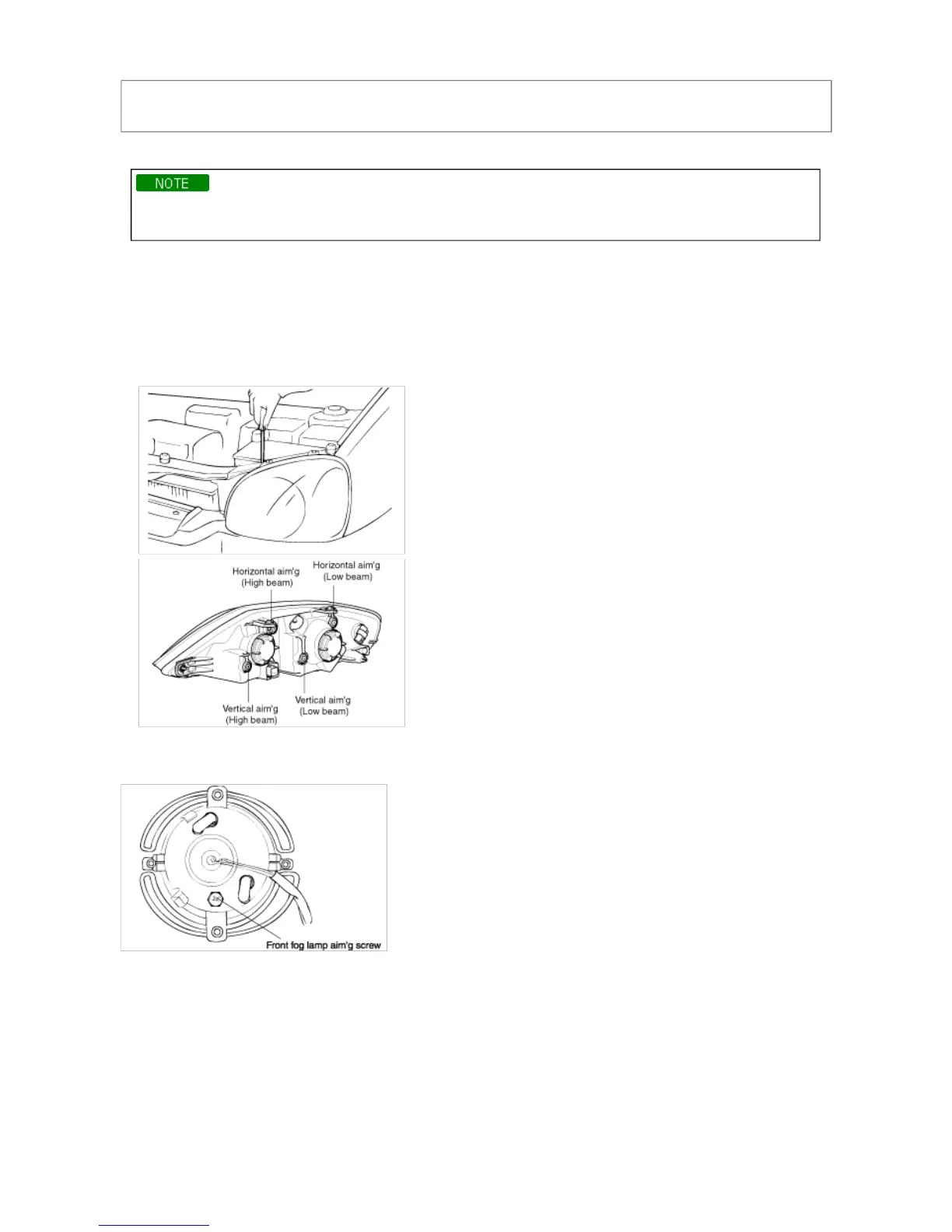

AIMING INSTRUCTIONS
If there are any regulations pertinent to the aiming of headlamps in the area where the vehicle is to be used, adjust so as
to meet those requirements.
1. Inflate the tires to the specified pressure and remove any loads from the vehicle except the driver, spare tire, and tools.
2. The vehicle should be placed on a flat floor.
3. Draw vertical lines (Vertical lines passing through respective headlamp centers) and a horizontal line (Horizontal line
passing through center of headlamps) on the screen.
4. With the headlamp and battery in normal condition, aim the headlamps so the brightest portion falls on the horizontal and
vertical lines.
Make vertical and horizontal adjustments to the lower beam using the adjusting wheel.
FRONT FOG LAMP
Page
1
of
3
24.04.2008
http://www.hmaservice.com/viewer/content.asp?IsPrint=true&imgnum=1&print_title
...
