TIBURON(GK) > 2003 > G 2.7 V6 DOHC > Steering System > General Information > General Information,
TIBURON(GK) > 2003 > G 2.7 V6 DOHC > Steering System > General Information > General Information
SERVICE ADJUSTMENT PROCEDURE

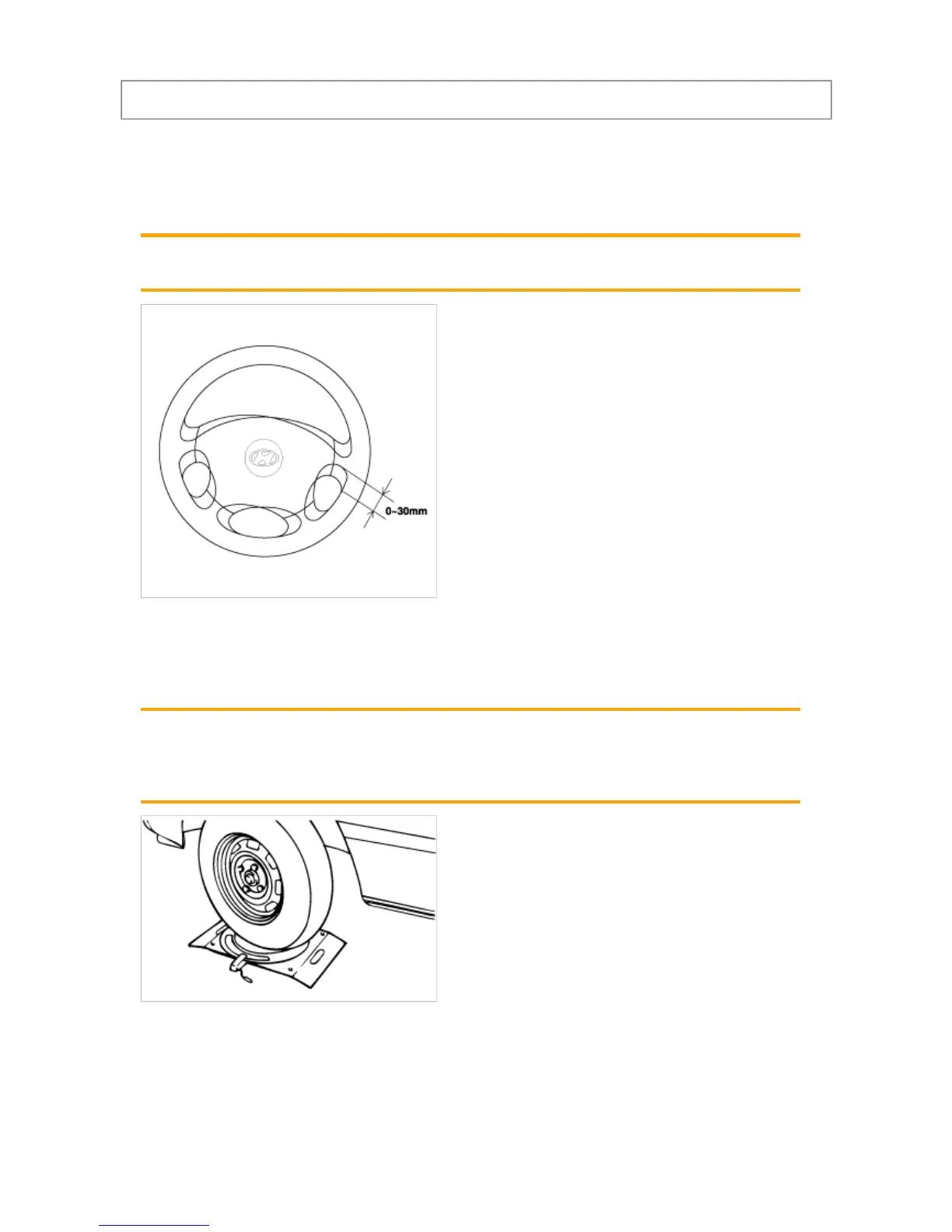

CHECKING STEERING WHEEL FREE PLAY
1. Start the engine with the steering wheel in the straight ahead position.
2. Measure the play at the circumference of the steering wheel.
Standard value
Steering wheel free play : 0~30 mm (0~1.1 in.)
3. If the play exceeds the standard value, inspect the connection between the steering shaft and steering
linkage.
CHECKING STEERING ANGLE
1. Place the front wheel on a turning radius gauge and measure the steering angle.
Standard value
Wheel angle
Inner wheel : 34°76´ ± 2°
Outer wheel : 30°19´
2. If the measured value is not within the standard value, adjust the toe and inspect again.
CHECKING THE TIE ROD END BALL JOINT STARTING TORQUE
1. Disconnect the tie rod and knuckle by using the special tool.
Page
1
of
7
24.04.2008
