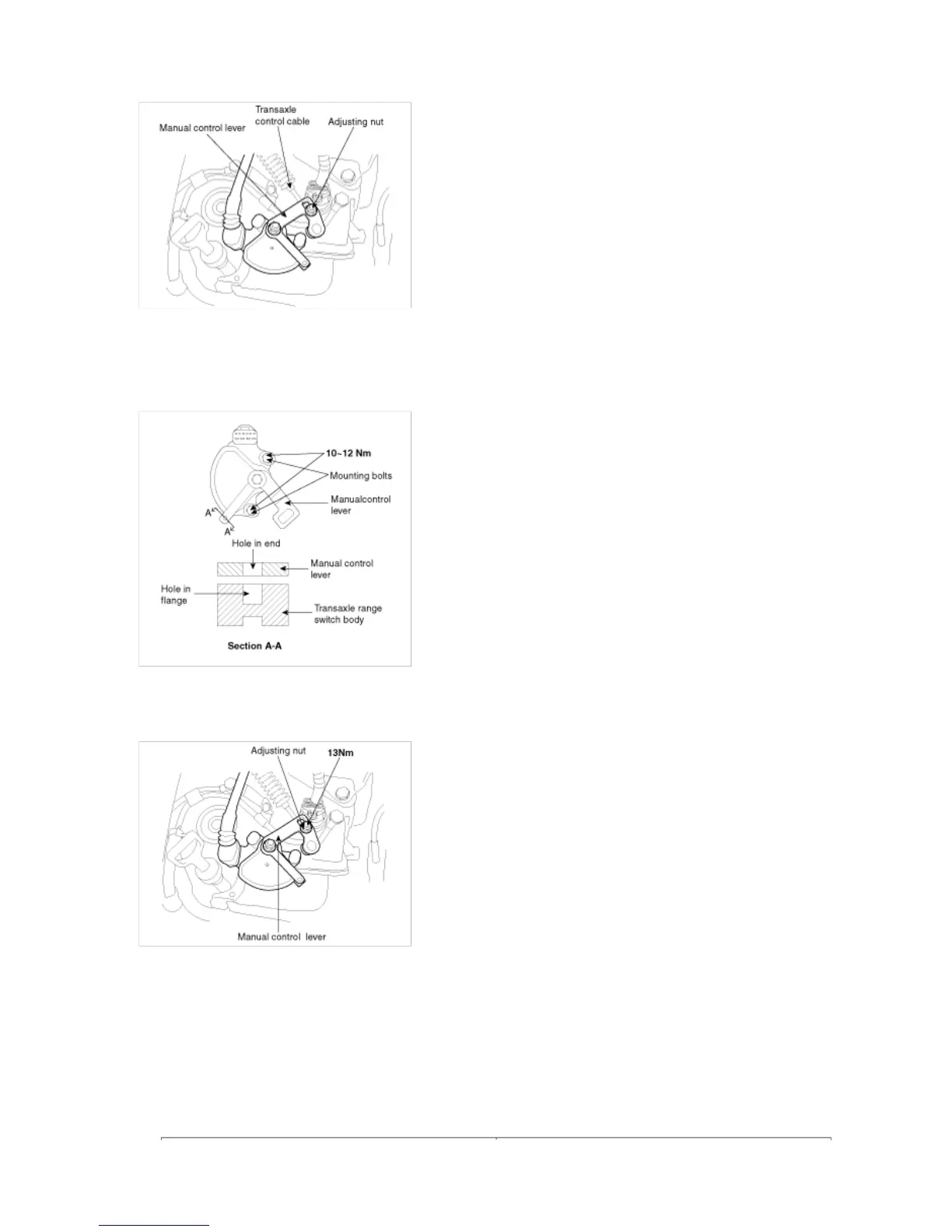

3. Set the manual control lever to the neutral position.
4.
Loosen the transaxle range switch body mounting bolts and then turn the transaxle range switch body so the hole in the
end of the manual control lever and the hole (cross section A-A in the figure) in the flange of the transaxle range switch
body flange are aligned.
5. Tighten the transaxle range switch body mounting bolts to the specified torque. Be careful at this time that the position
of the switch body does not change.
6. Gently pull the transaxle control cable in the direction of the arrow, then tighten the adjusting nut.
7. Check that the selector lever is in the "N" position.
8. Check that each range on the transaxle side operates and functions correctly for each position of the selector lever.
A/T CONTROL COMPONENT CHECK
1. THROTTLE POSITION SENSOR CHECK
The TPS is a variable resistor type that rotates with the throttle body shaft to sense the throttle valve angle. As the
throttle shaft rotates, the output voltage of the TPS changes. The ECM detects the throttle valve opening based on
voltage change. (Refer to FL-section).
2. OIL TEMPERATURE SENSOR CHECK
(1) Remove the oil temperature sensor.
(2) Measure the resistance between terminals 1 and 2 of the oil temperature sensor connector.
STANDARD VALUE
