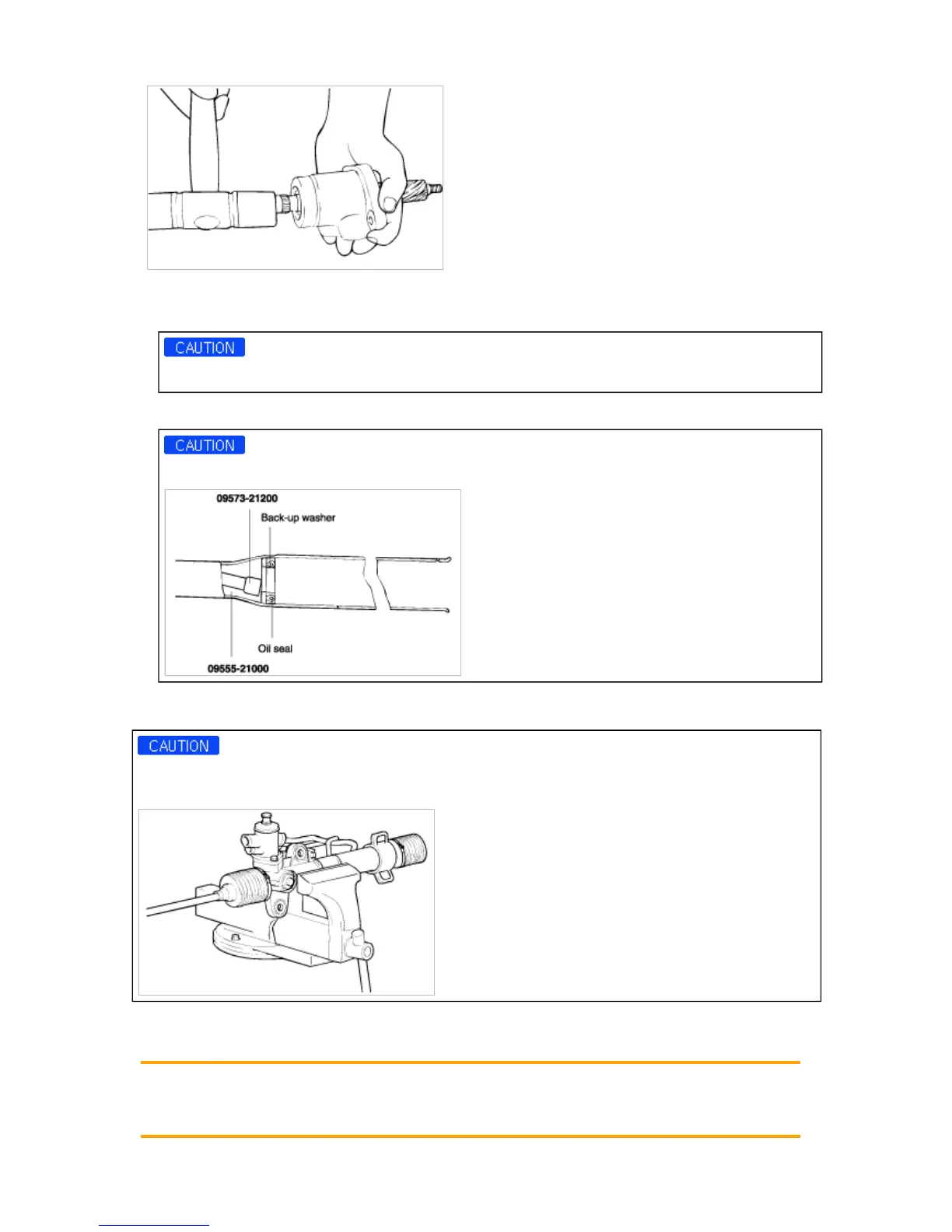

20. Using the special tool, remove the oil seal and ball bearing from the valve body housing.
21. Remove the oil seal and O-ring from the rack housing.
Be careful not to damage the pinion valve cylinder bore of the rack housing.
22. Using the special tool, remove the oil seal from the rack housing.
Be careful not to damage the rack cylinder bore of the rack housing.
INSPECTION AND ADJUSTMENT BEFORE DISASSEMBLY
When mounting the gear box in a vise, let the installation section of it be fixed to the jaws. If other section is
fixed, the gear box may be damaged.
TOTAL PINION PRELOAD
1. Rotate the pinion gear for approximately 4 to 6 seconds for one rotation to measure the total pinion preload.
Standard value
Total pinion preload :
0.6~1.3 Nm (6~13 kg·cm, 0.4~1.0 lb·ft)
