2. Check that the flow control valve is not bent.
3. Check the shaft for wear and damage.
4. Check the V-belt for wear and deterioration.
5. Check the grooves of the rotor and vanes for stratified abrasion.
6. Check the contact surface of the cam ring and vanes for stratified abrasion.
7. Check vanes for damage.
8. Check that there is no striped wear in the side plate or contacting part between the shaft and the pump cover
surface.

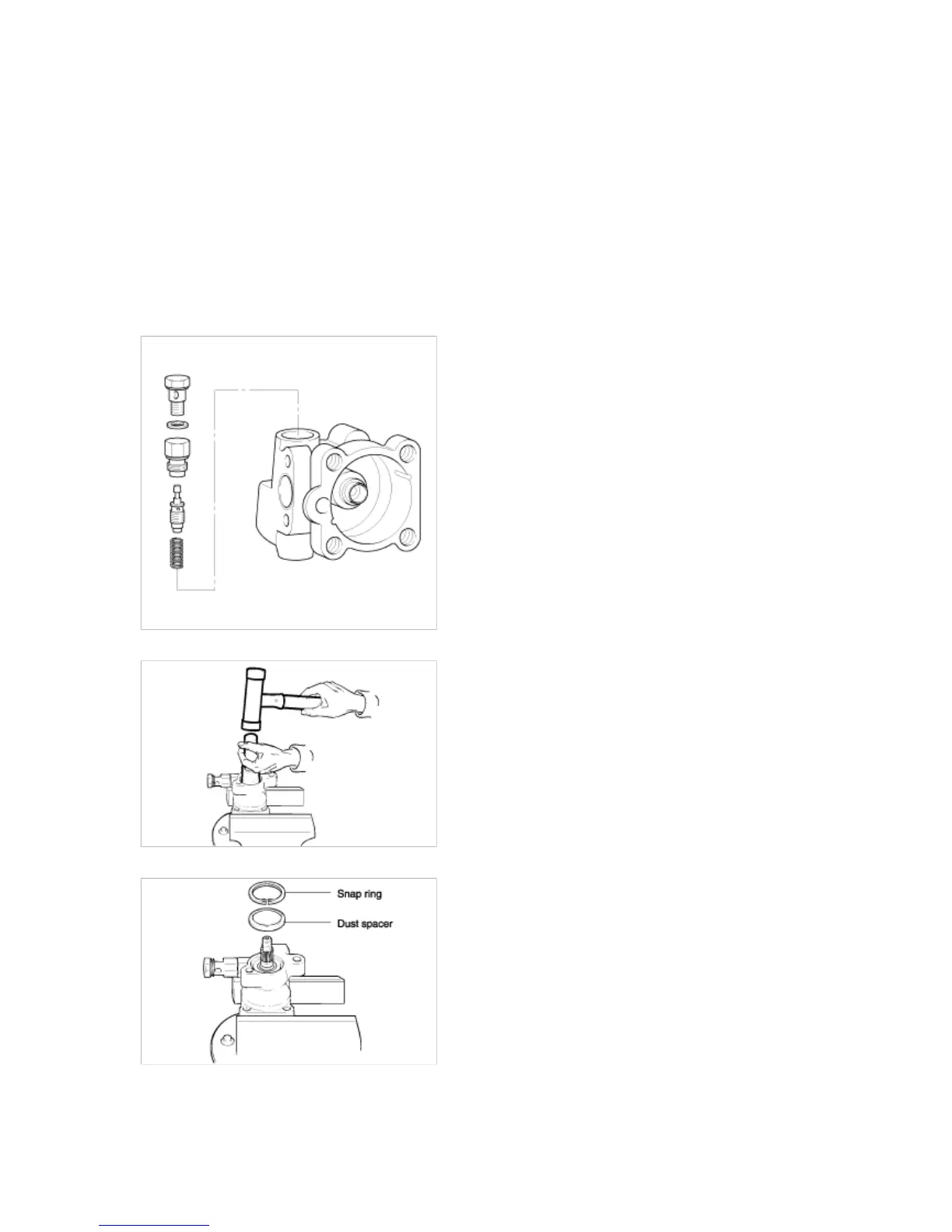

REASSEMBLY
1. Install the flow control spring, the flow control valve and the connector into the pump body.
2. Install the oil seal in the pump body by using the special tool.
3. After inserting the shaft assembly into the pump body, install the dust spacer and snap ring.
4. Install the pump pulley.
Page
6
of
8
24.04.2008
