Single mass flywheel:
15~22 N·m (150~220 kg·cm, 11~16 lb·ft)
Dual mass flywheel:
20~27 N·m (200~270 kg·cm, 14~19 lb·ft)

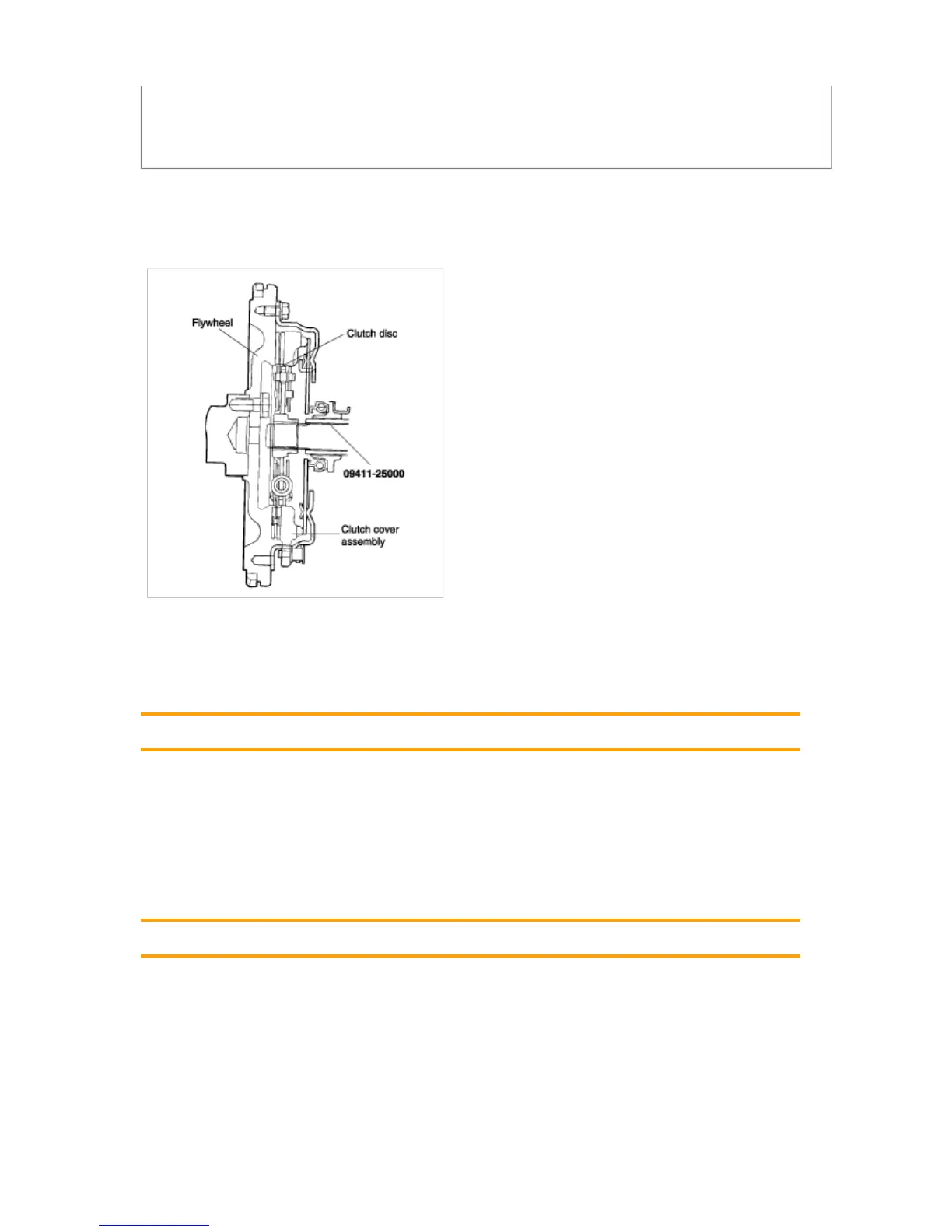

9. Remove the special tool.
10. Install the transaxle. (Refer to GROUP - Manual Transaxle Assembly)
11. Adjust the clutch pedal free-play. (See CH-6)
1. Check the diaphragm spring end for wear and uneven height.
Replace if wear is evident or height difference exceeds the limit.
0.3 mm (0.012 in.)
2. Check the pressure plate surface for wear, cracks and color change.
3. Check the rivets for looseness and replace the clutch cover assembly if necessary.
1. Check the clutch facing for loose rivets, uneven contact, deterioration due to seizure, adhesion of oil, or
grease, and replace the clutch disc if defective.
2. Measure the rivet sink and replace the clutch disc if it is out of specification
1.1 mm (0.044 in.)
