TIBURON(GK) > 2003 > G 2.7 V6 DOHC > Heating,Ventilation, Air Conditioning > Heater > Temperature
Control Actuator > Repair procedures, TIBURON(GK) > 2003 > G 2.7 V6 DOHC > Heating,Ventilation, Air
Conditioning > Heater > Temperature Control Actuator > Repair procedures
REPLACEMENT

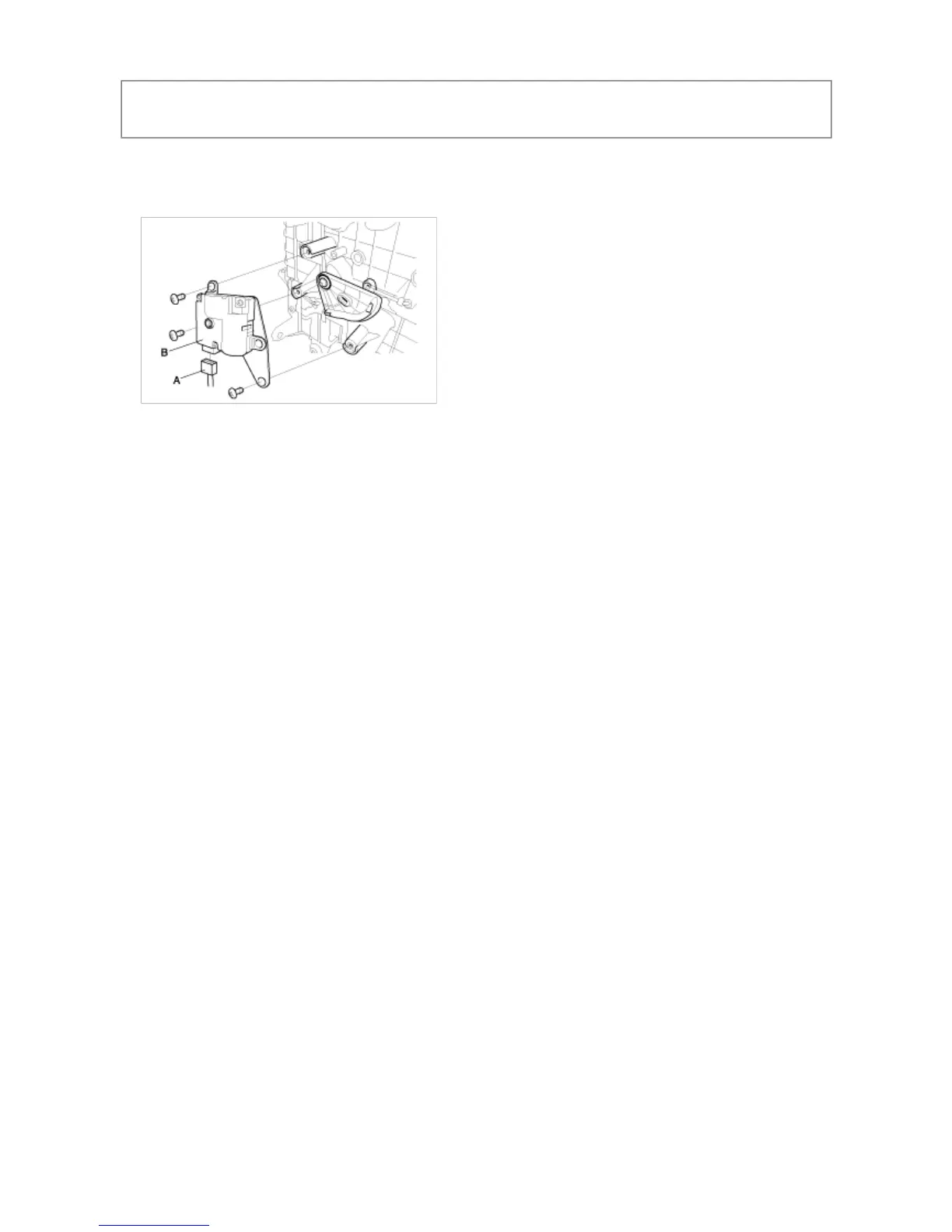

1. Disconnect the 7P connector (A) from the temp. actuator (B). Remove the self-tapping screws and the temp.
actuator from the heater unit.
2. Install in the reverse order of removal. After installation, make sure temp. actuator runs smoothly.
