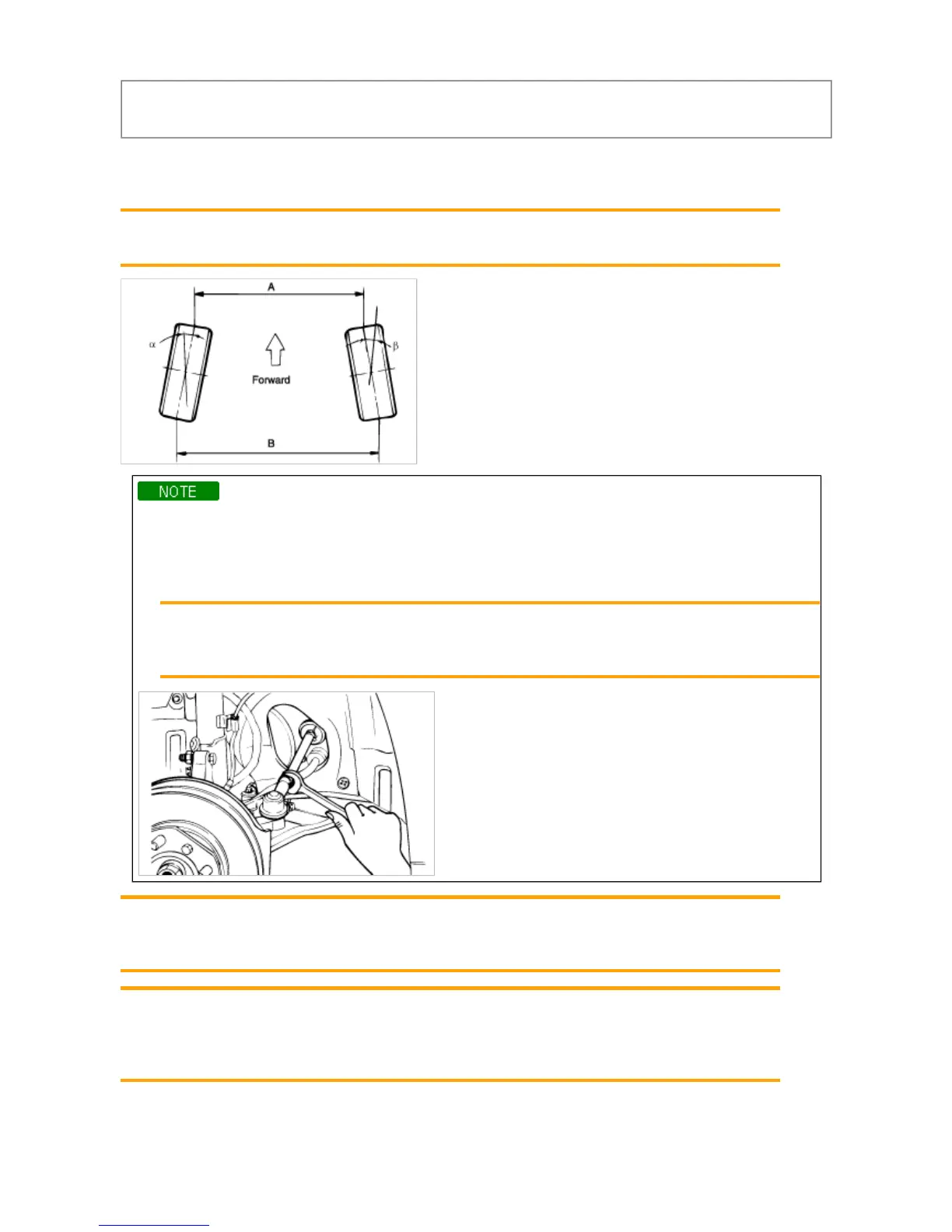

FRONT WHEEL ALIGNMENT
FRONT WHEEL ALIGNMENT
Standard value
Toe-in(B-A) mm (in.) : 0 ± 2 mm (0 ± 0.08 in.)
•
Toe-in adjustment should be made by turning the right and left tie rods at the same amount.
•
When adjusting toe-in, loosen the outer bellows clip to prevent twisting the bellows.
•
After the adjustment, tighten the tie rod end lock nuts firmly and reinstall the bellows clip.
•
Adjust each toe-in to be the range of ±1mm.
Tightening torque
Tie rod end lock nuts :
50~55 Nm (500~550 kgf·cm, 37~41 lbf·ft)
Camber : 0°13´ ± 30´
Standard value
Toe-in(B-A) mm (in.) : 0 ± 2 mm (0 ± 0.08 in.)
Caster : 2°58´ ± 30´
Standard value
Toe-in(B-A) mm (in.) : 0 ± 2 mm (0 ± 0.08 in.)
Camber : 0°13´ ± 30´
Page
1
of
3
24.04.2008
