High quality of replacement filters should be used to assure the most efficient service. Make sure that the rubber gasket from
the old oil filter is completely removed from the contact surface on the engine block beforeinstalling a new filter.
Do not over fill. This will cause oil aeration and loss of oil pressure.
6. Install the oil filler cap.
7. Start and run the engine.
8. Turn off the engine and then check the oil level. Add oil if necessary.

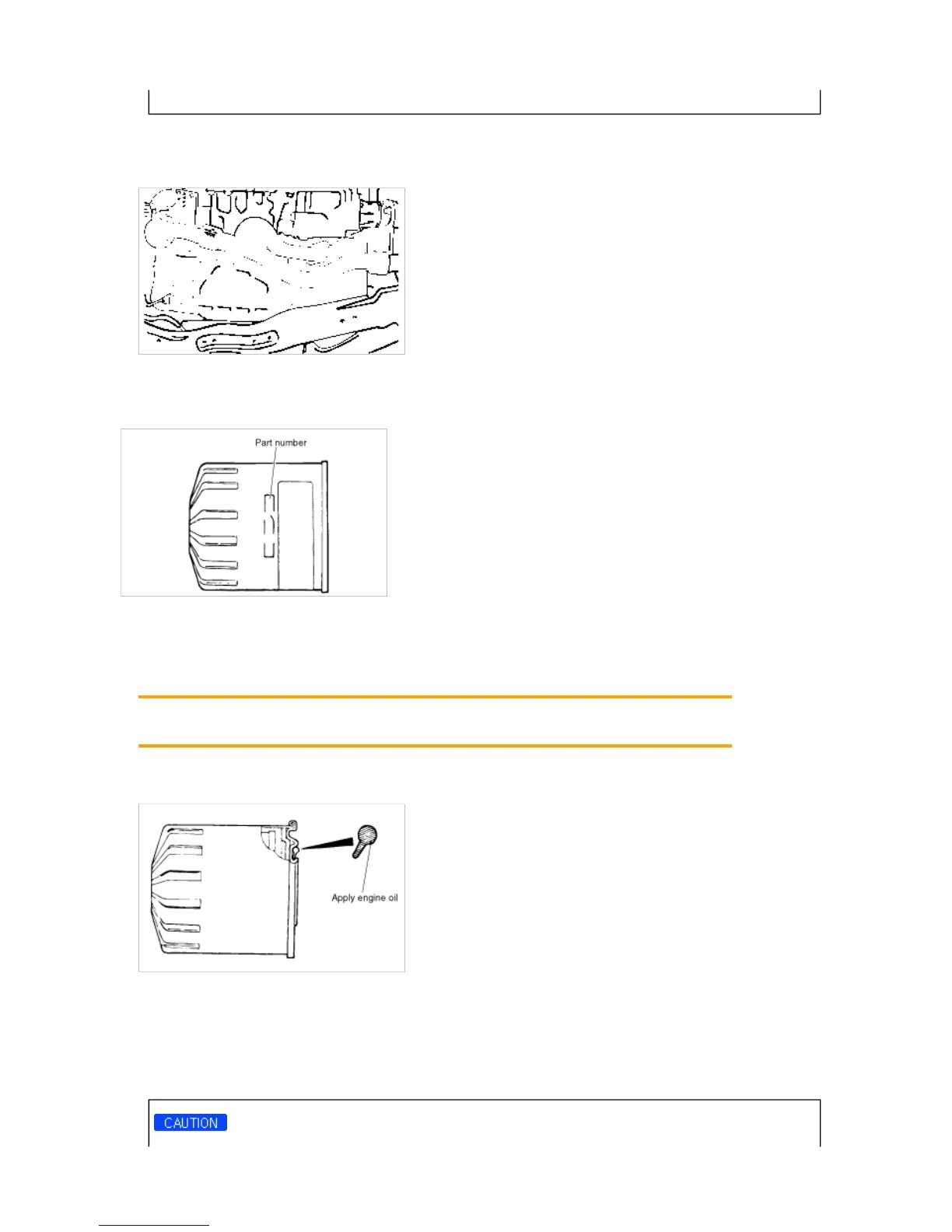

Procedure for Replacing Oil Filter
1. Use a filter wrench to remove the oil filter.
2. Before installing a new oil filter on the engine, apply clean engine oil to the surface of the rubber gasket.
3. Tighten the oil filter of the specified torque.
Tightening torque
Oil filter : 12 ~ 16Nm (120 ~ 160kg.cm, 9 ~ 12lb.ft)
4. Start and run the engine and check engine oil leaks.
5. After stopping the engine, check the oil level and add oil as necessary.
CHECKING COOLANT LEAK CHECK
1. Loosen the radiator cap.
2. Confirm that the coolant level is up to the filler neck.
3. Install a radiator cap tester to the radiator filler neck and apply 150 KPa (21psi, 1.53 kg/cm²) pressure. Hold for two
minutes, then checkfor leakage from the radiator, hoses or connections.
