TIBURON(GK) > 2003 > G 2.7 V6 DOHC > Heating,Ventilation, Air Conditioning > Heater > Mode Control
Actuator > Schematic Diagrams, TIBURON(GK) > 2003 > G 2.7 V6 DOHC > Heating,Ventilation, Air
Conditioning > Heater > Mode Control Actuator > Schematic Diagrams

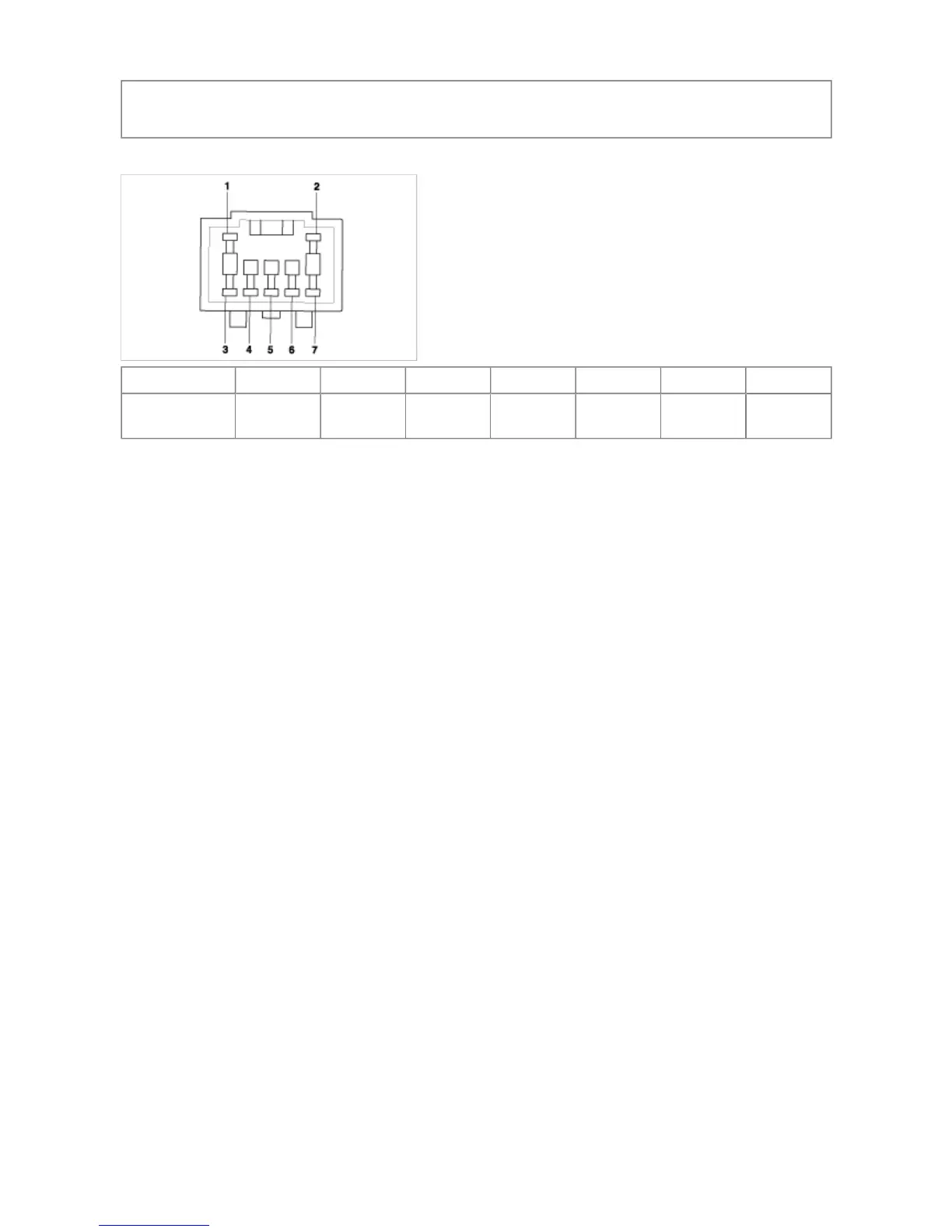

CONNECTOR
Teminal No. 1 2 3 4 5 6 7
Mode X X VENT DEF VCC (+) F/B
SENSOR
GND (-)
Page
1
of
1
