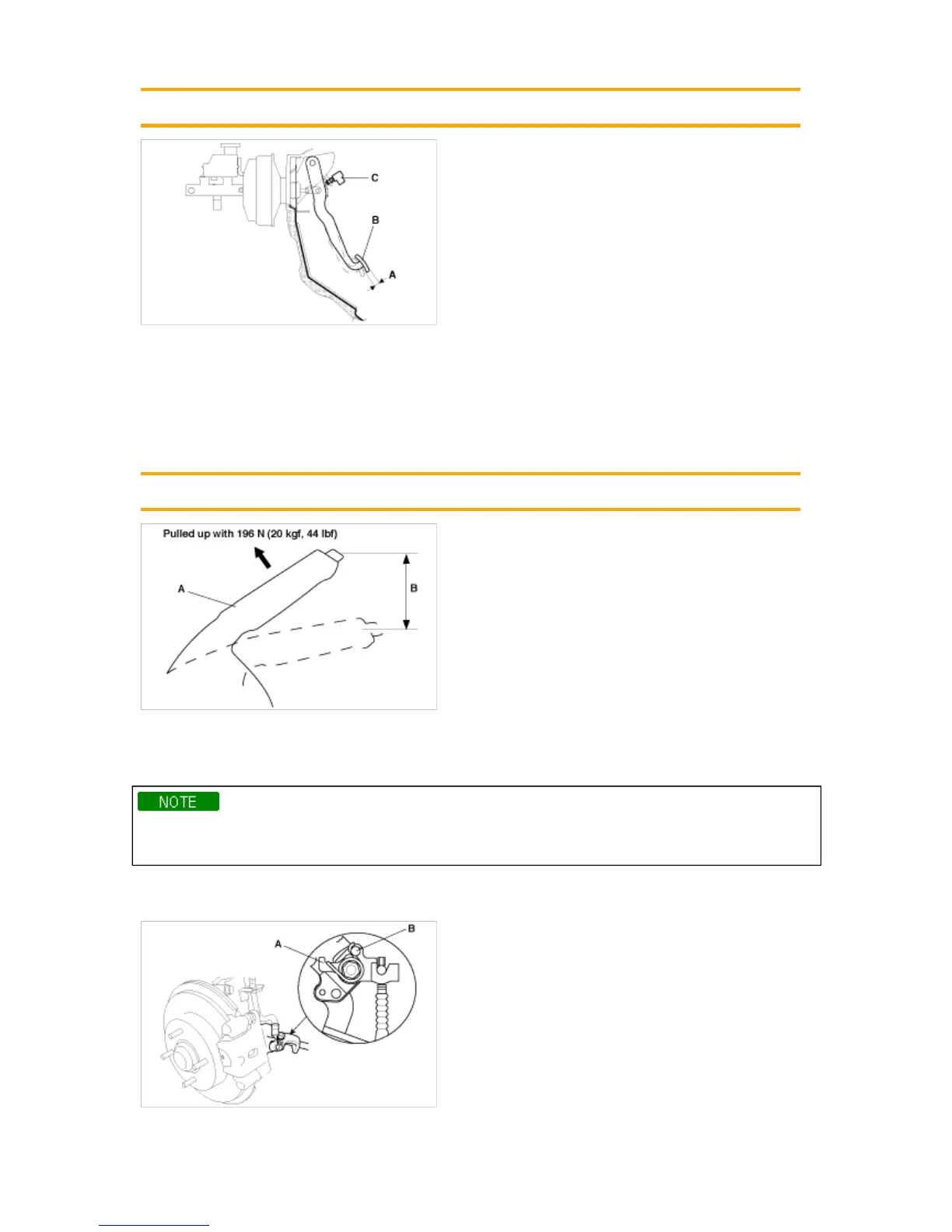

CHECK
3~8 mm (0.11~0.31in.)
2. If the pedal free play is out of specification, adjust the brake switch (C). If the pedal free play is insufficient, it
may result in brake drag.
Parking brake check and adjustment
1. Pull the parking brake lever (A) with 196 N (20 kgf, 44lbf) force to fully apply the parking brake. The parking
brake lever should be locked within the specified number of clicks (B)
6~7
2. Adjust the parking brake if the lever clicks are out of specification.
After rear brake caliper servicing, loosen the parking brake adjusting nut, start the engine and depress the
brake pedalseveral times to set the self-adjusting brake before adjusting the parking brake.
1. Block the front wheels, then raise the rear of the vehicle and make sure it is securely supported.
2. Make sure the parking brake arm (A) on the rear brake caliper contacts the brake caliper pin (B).
3. Pull the parking brake lever up one click.
