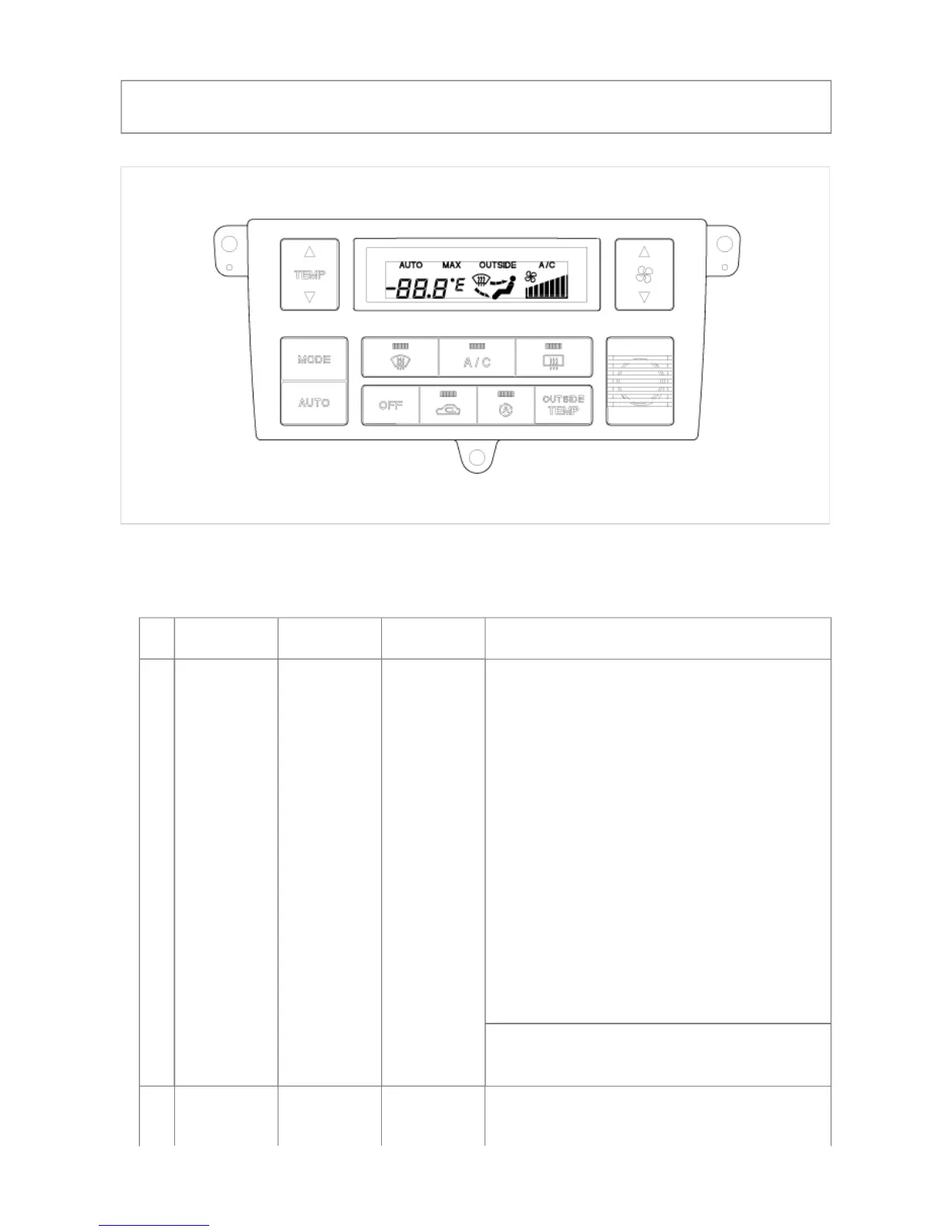

BUTTON CONTROL AND OPERATION LOGIC
1. All buttons should be back-up.
2. Push the button, then the operation sound is made for 0.1 sec. When a S/W is selected, and operation sound is made
as well).
NO BUTTON
BUTTON
FUNCTION
DISPLAY SYSTEM OPERATION
1 TEMP TEMP
UP/DOWN
Set
temperature:
Display
1. Control the discharge air temperature by adjusting the
mixture ratio of cold & hot air with the TEMP DOOR.
2.
Whenever press the SWITCH, temperature is changed
0.5°C up/down each time. (Each time the operation
sound is made for 0.1 sec.)
3. Set 17°C (62°F) as MAX COOL, 32°C (90°F) as MAX
HOT.
4. When the switch is turned ON from OFF, the set
temperature is displayed as the same before OFF.
5. When changing the set temperature from 17.5°C to
17°C or from 31.5°C to 32°C, the operation sound is
made.
6. At 17°C, if the temperature is set below than 17° C or
at 32°C , if it is above than 32°C , the operation sound
is made 5times at an interval of 0.15 sec.
7. When pushing the TEMP button several times, the set
temperature is shifted to another step at an interval of
0.7sec., When engaging the button continuously (keep
pushing), only the first shift takes 0.7 sec. but the next
shifts take 0.3 sec.
OFF SW AND SYSTEM OPERATION
- OFF: SYSTEM OFF
- TEMP: SET TEMPERATURE UP/DOWN
2 AUTO AUTO
CONTROL
"AUTO": Display
1. Automatically control the following items
corresponding to theset temperature.
