Siemens SINUMERIK 828D Function Manual

P4: PLC for SINUMERIK 828D
14.4 Test and diagnostic functions
Basic Functions
1136 Function Manual, 09/2011, 6FC5397-0BP40-2BA0
14.4.2.2 Display properties

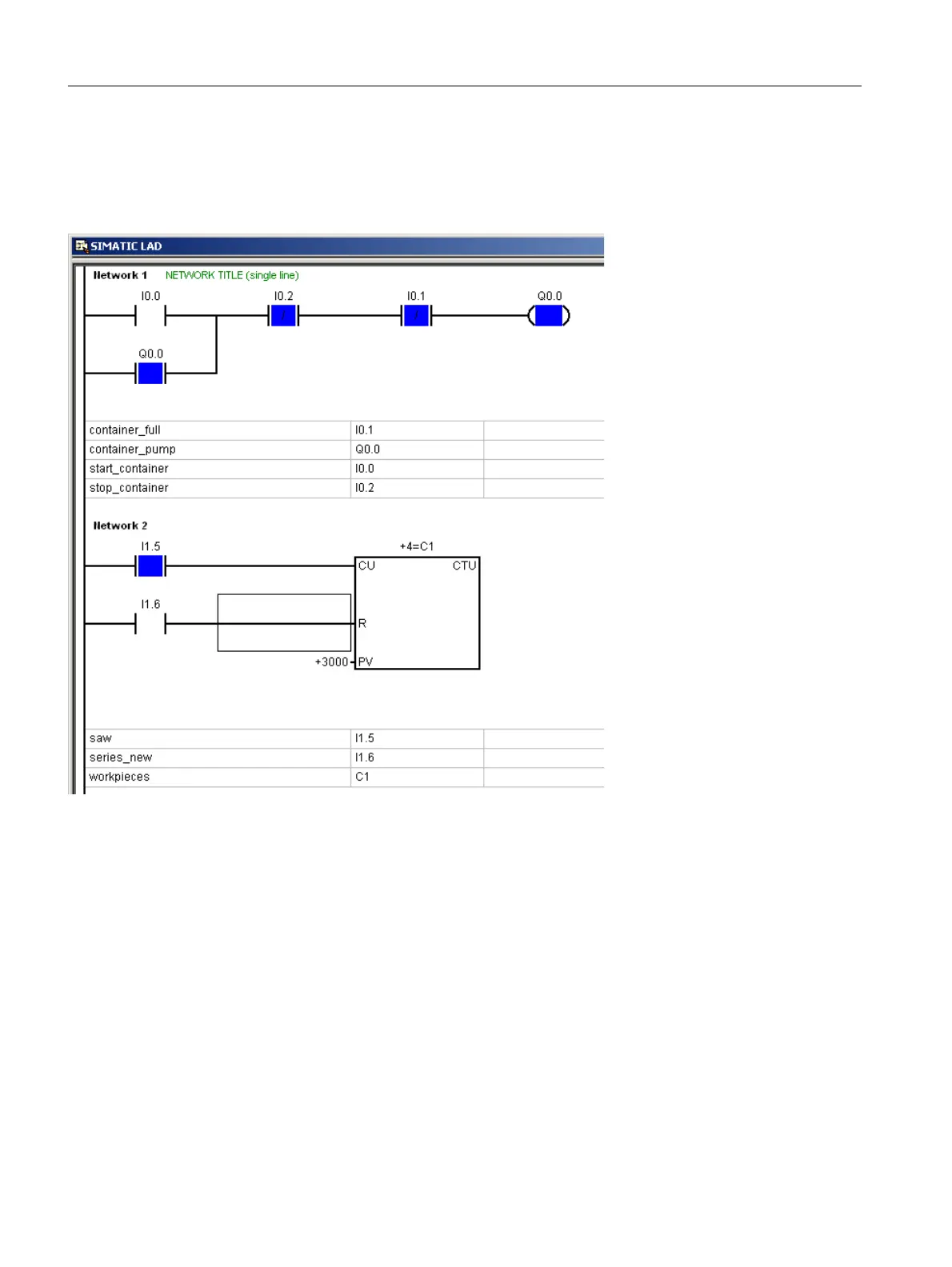

If you display the program status in LAD, the boolean operations are displayed as colored blocks, if the value of
the address is 1 (bit is enabled). The actual data value from other addresses is displayed next to the address (or
instead of the address). The display is updated, if changes are read from the target system.
