Siemens SINUMERIK 828D Function Manual

D1: Diagnostics tools
5.3 Service overview
Basic Functions
Function Manual, 09/2011, 6FC5397-0BP40-2BA0
269
5.3 Service overview
In principle, the following service displays are available:
• Axis/spindle service displays
• Drive service displays
• Profibus-DP service displays
Operation
To select and use the service displays, see:
Reference:
Operating Manual
5.3.1 Axis/spindle service display
The display of values and states on the control's user interface allows the operating state of the axes and
spindles to be evaluated.

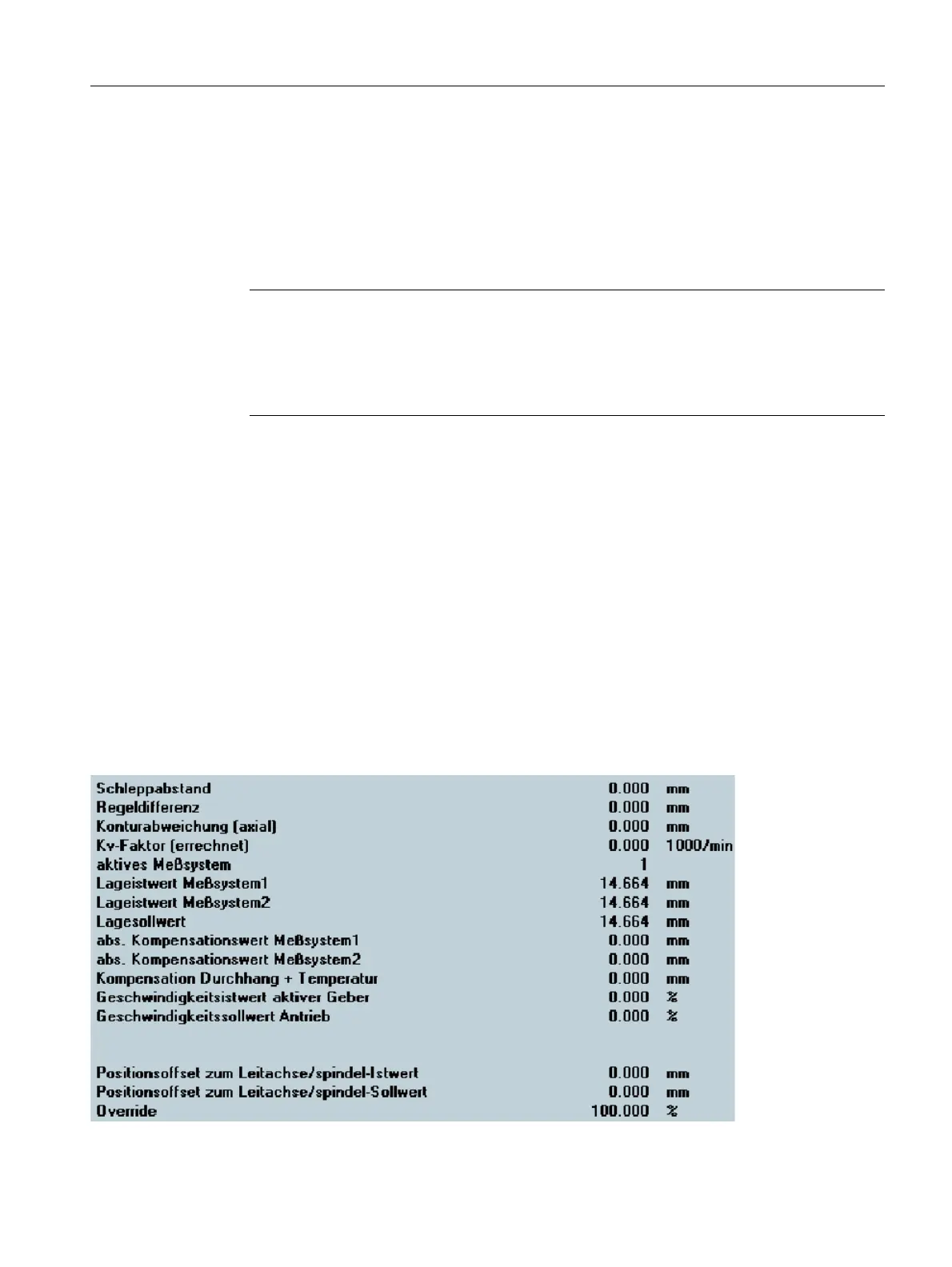

Accessing the diagnostic options
The information relevant when commissioning and troubleshooting (diagnostics) axes and spindles is displayed
on the operator panel front in the operating area "Diagnosis" in the service display "Axis/spindle" for each axis/
spindle:
Note
System dependencies
The availability of individual service displays depends on the particular system, e.g.:
• Drive service displays: for digital drives only
• Profibus-DP service displays: for SINUMERIK 840Di only
