Reconfiguring the SZS affects all SZS actual-value displays and the $AA_IEN[axis] system variables. Traversing
geometry axes in JOG mode in the SZS also depends on the configuration.
10.5.4.4 Manual traverse in the SZS coordinate system
Previously, geometry axes have been traversed manually in JOG mode in the WCS. In addition, there is also the
option to carry out this manual operation in the SZS coordinate system. The $AC_JOG_COORD variable enables
the user to switch between manual traversing in the WCS and SZS. The user can now select if he wants to
traverse in the SZS or the WCS.

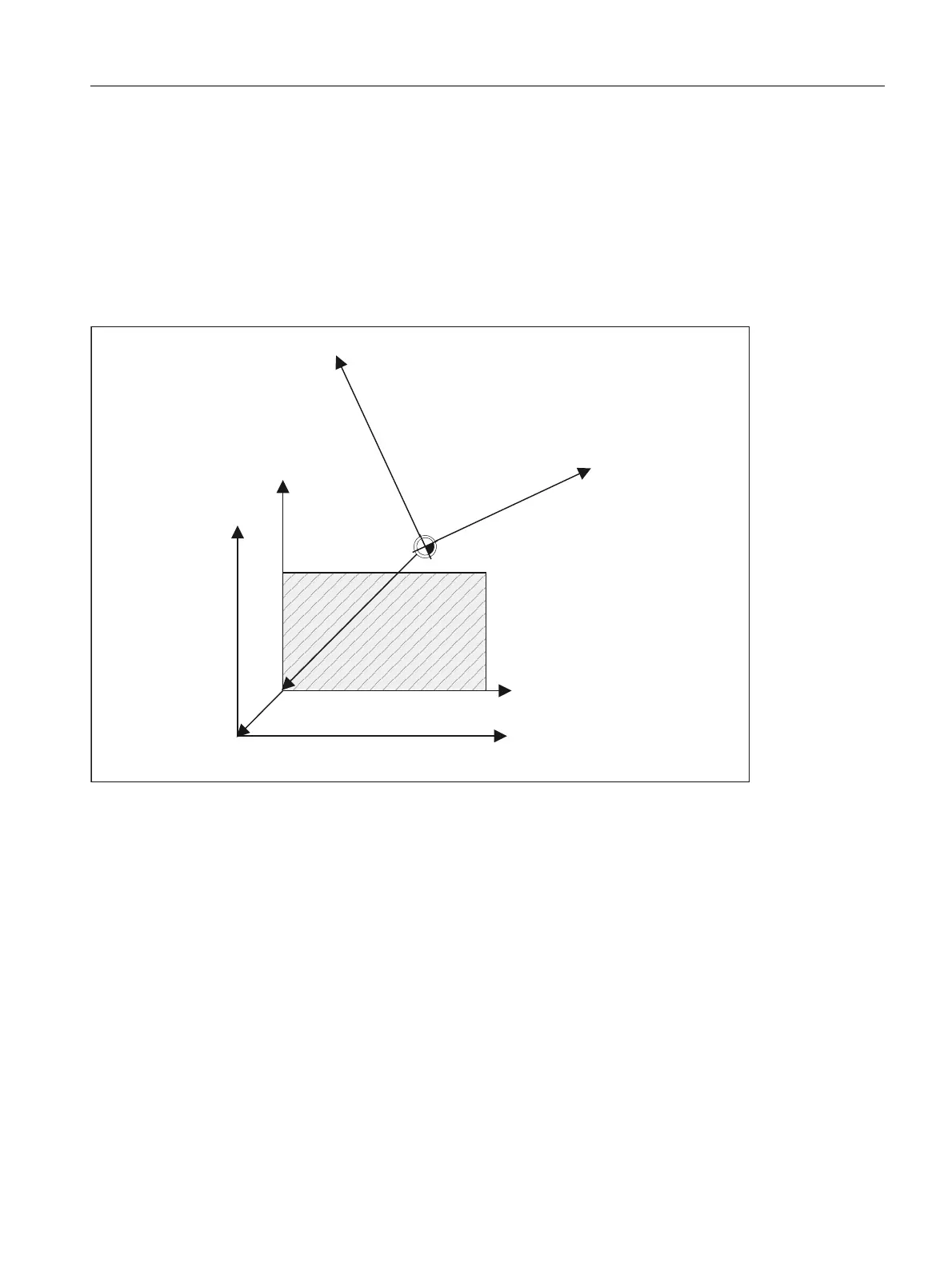

3B75$)5$0(3B3)5$0(
3B&<&)5$0(
6=6
