Siemens SINUMERIK 828D Function Manual

K2: Axis Types, Coordinate Systems, Frames
10.5 Frames
Basic Functions
Function Manual, 09/2011, 6FC5397-0BP40-2BA0
729
10.5.2.4 Scaling
Programming

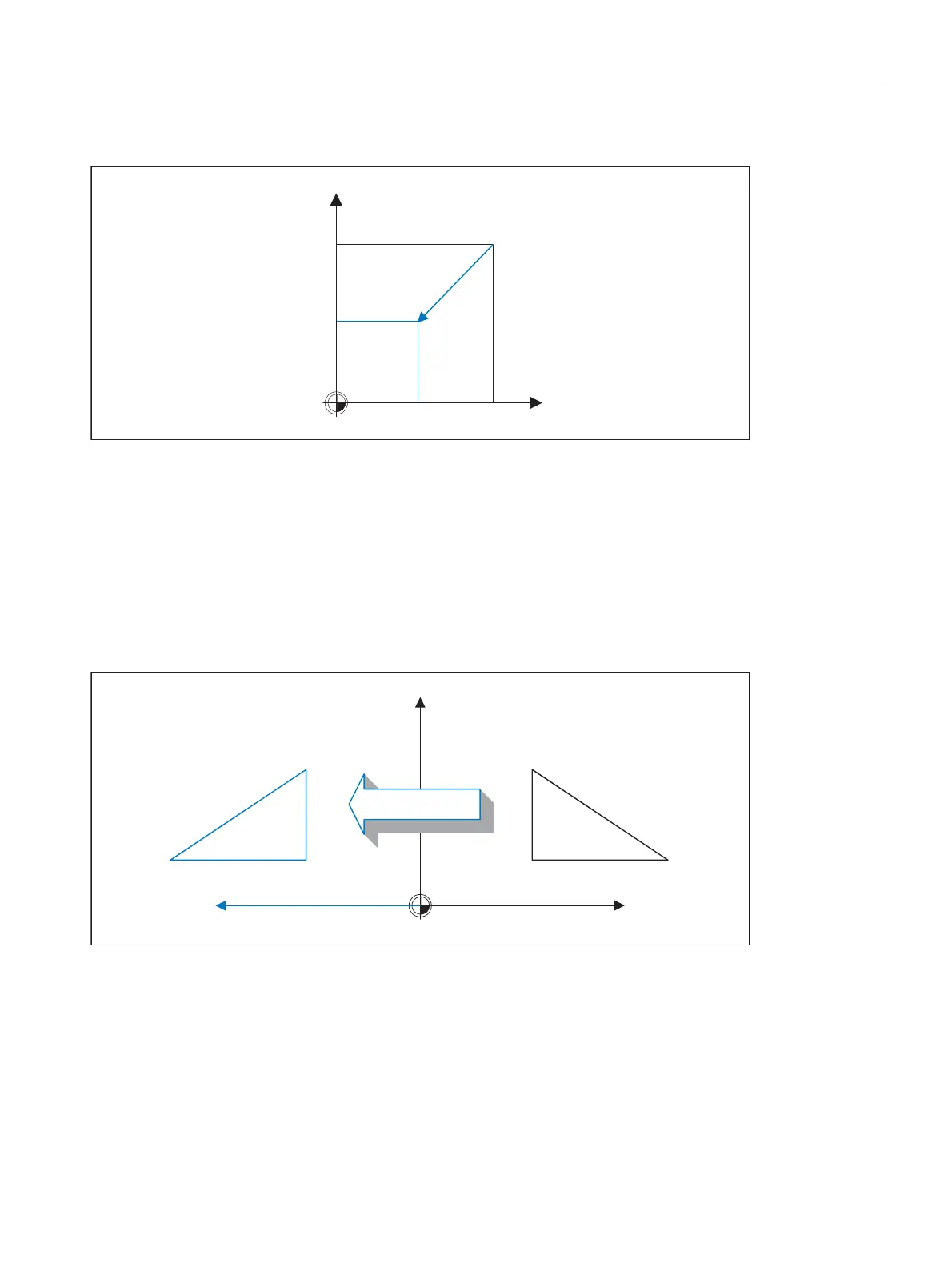

The program commands below are used to program the scaling:
$P_UIFR[1] = CSCALE(x,1,y,1)
SCALE x = 1y = 1
$P_UIFR[1,x,sc] = 1
10.5.2.5 Mirroring
Programming
The program commands below are used to program a mirroring:
$P_UIFR[1] = CMIRROR(x,1,y,1)
MIRROR x = 1y = 1
$P_UIFR[1,x,mi] = 1
\
[
