Siemens SINUMERIK 828D Function Manual

K2: Axis Types, Coordinate Systems, Frames
10.4 Coordinate systems
Basic Functions
712 Function Manual, 09/2011, 6FC5397-0BP40-2BA0
10.4.2 Machine coordinate system (MCS)
Machine coordinate system (MCS)
The machine coordinate system (MCS) is made up of all physically available machine axes.

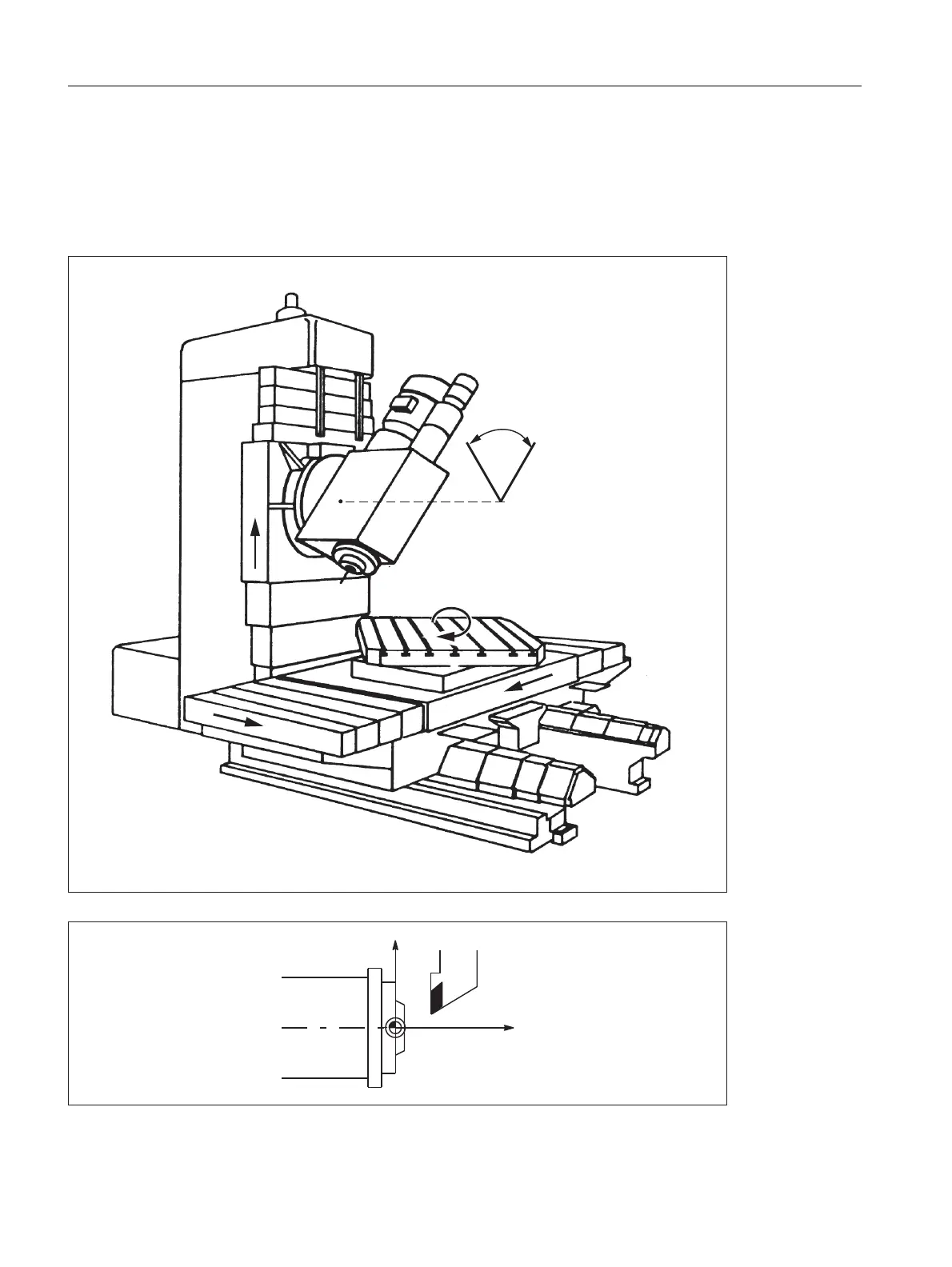

Figure 10-12 MCS with machine axes X, Y, Z, B, C (5axis milling machine)
Figure 10-13 MCS with machine axes X, Z (turning machine)
;
&
<
=

%
