Siemens SINUMERIK 828D Function Manual

W1: Tool offset
18.5 Tool radius compensation 2D (TRC)
Basic Functions
Function Manual, 09/2011, 6FC5397-0BP40-2BA0
1483

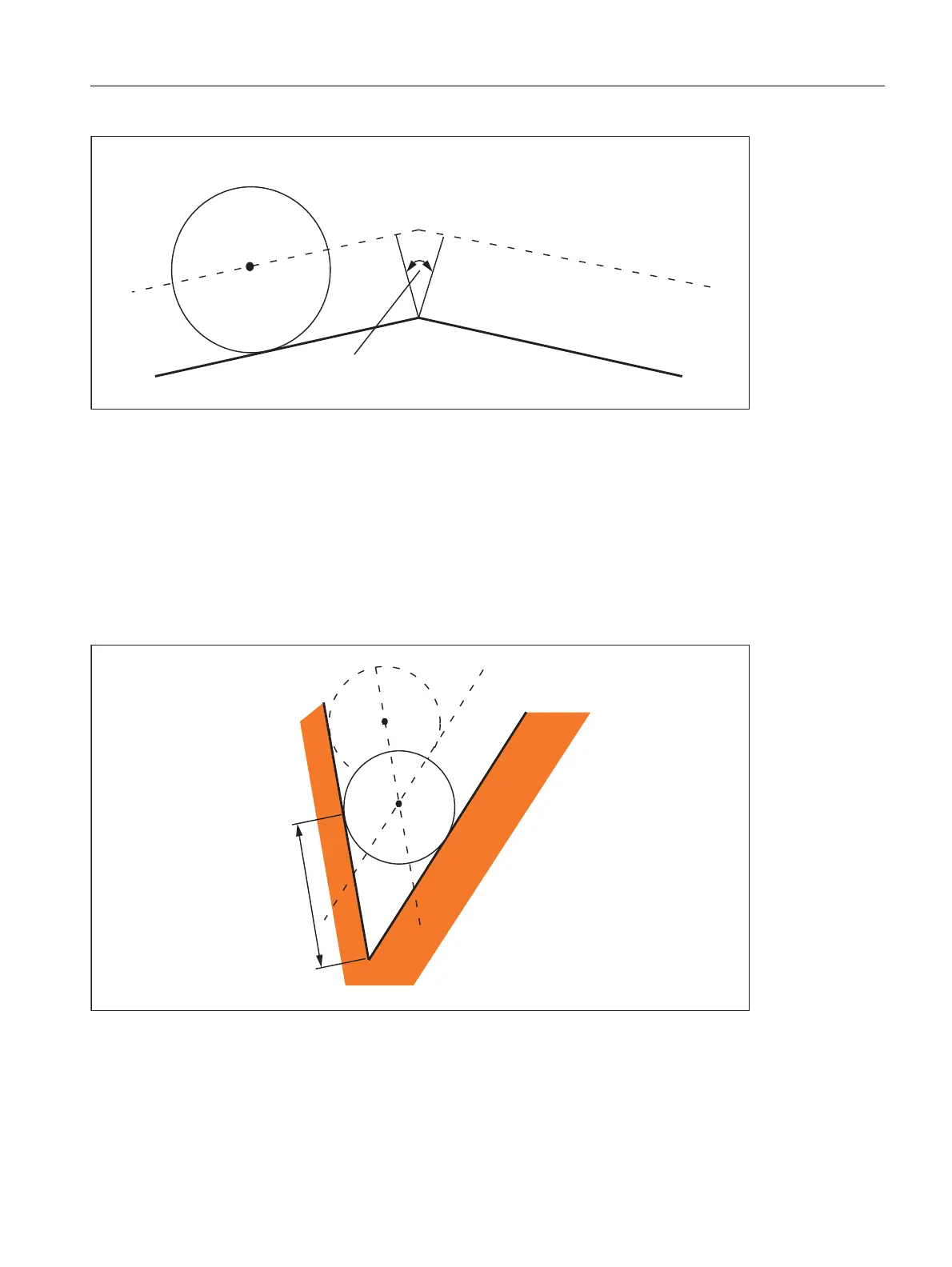

Figure 18-27 Example of automatic switchover to intersection
18.5.7 Compensation at inside corners
Intersection
If two consecutive blocks form an inside corner, an attempt is made to find a point at which the two equidistant
paths intersect. If an intersection is found, the programmed contour is shortened to the intersection (first block
shortened at end, second block shortened at beginning).
Figure 18-28 Example of a shortened contour
No intersection
In certain cases, no intersection is found between two consecutive blocks for inside corners (see figure below).
&RQWRXUDQJOH
%HORZFRQWRXUDQJOH
0'0&B&87&20B&859(B,16(57B/,0,7
QRWDWUDQVLWLRQFLUFOHEXWDQLQWHUVHFWLRQ
6KRUWHQHG
FRQWRXU
