P4: PLC for SINUMERIK 828D
14.4 Test and diagnostic functions
Basic Functions
Function Manual, 09/2011, 6FC5397-0BP40-2BA0
1143
Delete
Navigating
14.4.3.6 Data formats
The data format that you assign to a value defines how the value can be represented in the status chart.

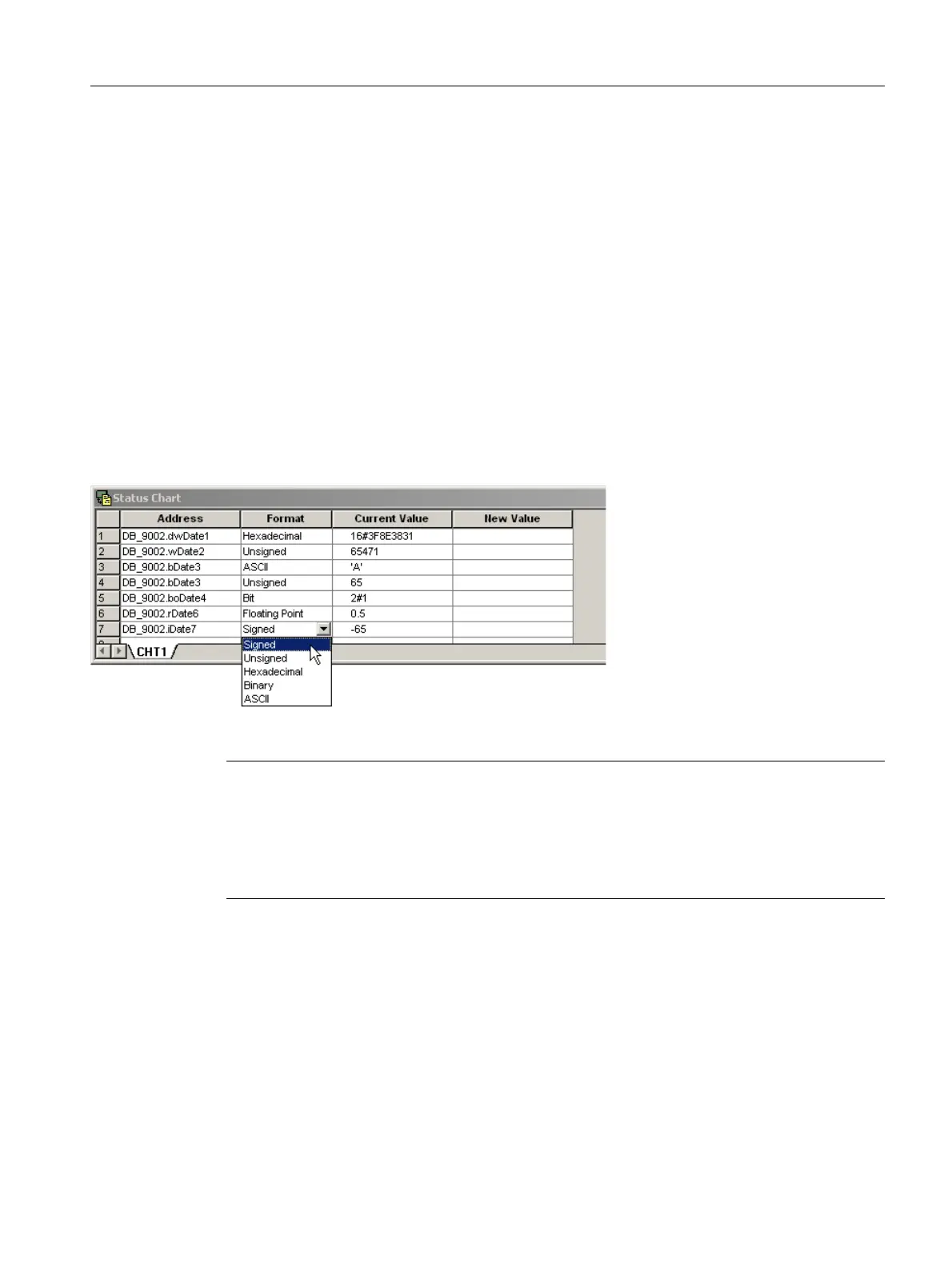

DB9002 is shown symbolically addressed in the diagram. The possible display formats for variables, type
INTEGER or WORD are shown using an example of block variable iData7.
To delete a field or a row:
1. Select the field or the row and click with the right mouse button.
2. Select the menu command "Delete" > "Selection"
If you delete a row, then the following rows shift upwards by one row.
To jump into the next field of the table:
• Press the <TAB> key.
Note
Bit and binary values are both introduced by the number 2 and the # symbol.
Hexadecimal values are introduced by the number 16 and the # symbol.
Bit values have one digit. Binary values have eight digits.
Signed and unsigned values use the basis 10 (decimal).
