Siemens SINUMERIK 828D Function Manual

W1: Tool offset
18.5 Tool radius compensation 2D (TRC)
Basic Functions
1490 Function Manual, 09/2011, 6FC5397-0BP40-2BA0
Example:

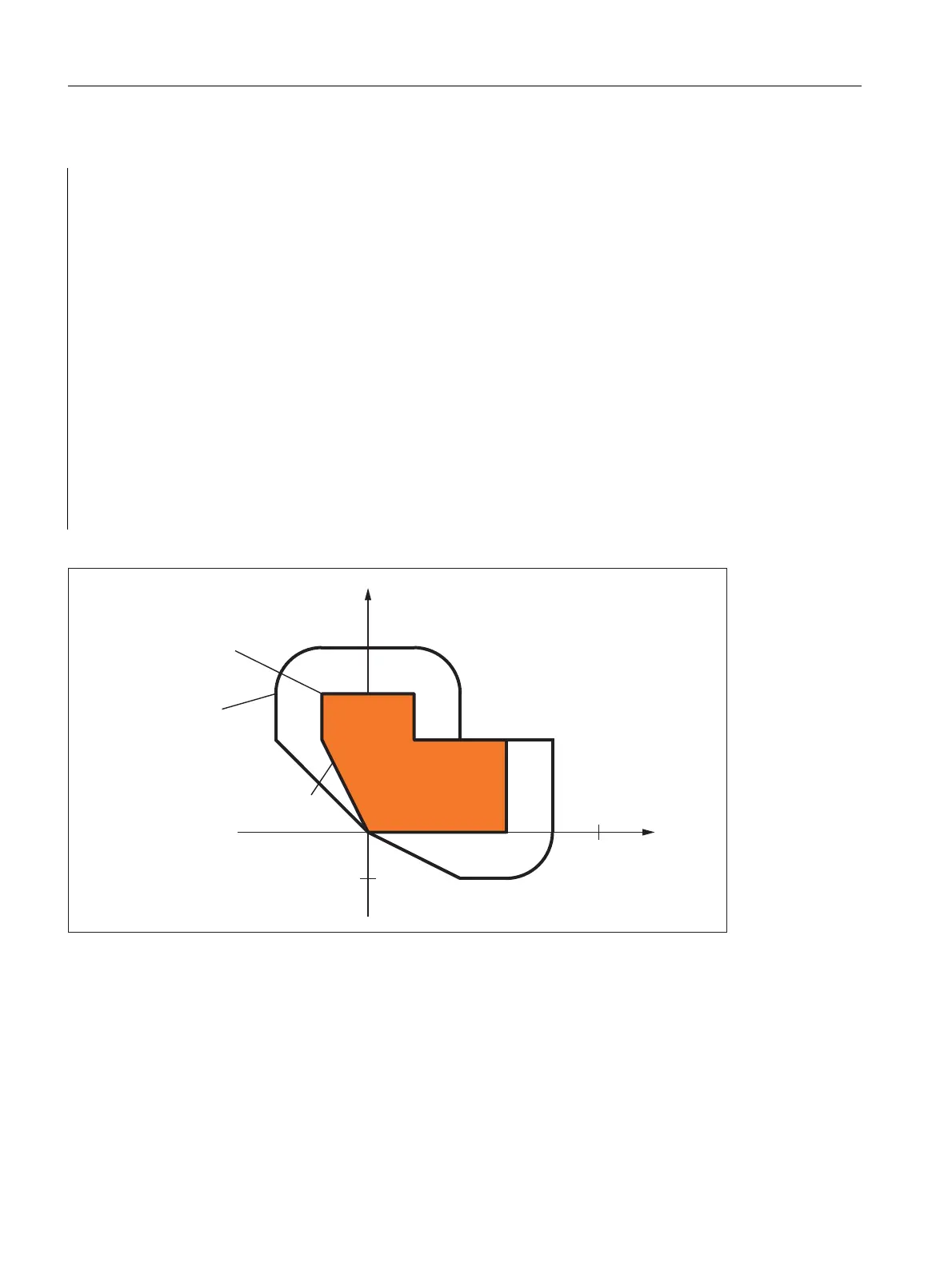

Figure 18-34 Sample program for contour suppression
N10 ; Definition of tool d1
N20 $TC_DP1[1,1] = 110 ; Type
N30 $TC_DP6[1,1]= ; Radius
N40
N50 X0 Y0 Z0 G1 G17 T1 D1 F10000
N60
N70 X20 G42 NORM
N80 X30
N90 Y20
N100 X10 CUTCONON ; Activate compensation suppression
N110 Y30 KONT ; On deactivation of contour suppression,
insert bypass circle, if necessary
N120 X-10 CUTCONOF
N130 Y20 NORM ; No bypass circle on deactivation of TRC
N140 X0 Y0 G40
N150 M30
&RQWRXUZLWKRXW75&
&RQWRXUZLWK75&


<
;
1
1
1
1
1
1
11
