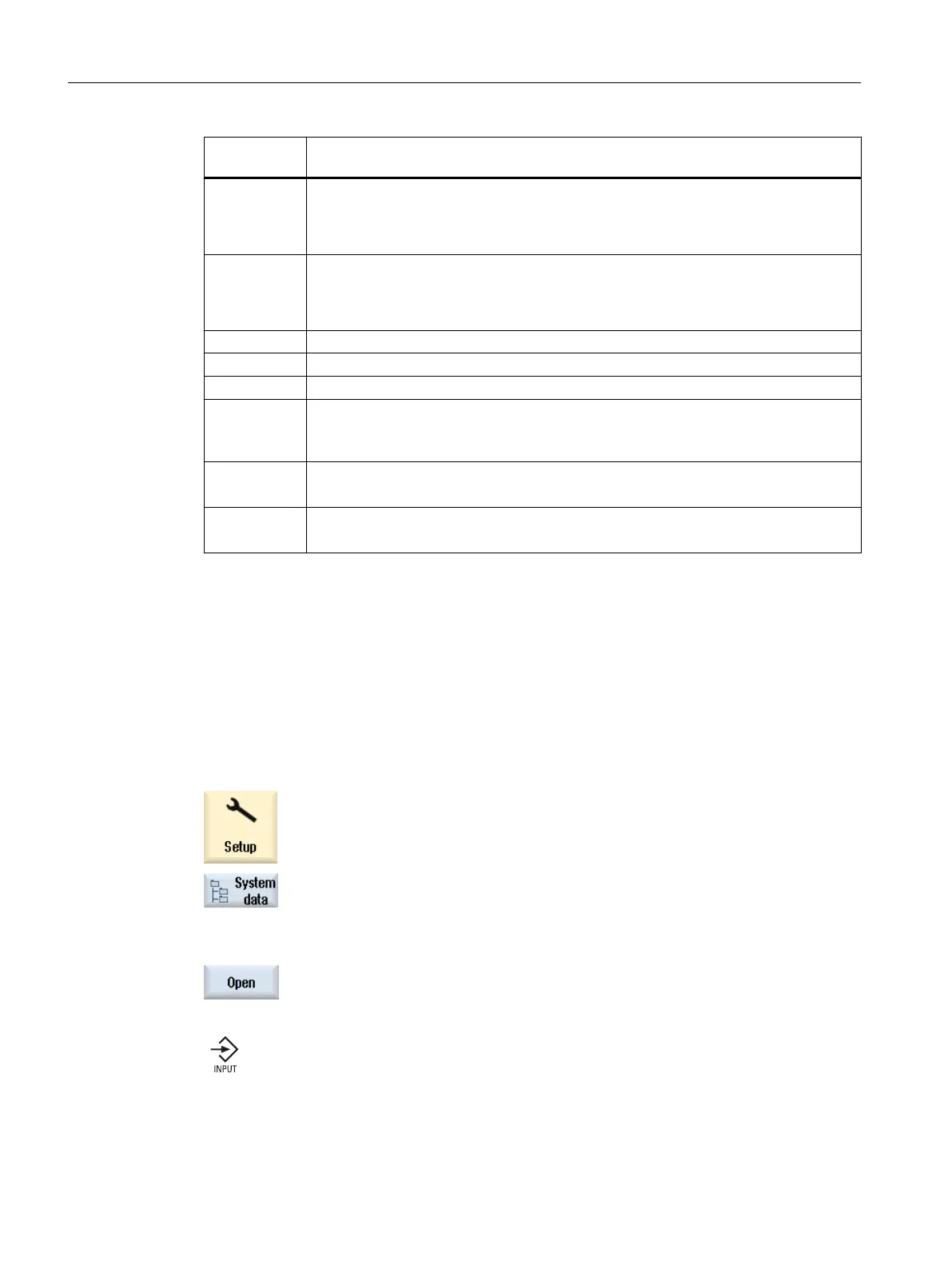

Parameter
specifier
Description
%7 Seventh parameter from the alarm data of the alarm source
Only for NCK alarms:
Third part (between the 2nd and 3rd separator) of the fourth parameter from the alarm
data of the alarm source.
%8 Eighth parameter from the alarm data of the alarm source
Only for NCK alarms:
Fourth part (between the 3rd and 4th separator) of the fourth parameter from the alarm
data of the alarm source.
%9 Ninth parameter from the alarm data of the alarm source.
%0 Tenth parameter from the alarm data of the alarm source.
%Z As for %1, in the case of S7-HiGraph alarms the step number of the graph is shown.
%K Specially for PLC alarms:
Second digit of the decimal alarm ID: 123456, corresponds to channel number (0 =
channel 10).
%A Specially for PLC alarms:
Third and fourth digit of the decimal alarm ID: 123456, corresponds to the axis number.
%N Specially for PLC alarms:
Fifth and sixth digit of the decimal alarm ID: 123456, corresponds to the signal number.
13.2.8 Opening error file
The errors that occur during the conversion are written to the "alarmtext_conversion.log" or
"oem_text_conversion.log" file.
File loc.: /user/sinumerik/hmi/log
Opening the error file
1. Select the "Start-up" operating area.
2. Press the "System data" softkey.
3. Open the "System CF card" folder.
4. Open the storage directory and select the required file.
5. To open the error file, press the "Open" softkey.
- OR -
Press the <INPUT> key.
Configuring alarms
13.2 Configuring alarm and message texts via alarm text files
SINUMERIK Operate (IM9)
276 Commissioning Manual, 12/2017, 6FC5397-1DP40-6BA1
