MCP
● IP address
● DNS name
● MCP index from the configuration
● MCP index requested from HMI
● MCP index requested from PLC
Procedure

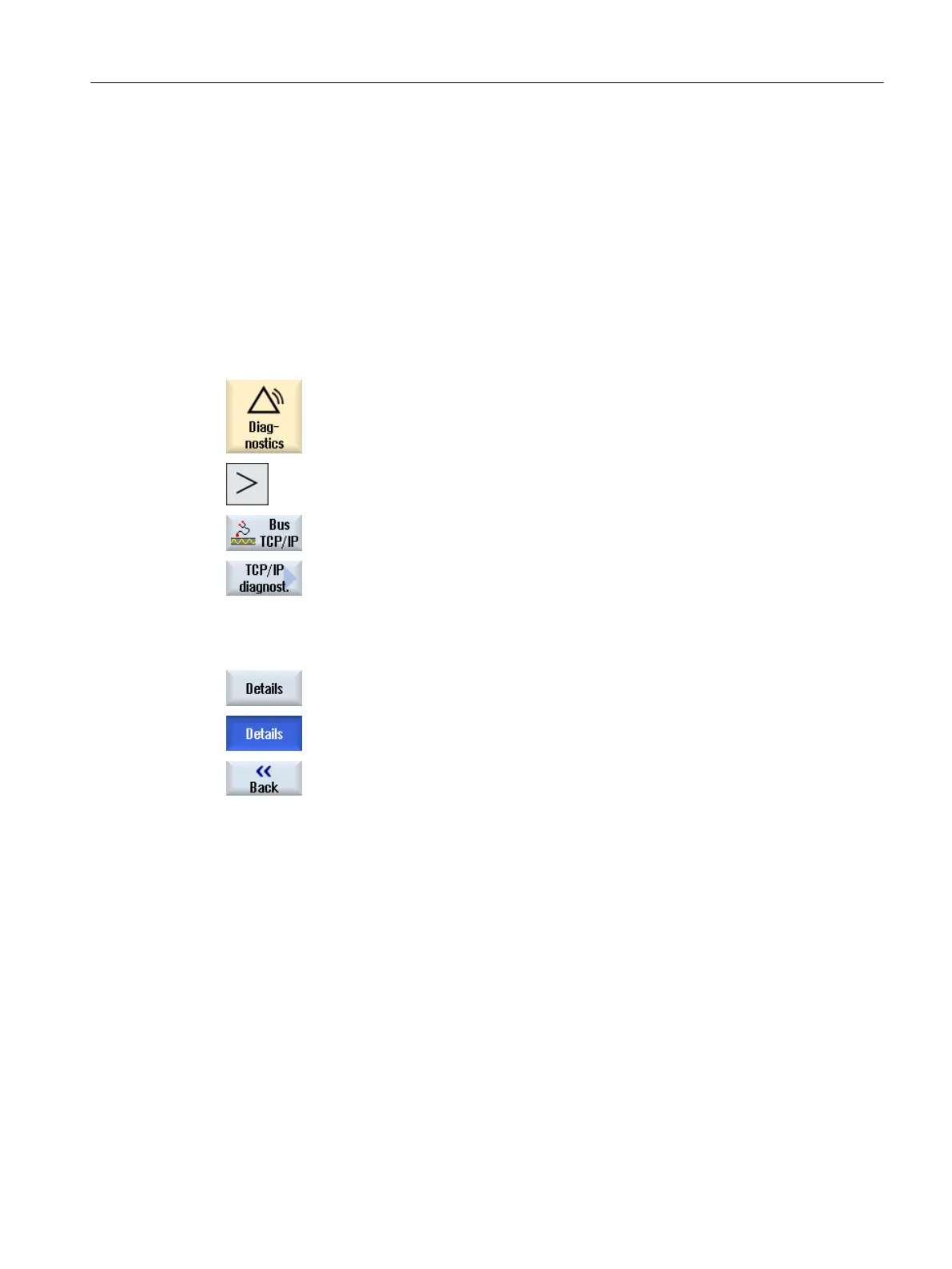

1. Select the "Diagnostics" operating area.
2. Press the menu forward key and the "Bus TCP/IP" softkey.
3. Press the "TCP/IP diagnostics" softkey.
The "TCP/IP Diagnostics" window opens and displays the current avail‐
ability of the network connections.
4. Position the cursor on the component for which you wish to display the
detailed information.
5. Press the "Details" softkey to display all available parameters of the con‐
figured network connections.
6. Press the "Details" softkey to hide the detailed display.
7. Press the "Return" softkey in order to exit the "TCP/IP diagnostics" win‐
dow and return to the "PROFIBUS diagnostics" window.
17.6.2 Error analysis
17.6.2.1 Performing error diagnostics
Precondition
Error analysis only functions for a PCU.
Configuring the network
17.6 Station-related network diagnostics
SINUMERIK Operate (IM9)
Commissioning Manual, 12/2017, 6FC5397-1DP40-6BA1 383
