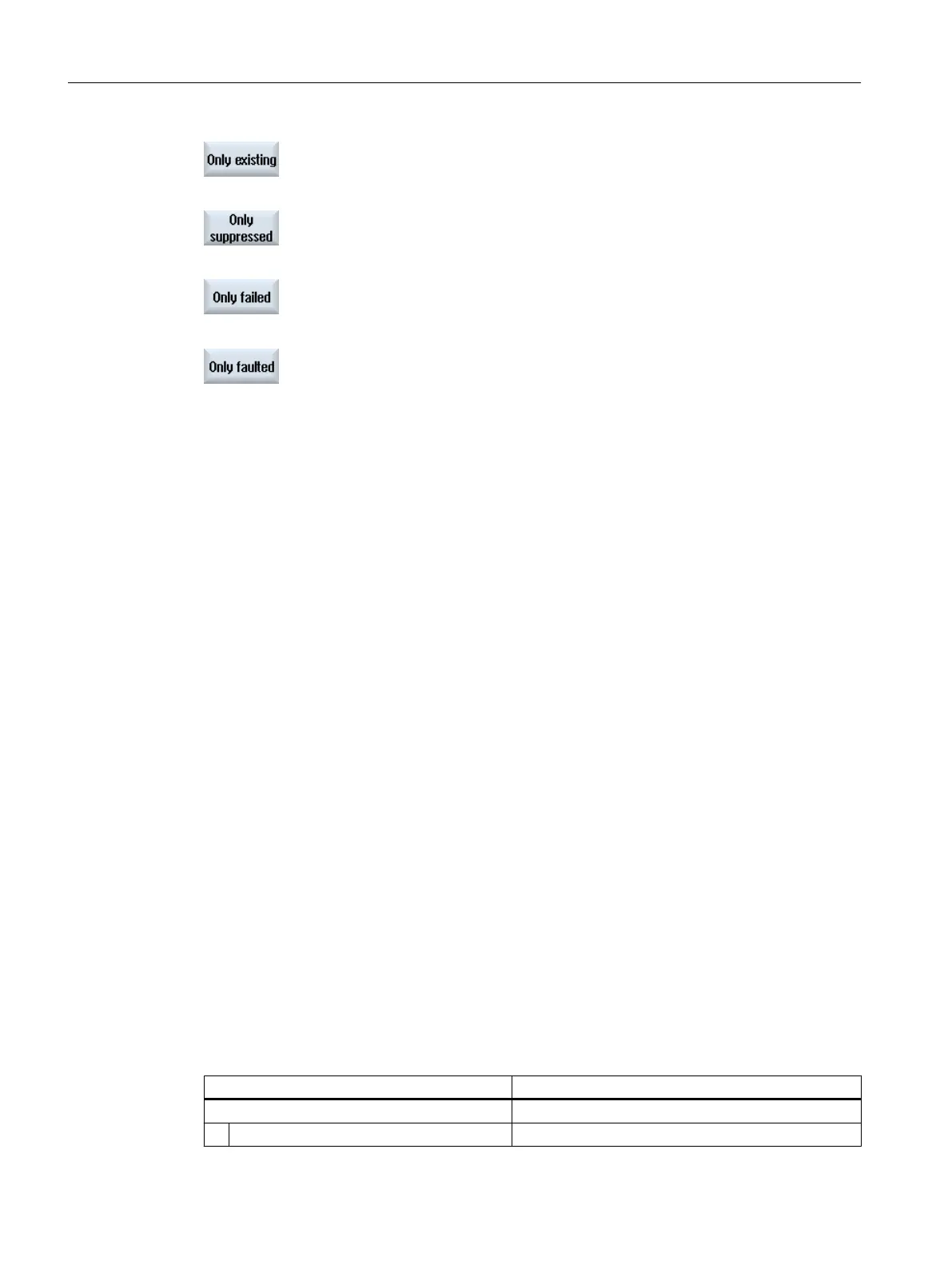

4. Press the "Available devices" softkey to display the diagnostics data
of the available modules.
- OR -
Press the "Suppressed devices" softkey to display the diagnostics
data of the suppressed modules.
- OR -
Press the "Failed devices" softkey to display the diagnostics data of
the failed modules.
- OR -
Press the "Faulty devices" softkey to display the diagnostics data of
the faulty modules.
18.13.3 Configuring the AS-i bus
You obtain a fast overview of the existing AS-Interface network using the AS-Interface (AS-i)
diagnostics. Permanent monitoring and an error search function provide you with the following
information:
● Status flags acc. to the AS-i specification
● States of the AS-i slaves
Precondition
● For AS-i diagnostics, it is absolutely necessary to use the FB_SL_COM PLC block from the
HMI PRO block library.
● The configuration file "sltlprodiaghmi.ini" must be available.
AS-i components
The following AS-i components are supported:
CP142-2 (Type ID 1)
CP343-2 (Type ID 2)
DP/AS-i link (Type ID 3)
DP/AS-i link 20E (Type ID 4)
DP-AS-i link Advanced (Type ID 6)
Diagnostic information
All of the AS-i components to be diagnosed must be parameterized in the "sltlprodiaghmi.ini"
configuration file.
Entry Description
[SKO]
ComboCount=x
Number of entries (x) in the selection list
Service and diagnostics
18.13 PROFIBUS/PROFINET and AS-i bus diagnostics
SINUMERIK Operate (IM9)
478 Commissioning Manual, 12/2017, 6FC5397-1DP40-6BA1
