1.12.2 Functions of the pushbutton
1.12.2.1 Sub-tags for the pushbutton
Tag caption
The programmer uses the caption tag to specify the button text to be displayed for the "not
pressed" state. In the default setting, the text is centered. The text alignment can be changed
with the alignment attribute. The following attribute values can be specified:
Attribute value Alignment
left Left-aligned
right Right-aligned
top Top
bottom Bottom
center Centered
If a different text is to be displayed for the "pressed" state, a second caption instruction must
be programmed with the pressed attribute and the true value.

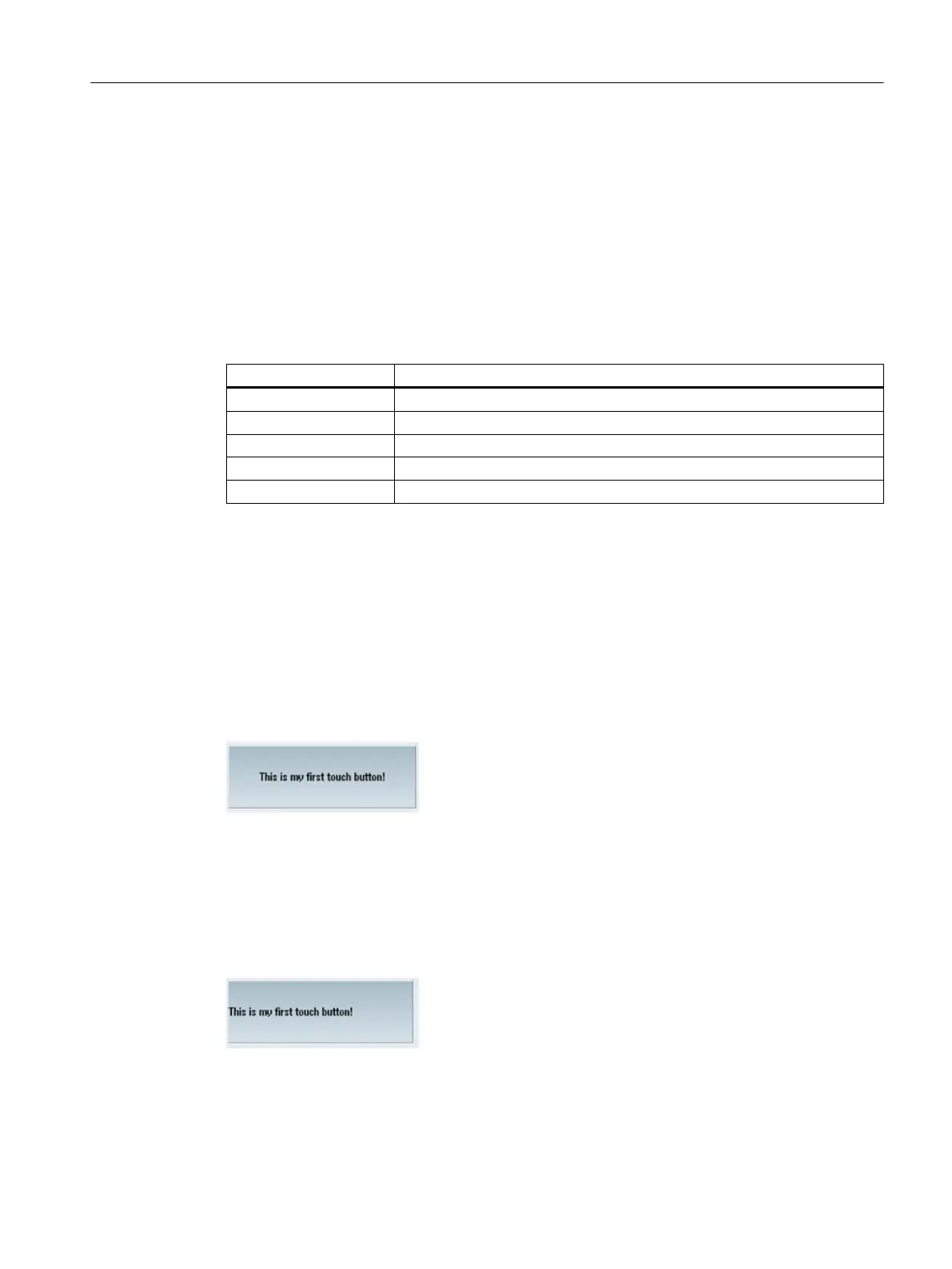

Syntax
Centered display
<control name="name" xpos="x position" ypos="y position"
fieldtype="pushbutton" >
<caption>Button text</caption>
</control>
Left-aligned display
<control name="name" xpos="x position" ypos="y position"
fieldtype="pushbutton" >
<caption alignment= "left">Button text</caption>
</control>
Generating user dialogs
1.12 Configuring your own buttons
Easy XML
Programming Manual, 12/2017, 6FC5397-1DP40-6BA1 149
