Wiring and Device Connections
24
TPI-PRO-DVI - Instruction Manual
Wiring and Device Connections
Overview
The only physical differences between the TPI-PRO-DVI-4 and TPI-PRO-DVI-2 are the number of VIDEO/VGA/DVI Inputs on the
rear panel (and their associated Input LEDs on the front panel), and the number of USB Source Interface ports on the rear panel.
The TPI-PRO-DVI-4 features four DVI Inputs/Input LEDs and four USB Source Interface ports.
The TPI-PRO-DVI-2 features two DVI Inputs/Input LEDs and four USB Source Interface ports.
Front Panel Components
NOTE: FIG. 4 shows the TPI-PRO-DVI-4, with four Input LEDs (which correspond to VIDEO/VGA/DVI Inputs 1-4 on the rear panel).
The TPI-PRO-DVI-2 has two Input LEDs, corresponding to VIDEO/VGA/DVI Inputs 1-2.
Rear Panel Components
NOTE: FIG. 5 shows the TPI-PRO-DVI-4, with four VIDEO/VGA/DVI Inputs and four USB (Type-B) Source Keyboard/Mouse Ports. The
TPI-PRO-DVI-2 has two VIDEO/VGA/DVI Inputs and two USB (Type-B) Source Keyboard/Mouse Ports.

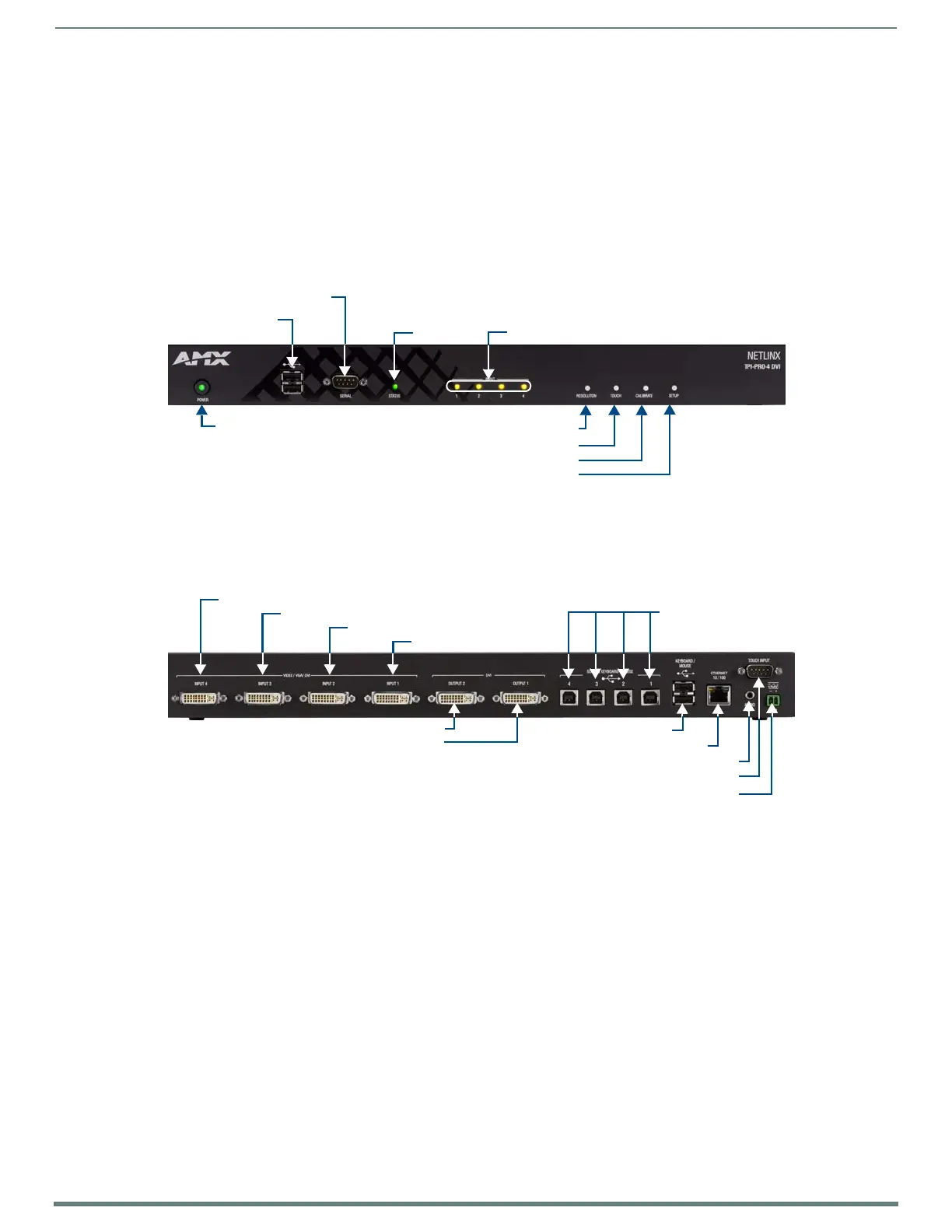

FIG. 5
Front Panel Components (TPI-PRO-DVI-4 shown)
FIG. 6 Rear Panel Components (TPI-PRO-DVI-4 shown)
Power switch/LED
Status LED
2 USB (Type-A)
Input 1-4 LEDs
Serial (Configuration) port
Input ports
Button - RESOLUTION
Button - TOUCH
Button - CALIBRATE
Button - SETUP
RS-232 Touch Input port
Audio (Stereo) Output
Ethernet (RJ-45) port
Power Connector
VIDEO/VGA/DVI Input 4
VIDEO/VGA/DVI Input 3
VIDEO/VGA/DVI Input 2
VIDEO/VGA/DVI Input 1
DVI Output 2
DVI Output 1
USB (Type-B) Source
Keyboard/Mouse
Ports 1-4
USB (Type-A) Inputs
