TPI Configuration Pages
52
TPI-PRO-DVI - Instruction Manual
TPI Conf iguration Pages
Overview
This section describes each of the configuration pages available on the TPI, and the options contained in each. The main pages are
accessed via the four pushbuttons on the front panel (FIG. 52), while several secondary setup pages are accessed via buttons
contained in the Main Pages.
NOTE: In order to configure the TPI, you’ll need to have a touch device as well as an output display device connected, so that you can
view and navigate the pages and make selections and text entries. See the Wiring and Device Connections section on page 24 for
details.
Resolution Setup Page
Press the RESOLUTION pushbutton on the front panel (see FIG. 52) to access the Resolution Setup Page (FIG. 53).
The options on this page allow you to adjust the TPI’s output resolution/refresh rate setting.
The TPI’s output resolution must match the output resolution and refresh rate set on the connected touch monitor.
The default TPI output resolution is 1280 x 1024 @ 60Hz.
The maximum output resolution setting is 1920x1200 @ 60Hz.
For a listing of available output resolutions and refresh rates, see the Supported Output Modes section on page 156.
Refer to the Setting the Output Resolution section on page 38 for instructions on adjusting the TPI’s output resolution. Also see the
ORES Send Command on page 109.

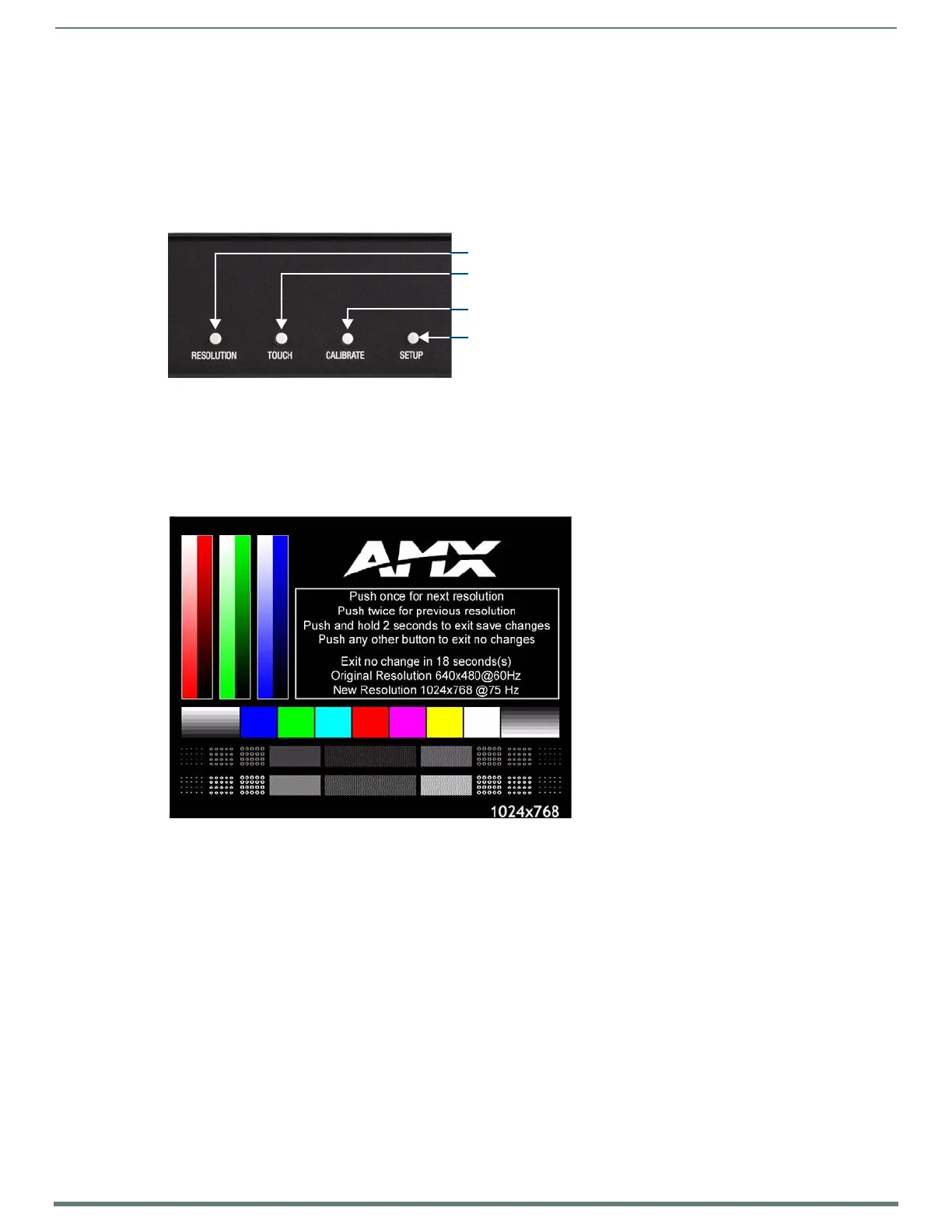

FIG. 52
Configuration Pushbuttons (front panel)
FIG. 53 Resolution Setup page
Press to open the Resolution Setup page
Press to open the Panel Information page
Press to open the Calibration page
Press to open the Setup page
(including Touch Input Driver setting / information)
To Next Page
