Wiring and Device Connections
30
TPI-PRO-DVI - Instruction Manual

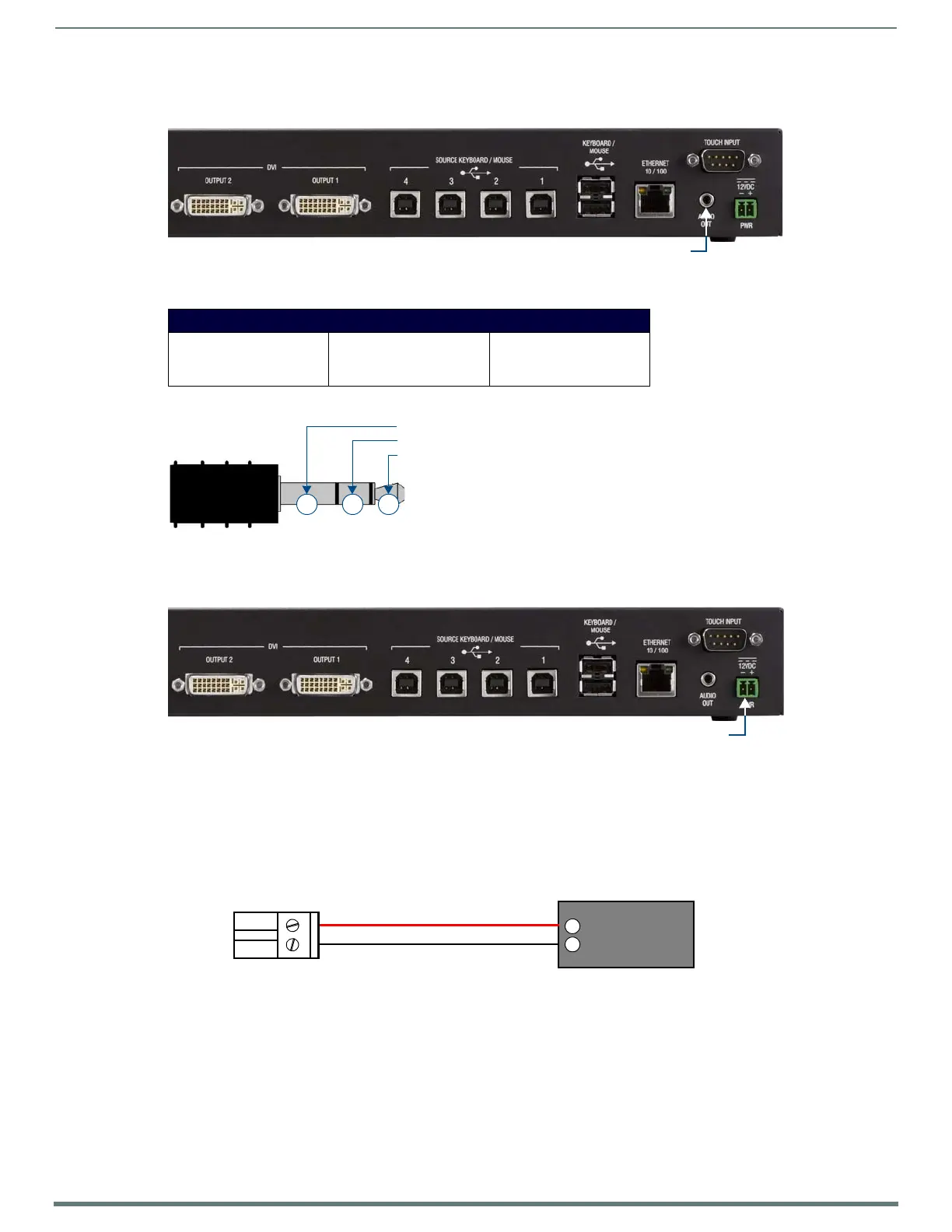

AUDIO OUT Connector
The AUDIO OUT connector provides analog line-level stereo audio output, via a 3.5mm mini-stereo jack (FIG. 14).
The TPI supports WAV and MP3 audio types, at the following sample rates:
FIG. 19 describes the AUDIO OUT connection pinouts:
12VDC PWR (Power) Connector
The TPI requires a 12 VDC-compliant power supply to provide power via the 2-pin 3.5 mm mini-Phoenix PWR connector (FIG. 20).
NOTE: The TPI will power ON when the power supply is connected. Once power is applied, use the Power button to toggle the unit off
and on.
NOTE: Do not connect power to the TPI-PRO-DVI until wiring is complete. These units should only have one source of incoming power.
Using more than source of power to the panel can result in damage to the internal components and a possible burn out.Apply power
to the panels only after installation is complete.
To use the 2-pin 3.5 mm mini-Phoenix connector for use with a 12 VDC-compliant power supply, the incoming PWR and GND wires
from the external power supply must be connected to their corresponding locations on the connector (FIG. 21).
NOTE: Never pre-tin wires for compression-type connections.
Constant current draw: 2.6 A @ 12 VDC
The PSN6.5 Power Supply (FG423-40 - not included) is recommended, to accommodate all possible configurations and
respective power draws.
FIG. 18
ETHERNET 10/100 (RJ-45) Port
Supported WAV / MP3 Audio Sample Rates
• 48000Hz
• 44100Hz
• 32000Hz
• 24000Hz
•22050Hz
• 16000Hz
• 12000Hz
• 11025Hz
• 8000Hz
FIG. 19 AUDIO OUT - pinout configuration
FIG. 20 12VDC PWR (Power) Connector
FIG. 21 NetLinx power connector wiring diagram
AUDIO OUT Connector
321
GND
R
L
12VDC PWR Power Connector
PWR +
GND -
TPI-PRO-DVI Power Supply
+
-
