TPI-PRO-DVI - Instruction Manual
Protected Setup - G4 Web Control Page
Select G4 Web Control on the Protected Setup Page (see FIG. 67 on page 64) to access the G4 Web Control Page (FIG. 70).
The options on the G4 Web Control page center around enabling and disabling both the display and control of your TPI, via the web
(FIG. 70). An external PC running a VNC client (installed during the initial communication to the G4 device) makes this possible.
Each G4 device supports the open standard Virtual Network Computing (VNC) interface containing a VNC server, which allows it to
accept a connection from any other device running a VNC client. Once a connection is established to that target device, the client
can control the TPI remotely.
The TPI supports up to four G4 Web Control users simultaneously connected to the TPI.
Refer to the Using G4 Web Control® section on page 136 for more detailed instructions on how to use the G4 Web Control page
with the web-based NetLinx Security application.

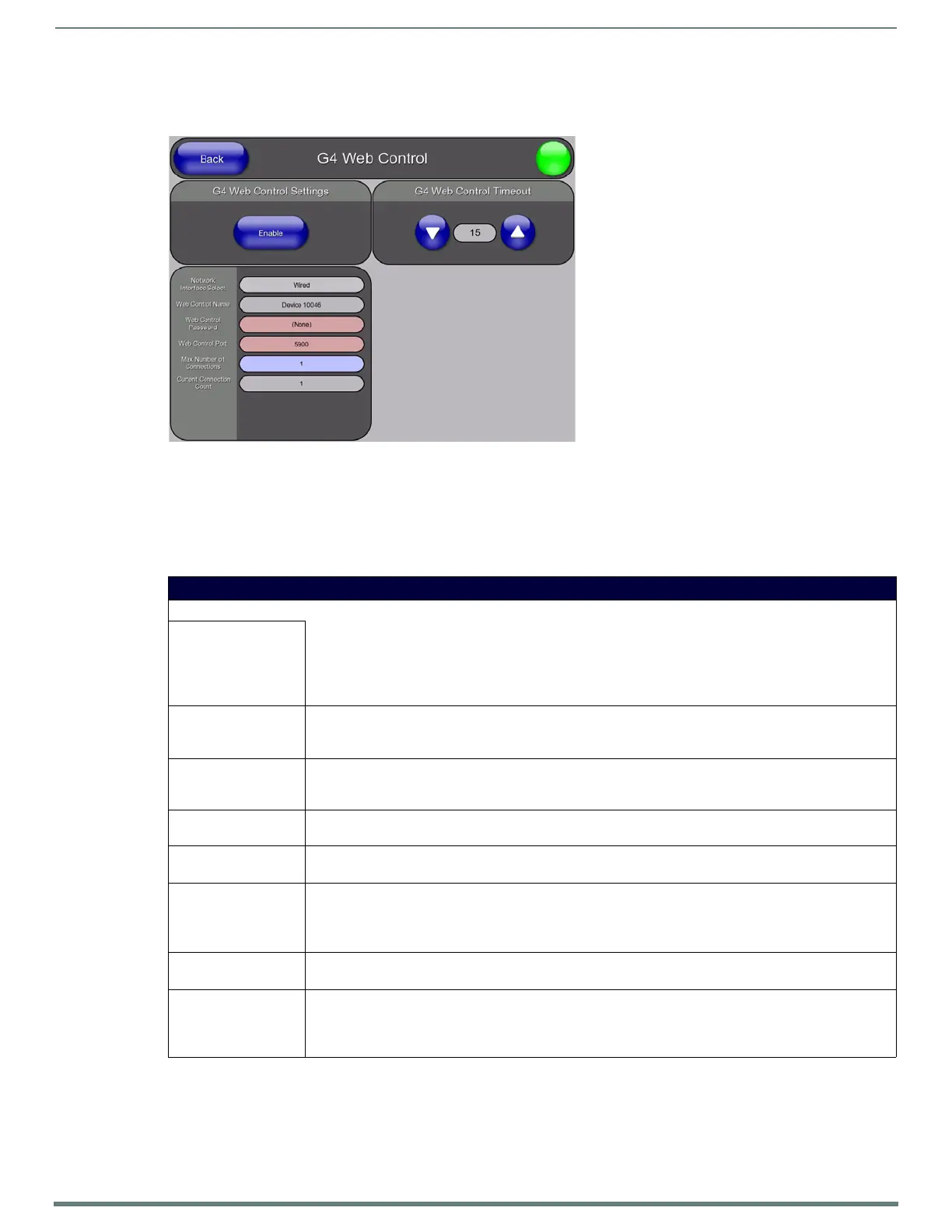

FIG. 70
Protected Setup - G4 Web Control Page
Protected Setup - G4 Web Control Page
G4 Web Control Settings
• Enable/Enabled: The Enable/Enabled button toggles between the two G4 Web Control activation settings:
• Enable - deactivates the G4 Web Control feature on the TPI.
• Enabled - activates the G4 Web Control feature on the TPI and allows an external PC running a VNC client to
access the unit, after the remaining fields are configured.
Default = Enabled.
• Network Interface
Select
A read-only field that displays the method of communication to web.
• Wired is selected because it is the only method of communication to the web (via a direct Ethernet
connection). This is a default setting since no wireless interface is available.
• Web Control Name: The unique alpha-numeric string that is used as the display name of the TPI within the Web Control tab of the
NetLinx Security browser window. Set the name through the Device Name field on the Protected Setup Page.
This Web Control tab displays a G4 icon alongside the link to the Web Control Name given to this TPI.
•Web Control
Password:
Allows you to enter the G4 Authentication session password associated for VNC web access of this TPI.
• Web Control Port: Allows you to enter the port value that the VNC Web Server runs on.
•Default = 5900.
•Max Number of
Connections:
Allows you view and set the maximum number of users (up to four) that can be simultaneously connected to the
target TPI via G4 Web Control. Press to cycle through the selection options.
• Range = 1-4.
•Default = 1.
• Current Connection
Count:
This read-only field displays the current number of users connected to the target TPI via the web.
Note: This value cannot exceed the Maximum number field.
G4 Web Control
Timeout:
Sets the length of time (in minutes) the TPI can remain idle (no cursor movements) before the session is closed
and the user is disconnected.
• Range = 0-240 minutes (0 = G4 Web Control never times-out)
•Default = 15
