Protected Setup Page
73
TPI-PRO-DVI - Instruction Manual
Protected Setup (Tools) - Panel Statistics Page
Select Panel Statistics from the Tools slider (see FIG. 74) to access the Panel Statistics Page (FIG. 76):
The options on the Panel Statistics page allow you to track the connection status (including ICSP messages, Blink messages,
Ethernet connection statistics, and Wireless connection statistics) for the panel.

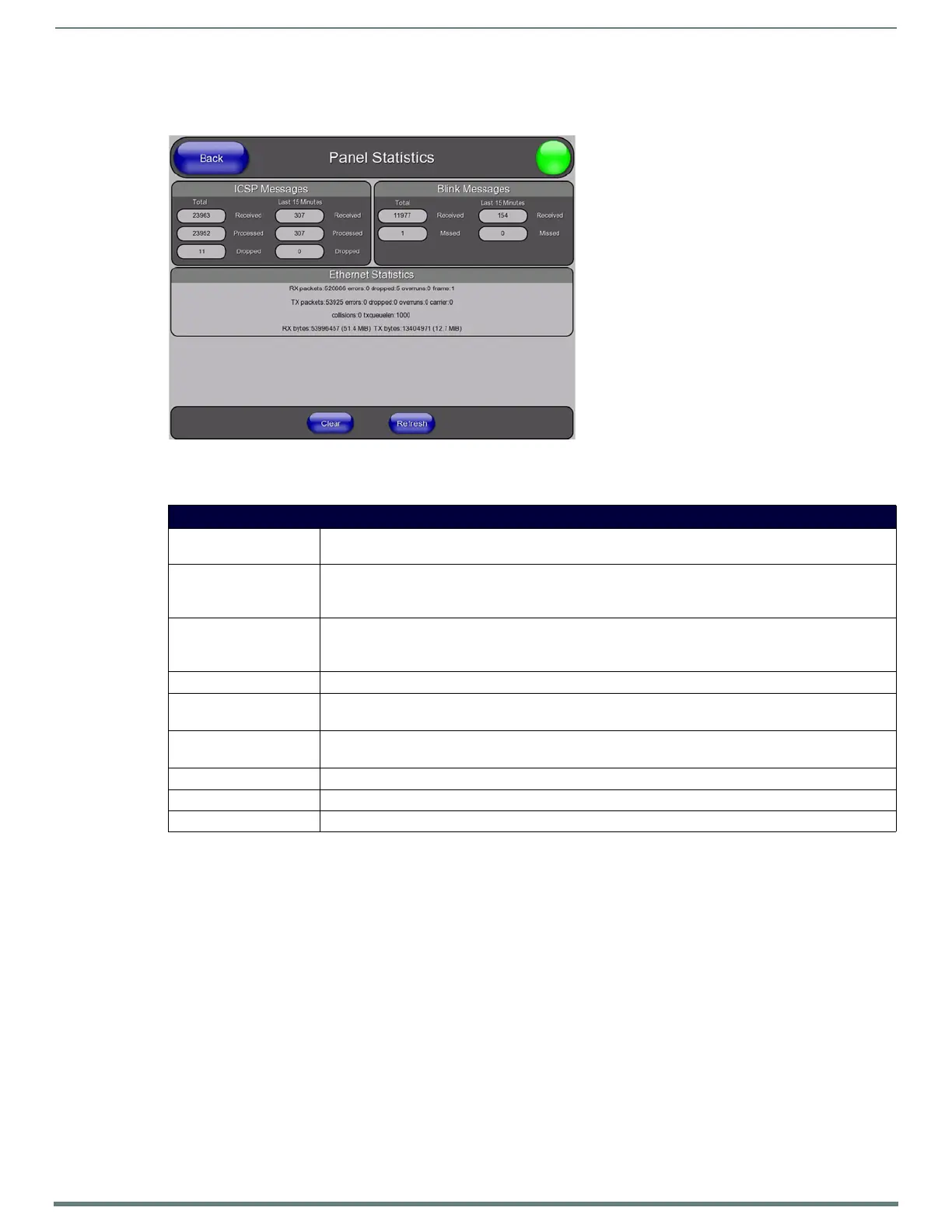

FIG. 76
Protected Setup (Tools) - Panel Statistics Page
Protected Setup (Tools) - Panel Statistics Page
ICSP Messages:
Messages sent between the master and the touch panel; it is the protocol they use to communicate to each
other.
•Total: •Received - The total ICSP messages received by the panel.
• Processed - The total ICSP messages processed by the panel.
• Dropped - The total ICSP messages dropped by the panel.
• Last 15 Minutes: • Received - The total ICSP messages received by the panel in the last 15 minutes.
• Processed - The total ICSP messages processed by the panel in the last 15 minutes.
• Dropped - The total ICSP messages dropped by the panel in the last 15 minutes.
Blink Messages:
The master sends this message once every 5 seconds to all connected devices.
•Total: •Received - The total Blink messages received by the panel.
• Missed - The total Blink messages missed by the panel.
• Last 15 Minutes: • Received - The total Blink messages received by the panel in the last 15 minutes.
• Missed - The total Blink messages missed by the panel in the last 15 minutes.
Ethernet Statistics:
The Ethernet connection statistics for the panel.
• Clear Clears all panel connection statistics.
• Refresh Refreshes all panel connection statistics.
