TPI-PRO-DVI - Instruction Manual

Protected Setup - System Settings Page

Select System Settings on the Protected Setup Page (see FIG. 67 on page 64) to access the System Settings page (FIG. 68).

The options on the System Settings page set the DNS Address information with its corresponding IP communication parameters,

NetLinx Master communication settings, and reads the device number assigned to the G4 device.

Red fields are user-editable

Blue fields cycle through available choices

Grey fields are read-only

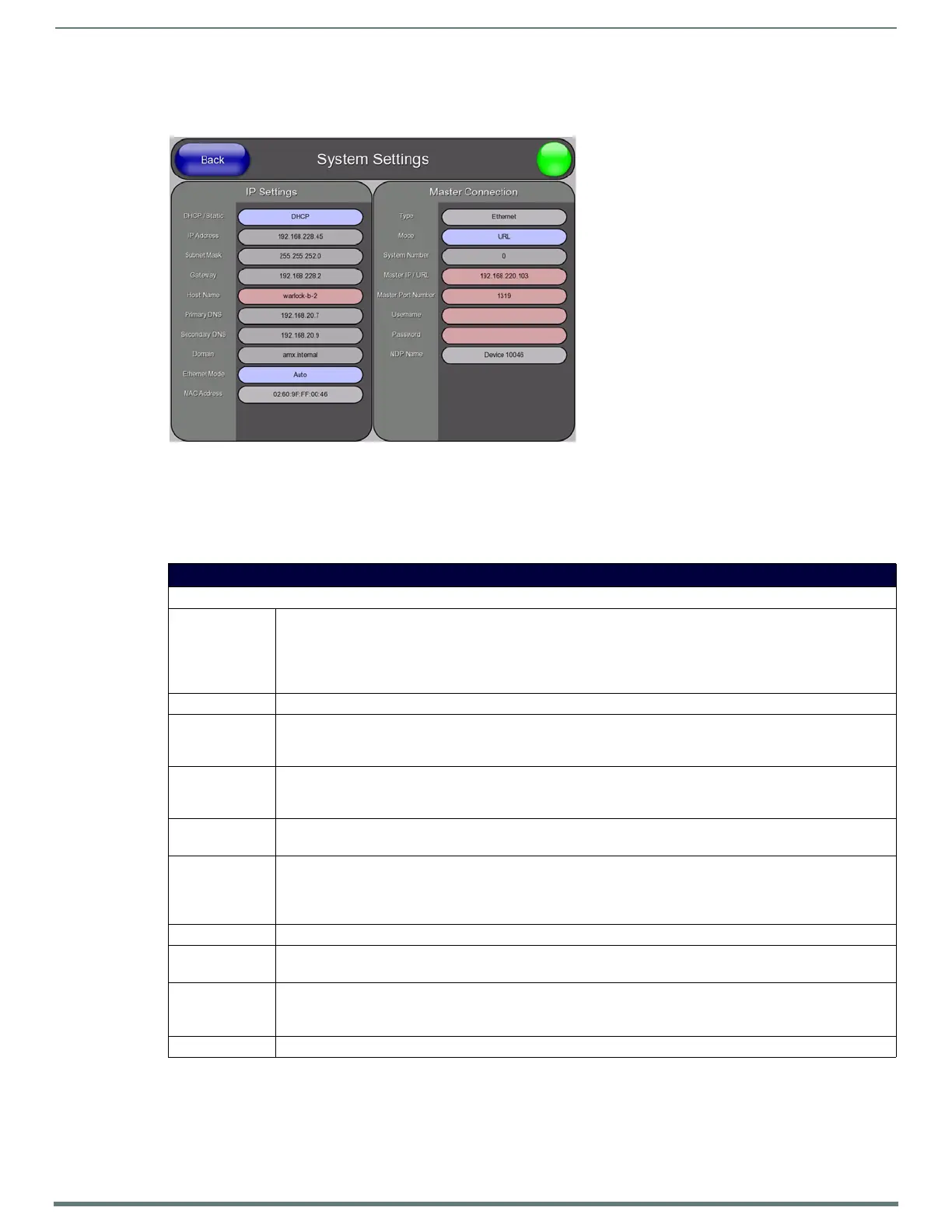

FIG. 68

Protected Setup - System Settings Page

IP Settings:

•DHCP/

Static:

Sets the G4 device to either DHCP or Static communication modes.

• DHCP (Dynamic Host Configuration Protocol) assigns IP Addresses from client stations logging onto a TCP/IP

network via a DHCP server.

• Static IP is a permanent IP Address that is assigned to a node in a TCP/IP network.

•Default = DHCP

• IP Address: Sets the IP Address assigned to the TPI.

• Subnet Mask: Sets a subnetwork address to the TPI.

• Subnetwork mask is the technique used by the IP protocol to filter messages into a particular network segment

(Subnet).

• Gateway: Sets a gateway value to the TPI.

• Ga t e w a y is a computer that either performs protocol conversion between different types of networks/applications

or acts as a go-between two or more networks that use the same protocols.

• Host Name: Sets the host name of the TPI.

Note: If the Host Name is left blank, it will automatically resort to the default - "localhost".

• Primary DNS: Sets the address of the primary DNS server being used by the TPI for host name lookups.

• DNS (Domain Name System) is software that lets users locate computers on a local network or the Internet (TCP/IP

network) by host and domain.

• The DNS server maintains a database of host names for its’ domain and their corresponding IP Addresses.

• Secondary DNS: Sets the secondary DNS value to the TPI.

• Domain: Sets the unique name on the Internet to the TPI for DNS look-up.

• The TPI belongs to the DNS domain.

• Ethernet Mode: Sets the speed of the Ethernet connection to the TPI.

• The choices are: Auto (default), 10 Half Duplex, 10 Full Duplex, 100 Half Duplex, or 100 Full Duplex.

•Default = Auto. This setting is recommended for most situations.

• MAC Address: Displays a read-only field that is factory set by AMX for the built-in Ethernet interface.
