Configuring Communication Settings
51
TPI-PRO-DVI - Instruction Manual
NetLinx Master Ethernet IP Address - URL (UDP) Mode
In this mode, enter the System Number (zero for an unknown System Number) and the IP/URL of the Master (Master Port Number
is defaulted to 1319).
1. Press the Mode field until the option cycles to URL (UDP). By selecting URL (UDP), the System Number field becomes read-
only because the panel pulls this value directly from the communicating target Master.
2. Press the Master IP/URL field to open an on-screen keyboard, and enter the Master IP Address (obtained from the Diagnostics
- Networking Address dialog in the NetLinx Studio application).
3. Click Done to accept the new value and return to the System Configuration page.
4. Do not alter the Master Port Number value (this is the default value used by NetLinx).
5. Enter a username and password into their respective fields if the target Master has been previously secured.
6. Press the Back button to open the Protected Setup page.
7. Press the on-screen Reboot button to both save any changes and restart the TPI.
Rebooting the TPI
Changes made in the Setup pages are not incorporated until the TPI is rebooted.
Press the Reboot button on the Protected Setup page to reboot the TPI and incorporate all changes (FIG. 51).

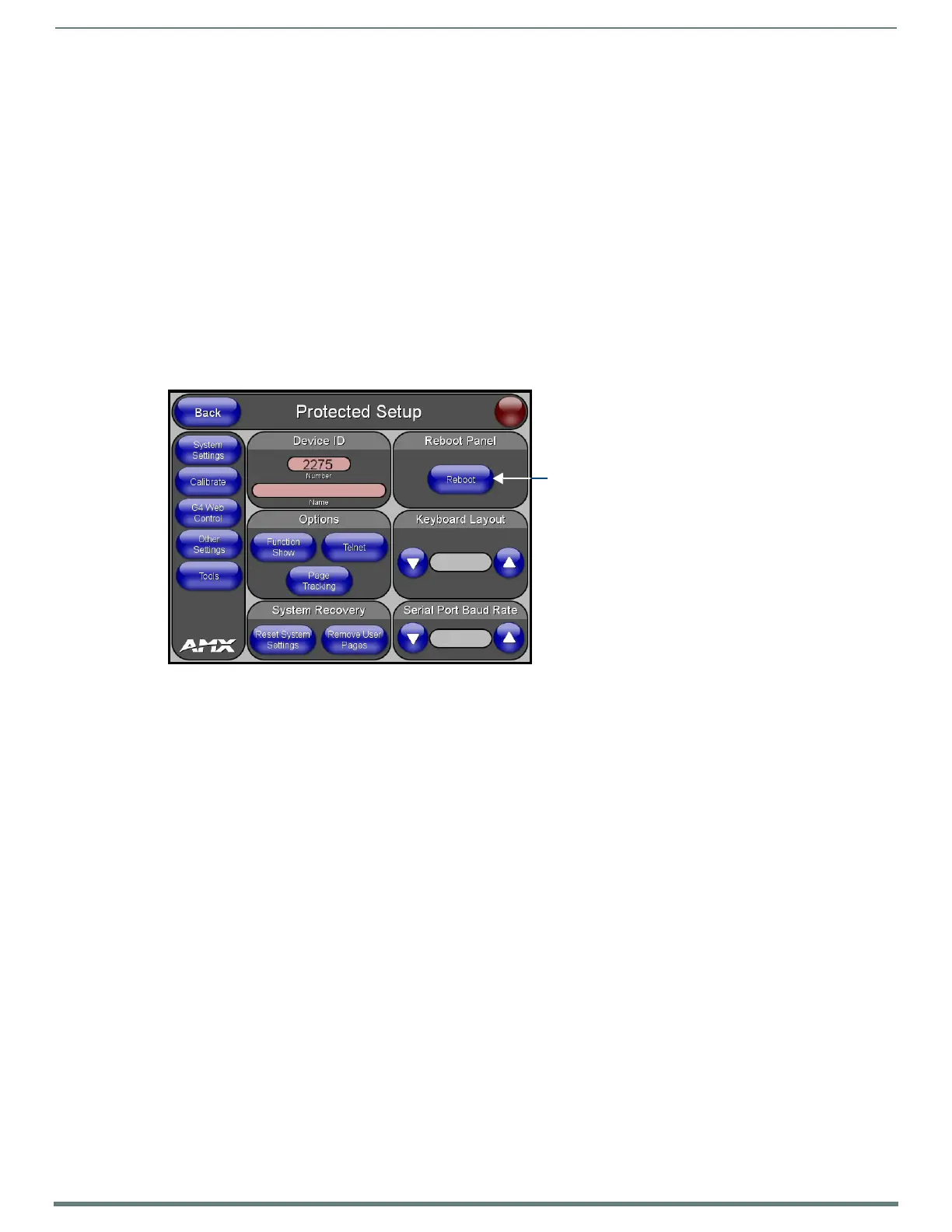

FIG. 51
Protected Setup page - Reboot Panel button
Press to reboot the TPI and
incorporate changes
