5.1 Input adjustment functions
5-5
Functions and
Operations

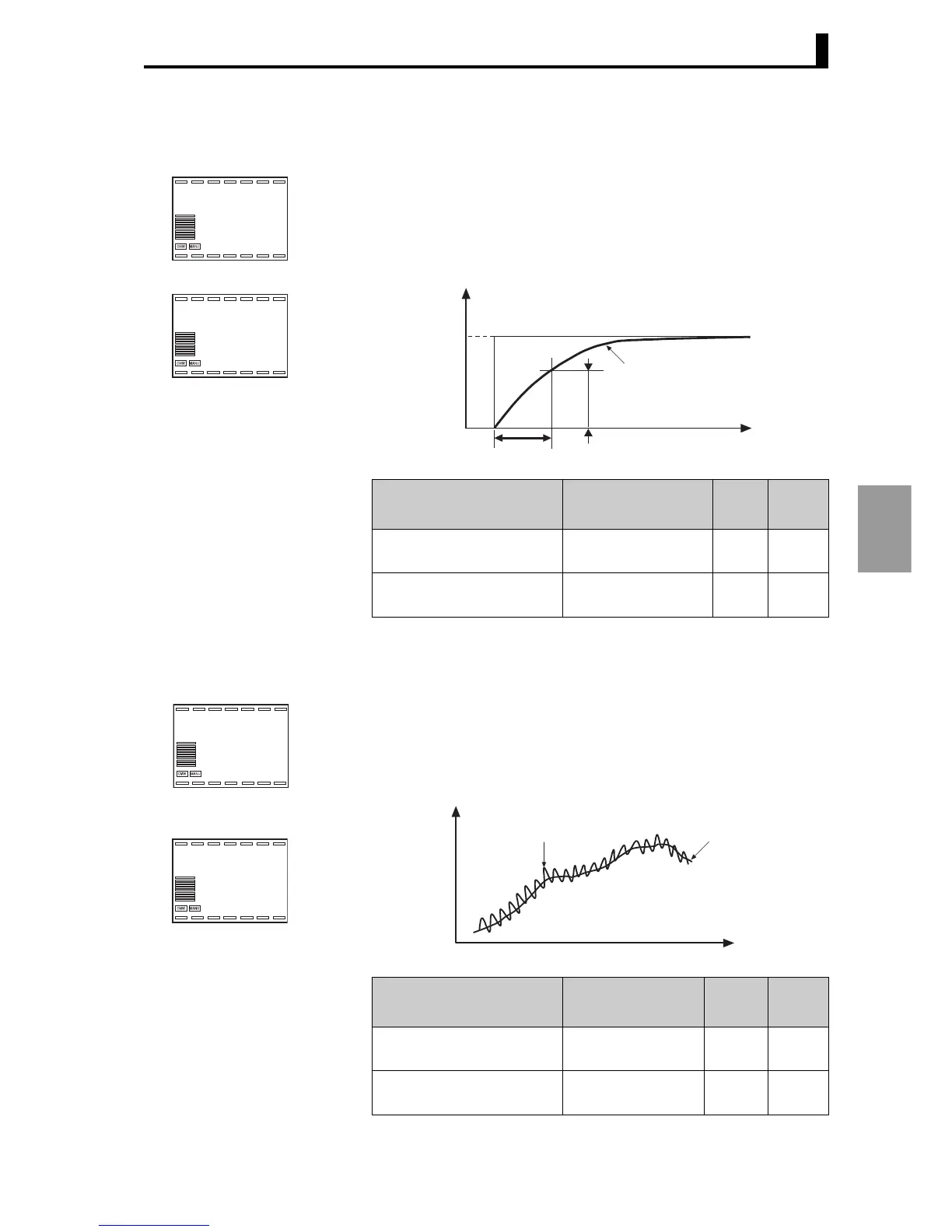

■ First order lag operation
• First order lag operation serves as a filter for each input. For a multi-
input type, the operation is set for each of inputs 1 to 4 in "First order
lag operation 1 - 4".
• To use first order lag operation, set "First order lag operation enable"
to "ON" (the initial setting is OFF). A time constant must also be set,
and this is selected so that the result of the operation is 0.63 times
the input data.
■ Move average
• The move average operation reduces sudden changes in the input
due to noise and other factors, and can be enabled for each input.
• To use the move average operation, set "Move average enable" to
"ON" (the initial setting is OFF).
• A count must also be selected in the "Move average" setting. Selec-
tions are 1, 2, 4, 8, 16, and 32 times.
Setting data Setting range Units
Default
value
First order lag operation
1 to 4: enable
OFF: Disabled,
ON: Enabled
− OFF
First order lag operation
1 to 4 time constants
0.0 to 999.9 Sec 0.0
1st order lag
operation 1: enabled
lag.1
off
l.2
1st order lag operation
1 time constant
lagp.1
0.0
l.ad2
Input data
Operation result
A
0.63A
Time
constant
Time
Setting data Setting range Units
Default
value
Move average
1 to 4: enable
OFF: Disabled,
ON: Enabled
− OFF
Move average 1 to 4 1, 2, 4, 8, 16, 32
Times
(count)
1
Move average
operation 1 enabled
maV.1
off
l.2
Move average 1
maVp.1
1
l.ad2
Input data
Operation result
Time
