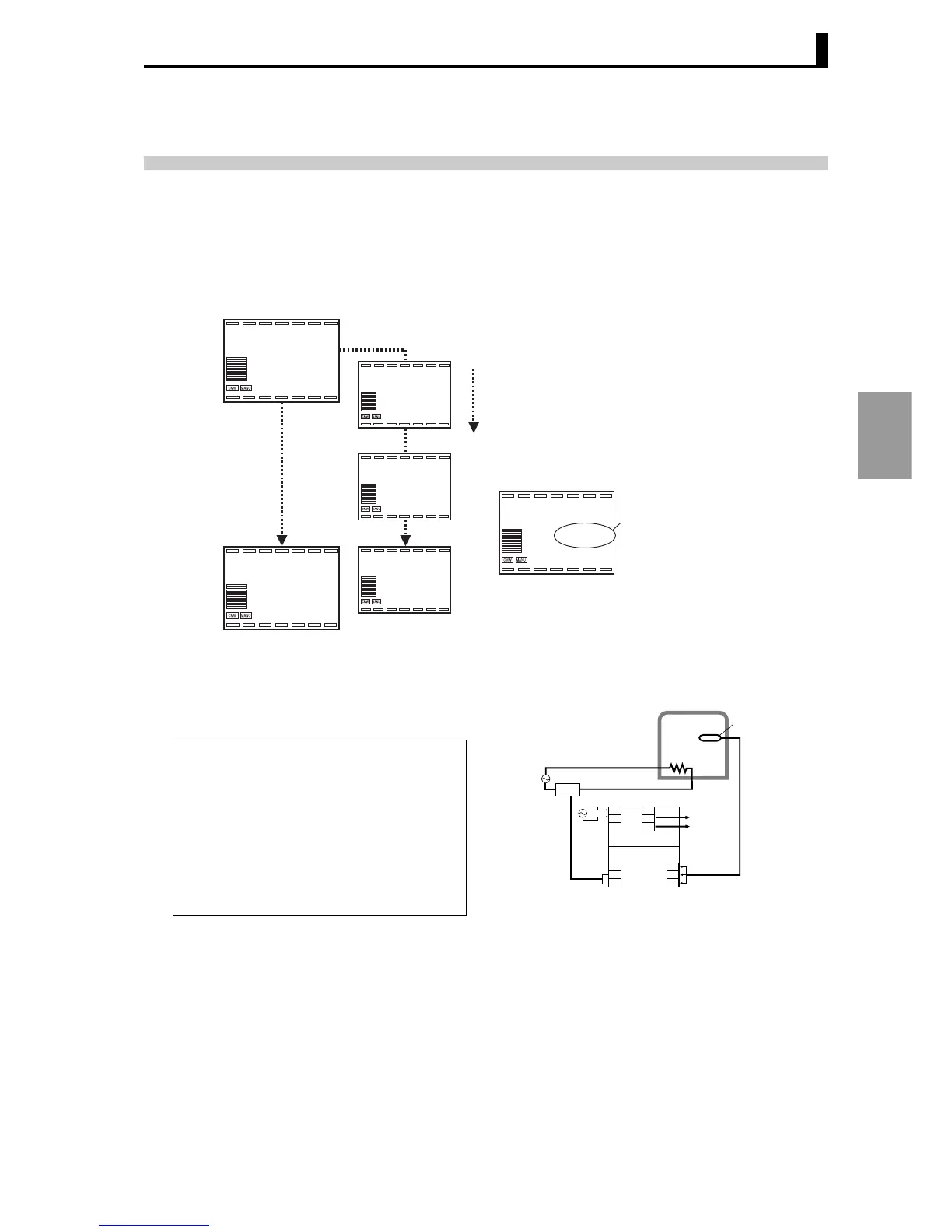

4.3 Initial setting examples
4-5
Settings Required
for Basic Control
4.3 Initial setting examples
This section explains how to configure the initial settings for the sensor input type, alarm type, control
period, and other parameters. Use the L key and M key to move through the display screens. The desti-
nation screen will vary depending on how long each key is held down.
● Typical example
● Typical example
mode
0
l.1
25
4100.0
0.0
sl-h
4100.0
l.1
sl-l
0.0
l.1
mode
0
l.1
o1-t
0
l.1
The numeric data and
selections in each screen
can be changed with the
UD keys.
M
The dotted line arrow shown on the left indicates
that more setting data follows.
Press the mode key several times to switch to
the desired setting data.
M
M
Changing setting data
Changing numeric values
M
E5AR-Q4B
Input type: 0 Pt100 (-200.0 to 850.0
°C)
Control method: PID control
Control output: Pulse voltage output
Alarm 1 type: 2 upper-limit
Alarm value 1: 5.0°C (a deviation is set)
Alarm 2 type: 8 absolute-value upper-limit
Alarm value 2: 200.0°C
PID: Obtained by AT (auto tuning)
SP: 150.0
°C
SSR
COM
SUB1
SUB2
OUT1
IN1
Temperature sensor:
Pt100
Control object
Voltage output: 12 V DC
Alarm 1
Alarm 2
To Next Page
