3.1 Standard control
3-3
Typical Control
Examples
■ Settings
Set the control period to 0.2 sec for high-precision temperature control
with the SSR.
Related setting data and settings are as follows.
Input 1 type switch = TC. PT (initial setting)
Input 1 input type = 1: Pt100 -150.00 to 150.00°C
Output 1 output type = 0: Pulse voltage output (initial setting)
Control mode = 0: Control mode (initial setting)
Action = or-r: Reverse action (initial setting)
SP = 115.00(°C)
Control period (heat) = 0.2
The following explains how to set the input type, the output type of
output 1, the SP, and the control period (heat), and how to check the
control mode.

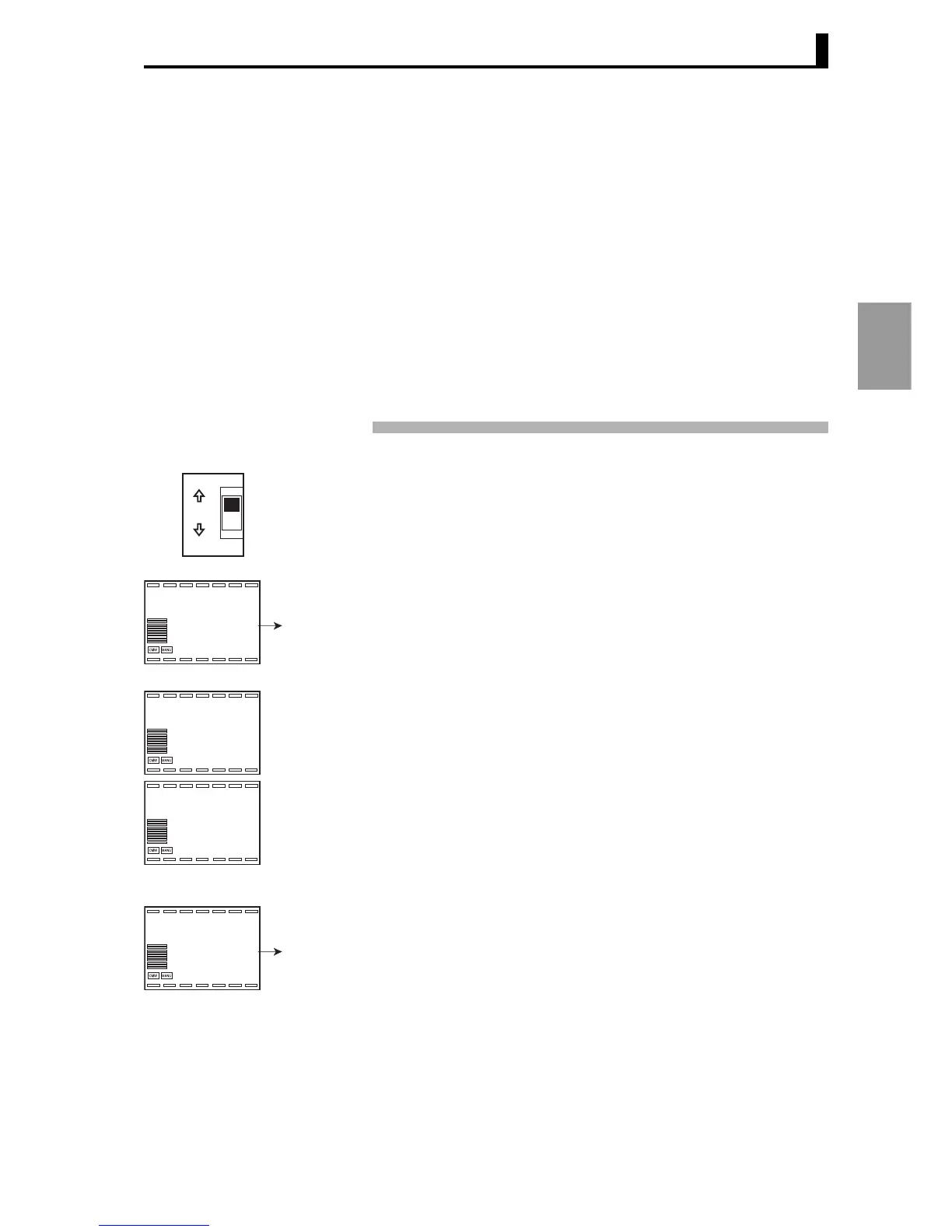

1. Before turning on the power, check that the input 1 type switch is set to TC.
PT.
2. Turn on the power and then hold down the L key at least 3 seconds to
move from "RUN level" to "Input initial setting level". "i1-t: Input 1 input
type" will appear. Press the D key to select the setting "1: Pt100 -150.00 to
150.00°C".
3. Press the L key less than 1 second to move from "Input initial setting
level" to "Control initial setting level". "o1-t: Output 1 Output type" will
appear. Check sure that the set value is "0: Pulse voltage output".
4. Press the M repeatedly to select "mode: Control mode". Check that the
setting is "0: Standard control".
5. Hold down the L for at least 1 second to return to "RUN level"."PV/SP/
MV" will appear. Press the U key and set the SP to "115.00".
TC.PT
ANALOG
IN1
TYPE
Input 1 type switch
i1-t
2
l.0
Input initial setting level
Input 1 type
1
D
o1-t
l.1
Control initial setting level
Output 1
Output type
0
mode
0
l.1
Control mode
23.00
0.00
0.0
RUN level
Present value
(
PV
)
/ SP /
MV
115.00
U
