Section 1 Overview
1-8
Overview

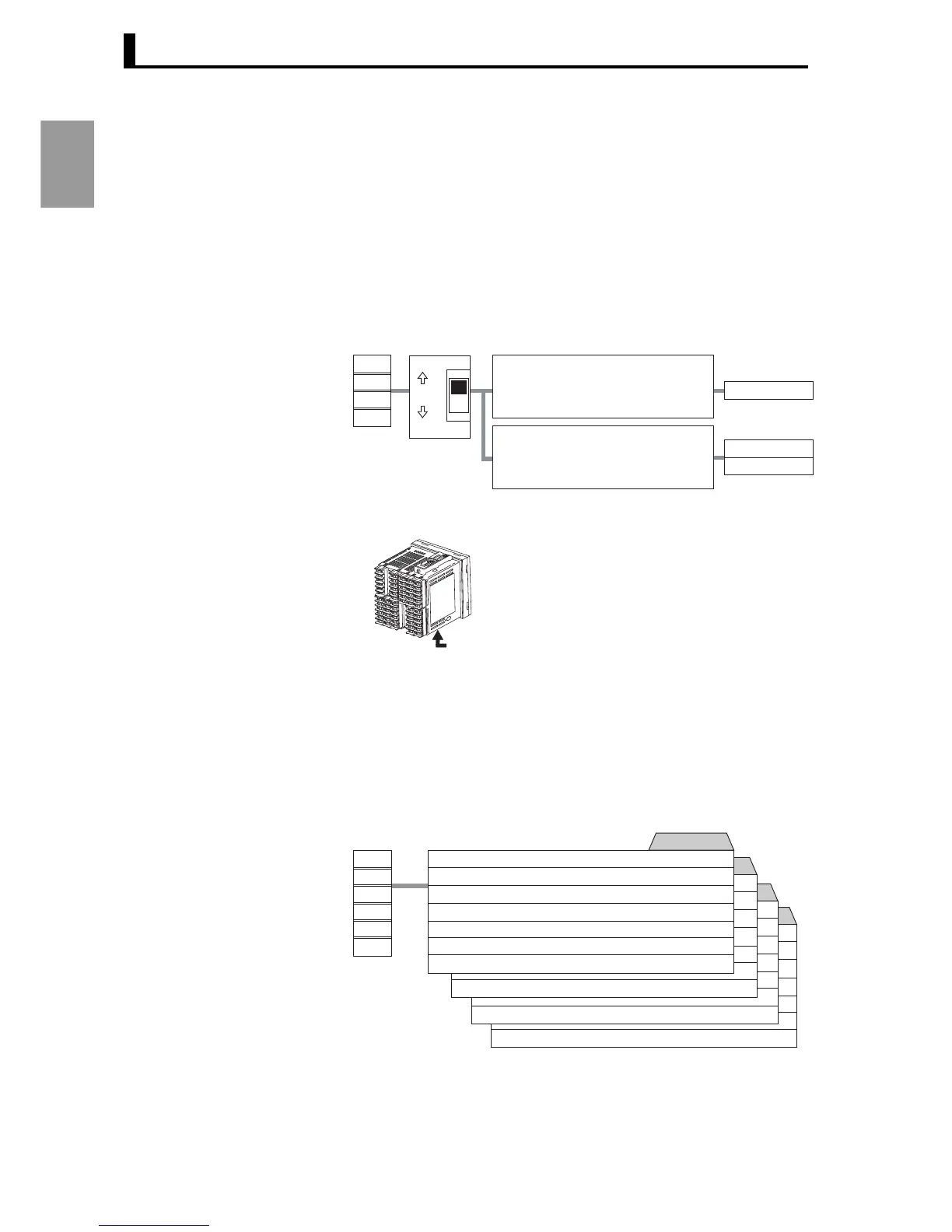

■ Main functions
● Input After selecting the temperature input (TC: thermocouple or PT: resis-
tance temperature input sensor) or analog input (current input or
voltage input), with the input type switch select the input type in
parameter setting.
If the input type SW is set to temperature input (resistance temper-
ature input sensor or thermocouple), the temperature unit can be set.
If the input type SW is set to analog input (current input or voltage
input), scaling and the decimal point position can be set.
Location of input type switch
● Event input
assignment
An operation command can be assigned to each event input. If event
input is to be used, use an E5AR/ER-@@B/D.
In the case of a multi-point input type, assignment data can be set for
channels 2 and higher as needed for the number of channels.
The operation instruction "Write via communication OFF/ON" is
common to all channels
Temperature units
Scaling
Decimal point position
IN1
IN2
IN3
IN4
Input type SW
Input type
Temperature input
Resistance temperature input sensor: Pt 100
Thermocouples: K, J, T, E, L, U, N, R, S, B, W
Analog input
Current input: 4 to 20 mA, 0 to 20 mA
Voltage input: 1 to 5 V, 0 to 5 V, 0 to 10 V
TC.PT
IN1
TYPE
ANALOG
Input
Input type SW (bottom)
Channel 2
Channel 3
Channel 4
Communication write OFF/ON
Channel 1 Bank No. (bit 0)
Channel 1 Bank No. (bit 1)
Channel 1 Bank No. (bit 2)
Channel 1 Run/Stop
Channel 1 Auto/Manual
Communication write OFF/ON
Channel 1 Bank No. (bit 0)
Channel 1 Bank No. (bit 1)
Channel 1 Bank No. (bit 2)
Channel 1 Run/Stop
Channel 1 Auto/Manual
Channel 2SP mode (remote/local)
Communication write OFF/ON
Channel 1 Bank No. (bit 0)
Channel 1 Bank No. (bit 1)
Channel 1 Bank No. (bit 2)
Channel 1 Run/Stop
Channel 1 Auto/Manual
EV1
EV2
EV3
EV4
EV5
EV6
Event
Input Event input assignment
Write via communication OFF/ON
Channel 1 Bank No. (bit 0)
Channel 1 Bank No. (bit 1)
Channel 1 Bank No. (bit 2)
Channel 1 Run/Stop
Channel 1 Auto/Manual
Channel 1 SP mode (remote/local)
Channel 1
