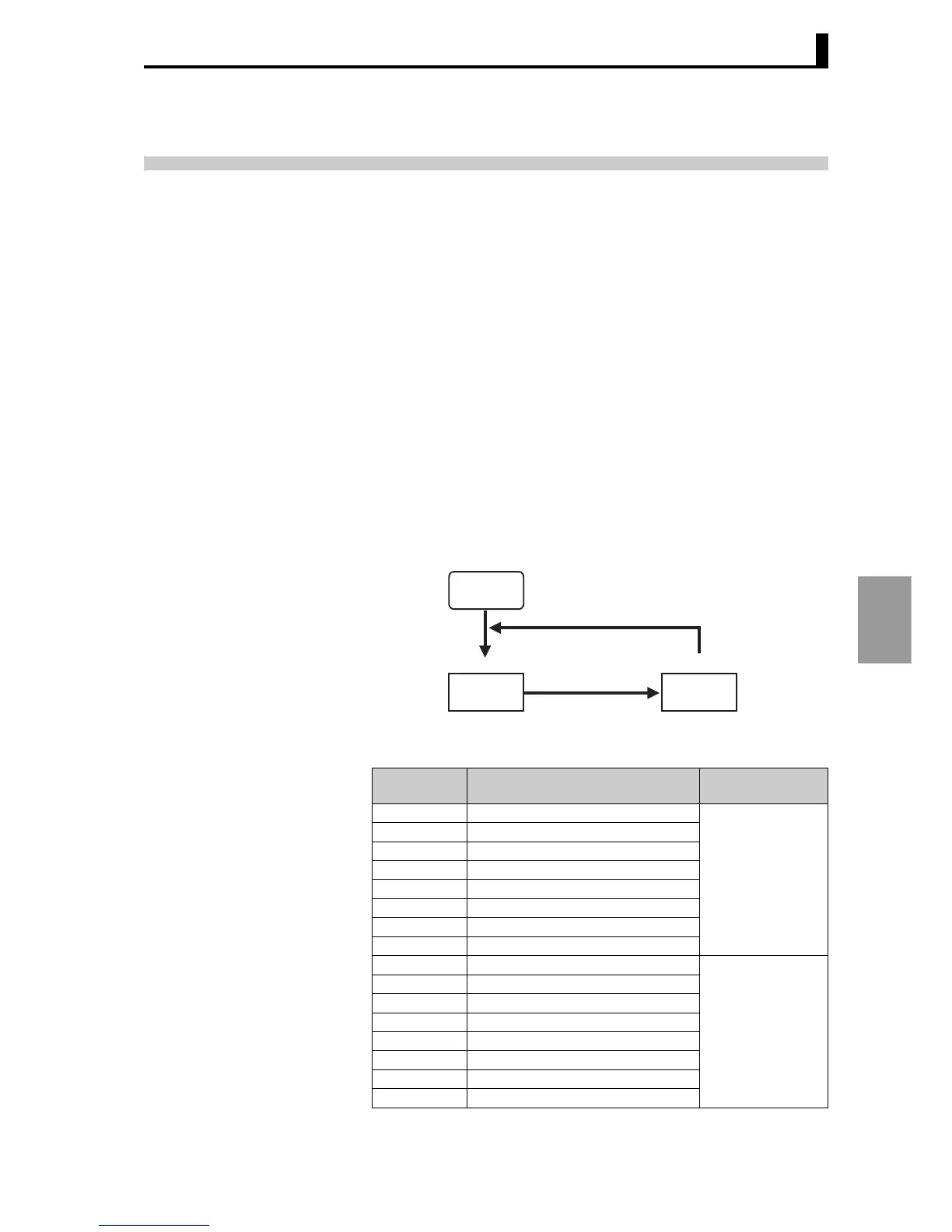

6.8 Setting areas
6-13
Communication
(CompoWay/F)
6.8 Setting areas
The E5AR/ER has two setting areas for communication: Setting area 0
and setting area 1.
In setting area 0, control continues.
As such, setting area 0 makes it possible to perform operations that
require control to be in progress, such as reading the PV, writing an
SP, and run/stop, as well as operations that do not interfere with
control. On the other hand, operations that may change control such
as writing initial setting data cannot be performed. (Note that setting
data that cannot be written can still be read.)
In setting area 1, control is stopped.
This makes it possible to perform operations such as writing initial
setting data which are not possible in setting area 0.
When the power is turned on, setting area 0 is selected. To access
setting area 1, use the "Move to setting area 1" operation command.
To return to setting area 0 from setting area 1, turn off the power or
use the "Software reset" operation command.
Variable
type
Description Area
C4 Communication monitor
Setting area 0
(During control)
C5 Protect level
C6 RUN level
C7 Adjustment level
C8 Adjustment level 2
C9 Bank setting level
CA PID setting level
CB Approximation setting level
CC Input initial setting level
Setting area 1
(Control stop)
CD Control initial setting level
CE Control initial setting 2 level
CF Alarm setting level
D0 Display adjustment level
D1 Communications setting level
D2 Special function setting level
D3 Expansion control setting level
Power on
Setting area 0
"Software reset" instruction
"Move to setting
area 1" instruction
Control in progress
Setting area 1
Control stop
