Section 1 Overview
1-4
Overview
1.2 Part Names and Functions

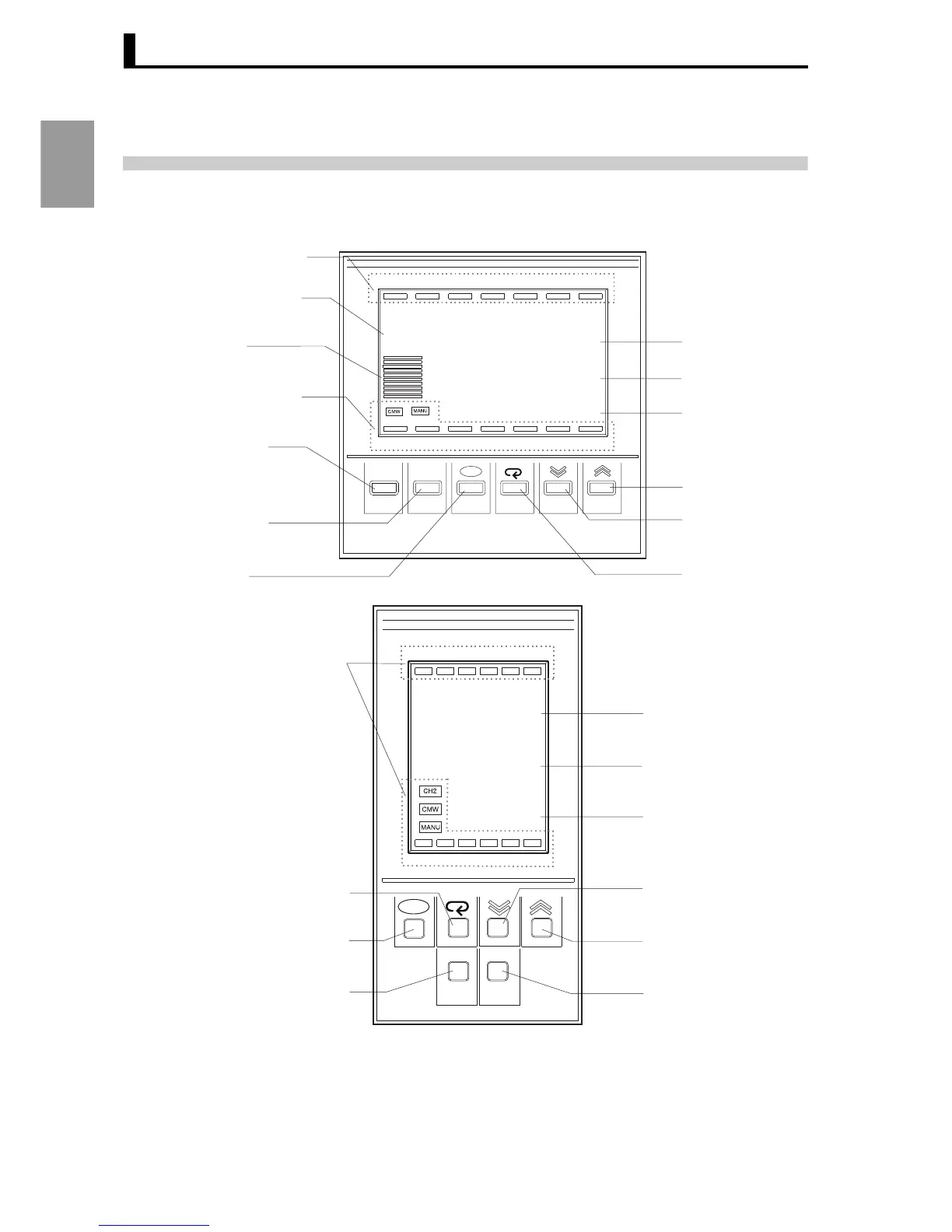

■ Front
SUB1 SUB2 SUB3 SUB4
PV
SV
MV
OUT1 OUT2
OUT3 OUT4 STOP RSP
8
8.8.8.8.8
8.8.8.8.8
8.8.8.8
A/M
CH
Operation indicator
Channel indication
Bar graph
Indicator 1
Indicator 3
Indicator 2
Up key
Down key
Mode key
Operation indicator
Function key 1
Auto/Manual key
Function key 2
Channel key
Level key
E5AR
PF1 PF2/CH
E
5
ER
8.8.8.8.8
8.8.8.8.8
8.8.8.8
SUB1
SUB2
SUB3 SUB4
PV
SV
MV
OUT1 OUT2
STOP
RSP
A/M
PF1 PF2/CH
Operation indicator
Indicator 1
Indicator 3
Indicator 2
Up key
Down key
Mode key
Function key 1
Auto/Manual key
Function key 2
Channel key
Level key
